Babicz Full Contact Hardware 3 point bass bridge for Epiphone chrome

The patented Babicz FCH 3-Point four string bass bridge is a direct drop-in replacement upgrade for EPIPHONE 3-Point bass bridges (With Existing M8 Shoulder Body Inserts). The Babicz patented double locking eCAM saddle offers full contact to the instruments body...improving tonality and sustain. Intonation and individual string height adjustments are a breeze.
*String lefty or righty*
Features:

• Drop-in upgrade for Epiphone 3-Point bridges
• Fits Epiphone SG, Thunderbird, and other Epi bass models with existing shoulder body inserts
• Individual string height adjustment
• Patented Babicz eCAM saddle system
• Double locking Original Series design
• Quick string release
• Improved string stability, tonality and sustain

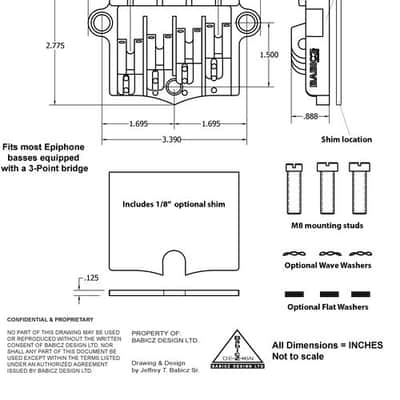

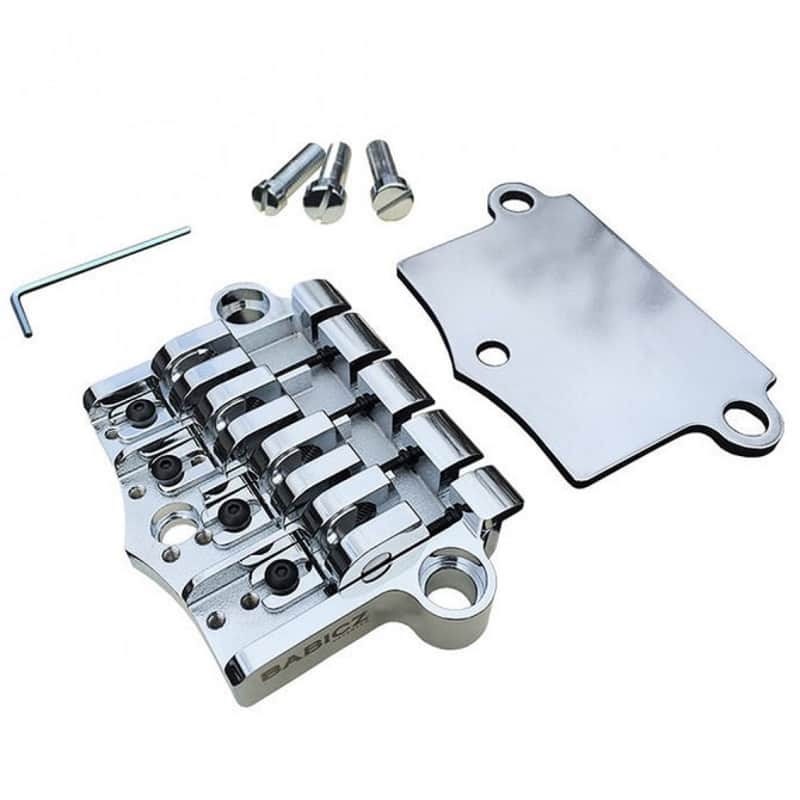

• Includes bridge, mounting studs, washers, 2mm wrench, and instructions. Optional shim plate, wave and flat washers also included
•  Weight: 5.8 oz.

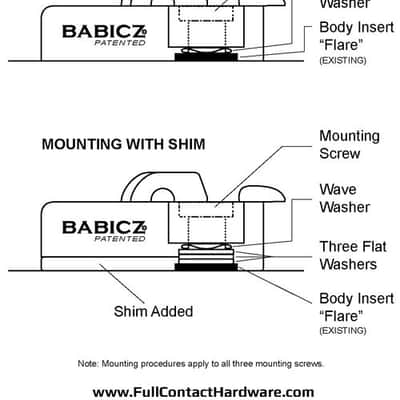

Installation Note: Sometimes, due to plating build up on the threads, one may need to chase the threads on the body inserts with a M8 x 1.25P tap.

Installing Metal Body Inserts  You only get one try at this! Above, measuring the diameter of a threaded body insert using a Dial Caliper What size drill bit should I use to drill holes in my guitar for the included metal body inserts?  Some Babicz Full Contact Hardware bridges, tremolos, and tailpieces include metal body inserts. These threaded body inserts are installed in a guitar or bass body, and are used to mount the bridge via the included mounting posts.
People often ask, what is the best drill bit size for installing these inserts? In our experience, there is no exact size to recommend for every installation project.
It all depends on the density of the guitar body wood. For example, Rock Maple, Mahogany, Basswood, Ash, and Pine are common body woods for guitar, and all have dramatically different densities and toughness. One drill bit size does not apply to all body woods.
To find the correct size we HIGHLY recommend measuring the diameter of the body inserts with a Caliper, or Micrometer, then performing a "test" hole in similar scrap wood to check the insert fit. The drill size should be slightly smaller than the diameter of the body insert, and should be tapped in with a plastic mallet with medium pressure. If installed correctly, gluing-in the inserts is unnecessary.   Note: The same procedure above applies when installing String Ferrules to a new build
