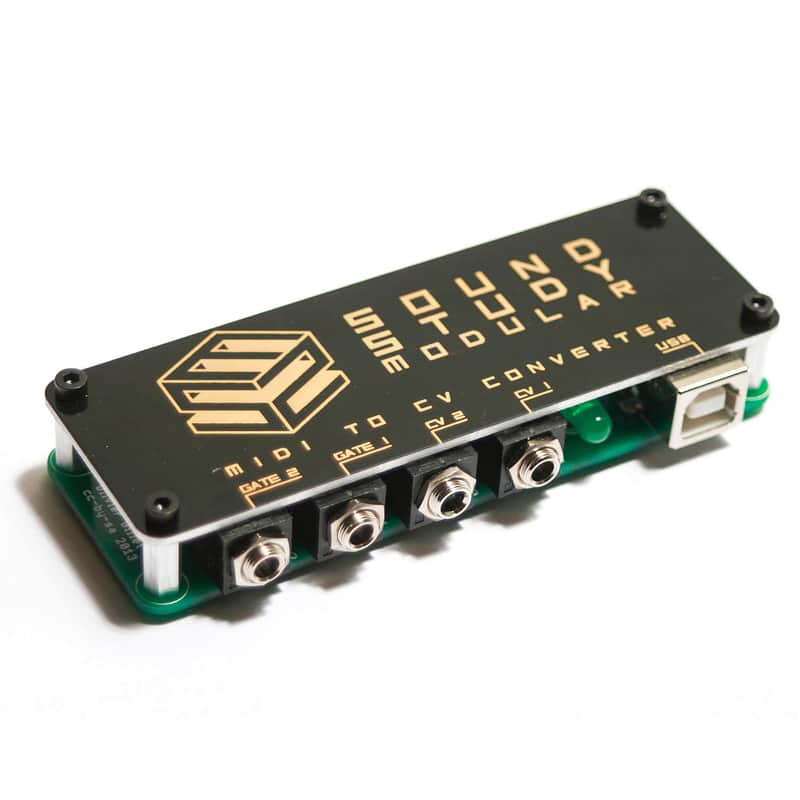

The Sound Study Modular Midi 2 CV is a 4hp USB MIDI to CV and Gate converter. It has a bunch of different modes that it can operate on, like monophonic, duo monophonic, and many more!
Compatibility:
- The Midi 2 CV is class-compliant but uses an unusual USB setting (1ms poll-rate in low-speed mode) not well supported on Windows.
- Optimal latency is obtained with OS X >= 10.6.3 ; iOS ; or Linux >= 2.6.
- On other systems, the Midi 2 CV will work but messages will be delayed by up to 8ms.
- Monophonic with velocity
- Monophonic with velocity and square oscillator
- Dual monophonic
- Duophonic
- CC conversion
- Monophonic with CC
- Quad triggers
- Quad gates
- Monophonic CV with MIDI clock output
Range and standards:
- CV outputs: 0 to 4V, V/Oct (4 octaves).
- Gate outputs: Positive V-trig, ON = 5V ; OFF = 0V.
Performance:
- Resolution: < 2mV.
- 8 points calibration curve for non-linearity compensation.
- Temperature dependency: +/- 2 cents within the 10° C to 80° C range.
- Output impedance: 220Ω (rule of thumb: 2 cents drop per connection to a CV input).
Power supply:
USB-bus powered, current draw < 20mA.
