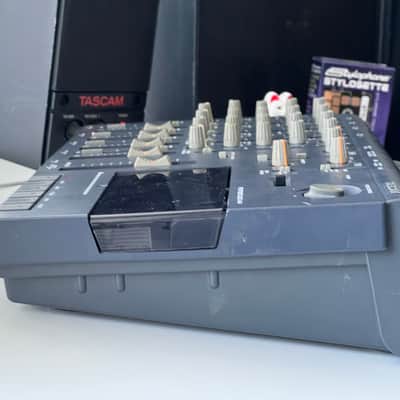

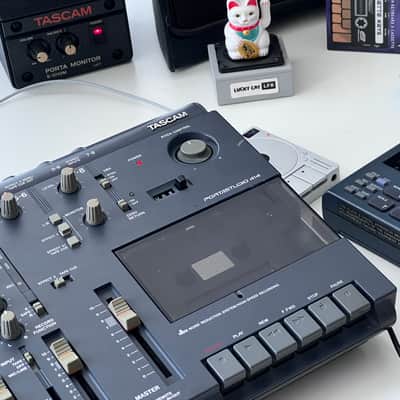

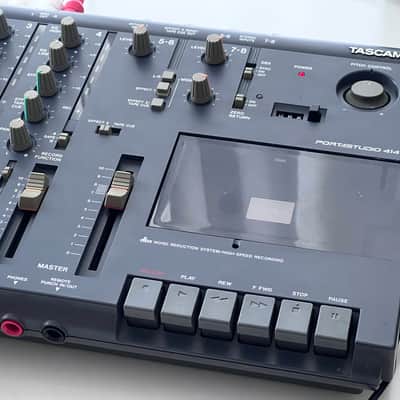

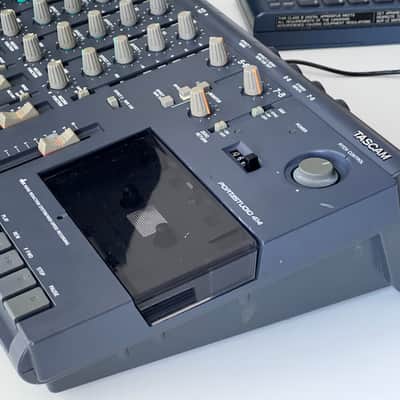

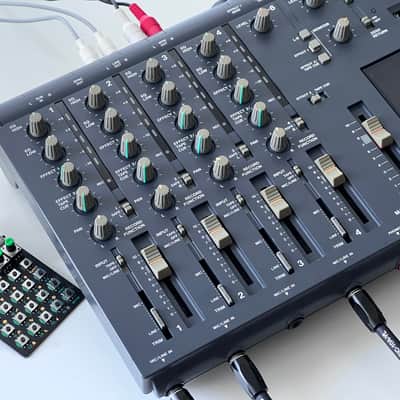

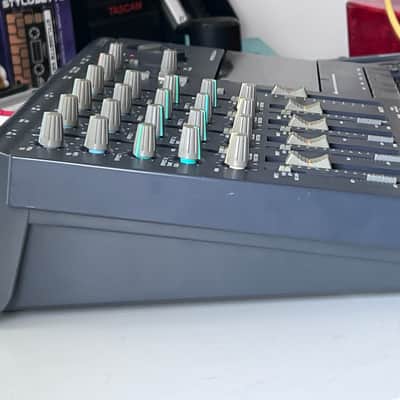

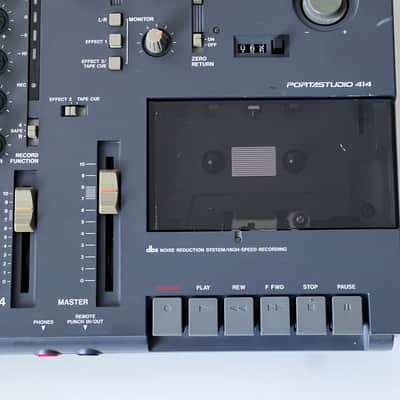

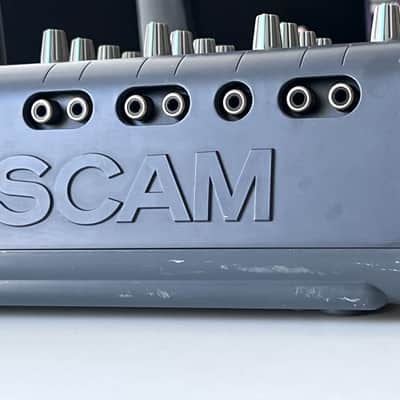

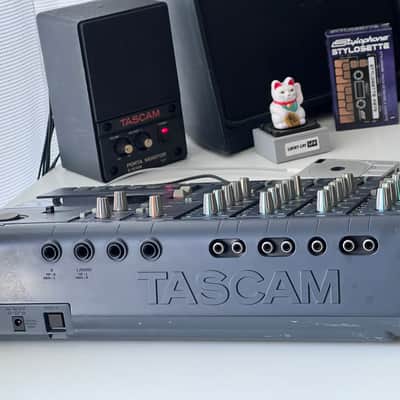

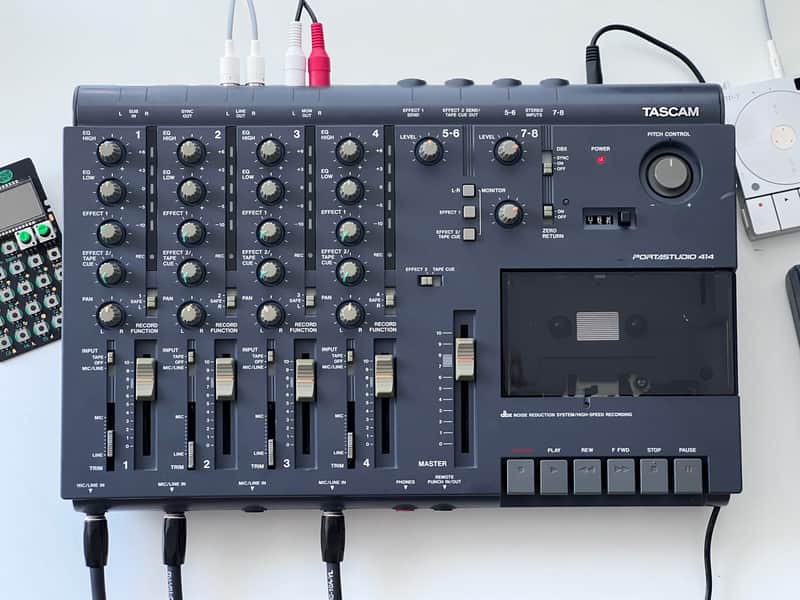

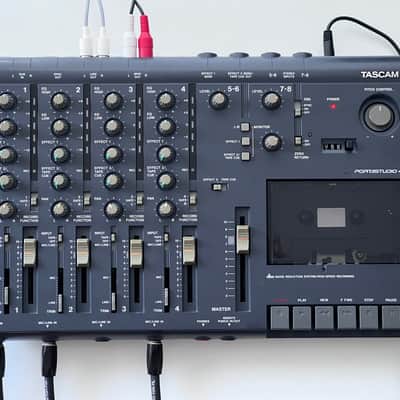

We have completed servicing, calibrating, and testing this TASCAM 414 MKI. A full service has been done to it (belts, inputs/outputs, calibration, see below for more details), and it's been fully tested and is working great. We removed all the knobs and fader covers and cleaned them in the ultrasonic cleaner, and also cleaned the front and back panels in the sink. That said, there is some really stubborn sticker/tape residue that we could not get off, and we chose not to use more abrasive chemicals or scraping. This unit is cosmetically not in mint condition, but it works and sounds great.

Repairs:

These were need to bring the item back to functioning condition, before performing maintenance.

• There was an issue with spring in the transport which had become dislodged. This was adjusted to fix a transport mechanical issue.

• All RCA and 1/4" input/output jacks have had their solder reflowed to prevent shoddy connections.

• After doing the maintenance and testing, we found that the channel 4 input select switch was still not operating perfectly. It would sometimes make a weak connection causing the signal to cut in/out. We replaced the channel 4 switch. In our testing channels 1, 2, and 3 worked perfectly.

Maintenance:

With many vintage 4-track recorders approaching 40 years of age, they need to be maintained to continue to work properly. First and foremost the rubber belts need to be replaced, but there are many other things that can keep the 4-track running well.

• Clean and demagnetize tape heads

• Replace belts with low wow/flutter belts

• Oil capstan bearing with high quality German oil. It greatly improves wow/flutter

• Clean all input and output jacks with Deoxit on a cue tip. No messy spraying.

• Clean all potentiometers and faders with contact cleaner

• Check for and fix broken or weak solder joints. It is common for 1/4" input jacks, RCA jacks, and power jacks to have their solder crack from strain. We check for this and fix it when needed.

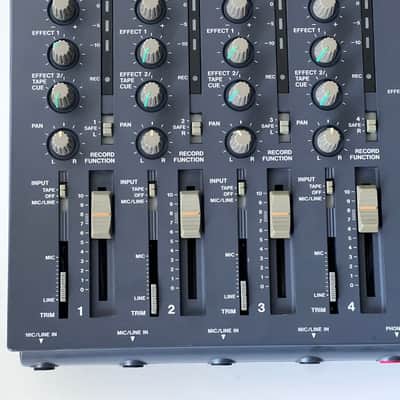

• A common issue with TASCAM 414’s and 424’s is the INPUT and record-select slide switches become dirty and do not work properly. When this happens, the signal can cut in out and out in playback or recording. We make it a point to disassemble the mixer and thoroughly clean these switches multiple times with contact cleaner, and then Deoxit concentrate before reassembly.

Calibration:

Aside from calibrating the tape speed which is required after changing belts, often the rest of the calibrations are fine from the factory, but we check them and make tweaks when necessary.

• Calibrate tape speed(s)

• Check/calibrate the Azimuth

• Check/calibrate the playback level for even playback

• Check/calibrate the record level for even recording

Cleaning:

We also take pride in restoring the cosmetic condition of the units we work on. Note that in some cases there are stubborn marks that we leave. Rather than scrub them away with a harsh cleaner which can damage the original finish or patina and leave the unit looking spotty.

• All knob and fader caps were cleaned with an ultrasonic cleaner.

• In some cases when the faceplate is removed we clean it in the sink with soap and water and dry it completely before reassembly.

Quality Assurance:


We also do a thorough QA of all our units. This process includes hooking the unit up to a vintage Hammond drum machine, Nord organ, and various other gear. We then record music on all 4 channels, and test all the functionality that would be used when recording music. It only gets listed once it has been tested this way. If any issues are found, we fix the issues before listing. This ensures that the unit is functioning as it should without a doubt!

Other notes:

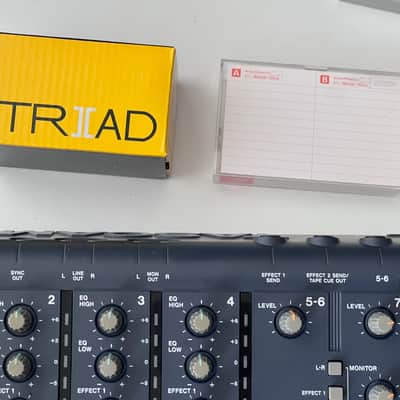

• It comes with a new power supply and bulk-erased vintage tape. Vintage tapes are the best in our experience.

• Free USPS ground shipping. Will usually ship same day.

Need your 4-track serviced? Reach out to us via direct message or our website for availability and rates. We are located in San Francisco, CA. See our website functional.fyi for more info.
