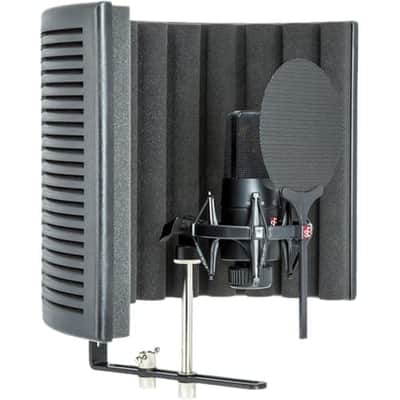

PreSonus Studio 1824 - 18x18 USB 2.0 Audio Interface and sE Electronics X1 S Studio Bundle - Vocal Recording Package with Reflection Filter

PreSonus Studio 1824 Overview The Presonus Studio 1824 is a USB 2.0 audio/MIDI interface capable of recording up to 18 simultaneous inputs at up to 24-bit / 192 kHz and offers XMAX Class-A preamps, ADAT I/O, and S/PDIF I/O. Its 18 outputs offer flexible routing with zero-latency DSP-based monitor mixing and control-room integration with the included Studio One Artist for Mac and Windows, and UC Surface for Mac, Windows, iPad, and Android. The interface features a mute button, a mono button, two headphone outputs with independent mix streams, a BNC wordclock output, and MIDI I/O via a breakout cable.

• Input/Output
  • Simultaneous I/O up to 18 inputs/18 outputs (8x8) at 192 kHz)
  • 2 mic/instrument/line inputs with XMAX Class A mic preamps
  • 6mic/line inputs with XMAX Class A mic preamps
  • 8 channels of ADAT Optical input (4 channels at 96 kHz)
  • Two balanced 1/4" TRS main outputs
    • DC coupled for sending control voltages
  • 8 balanced 1/4" TRS line outputs for monitor mixing
    • DC coupled for sending control voltages
  • 2 stereo headphone outputs with the same mix or independent mixes
  • MIDI in/out
  • Stereo S/PDIF digital I/O
  • 1 USB 2.0 port
  • BNC word clock output
• Integrated Software
  • Studio One Artist for Mac and Windows
  • UC Surface control software for Mac, Windows, iPad, and Android
• Meters, Controls, and Features
  • 18x8 on-board DSP monitor mixer
  • Front-panel level controls for main outputs
  • Mono and Mute buttons for the main outputs
  • True +48V phantom power for condenser microphones (global)
  • 10 ladder-style, 8-LED level meters, (8 input, 2 main outputs)
• Digital
  • 24-bit resolution
  • 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
• Physical
  1RU rack-mountable
  • Road-rugged construction with all-metal chassis and metal knobs
