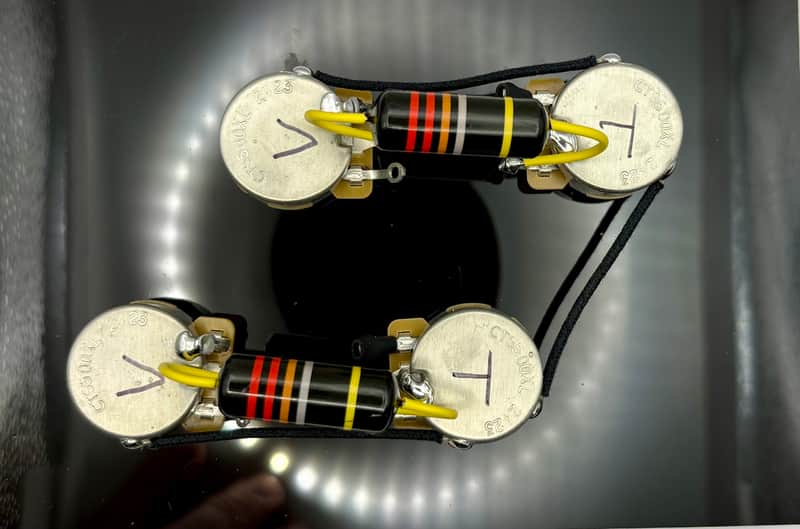

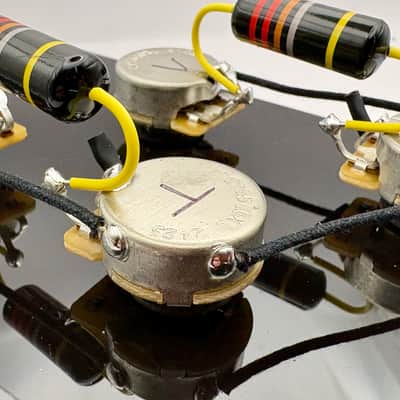

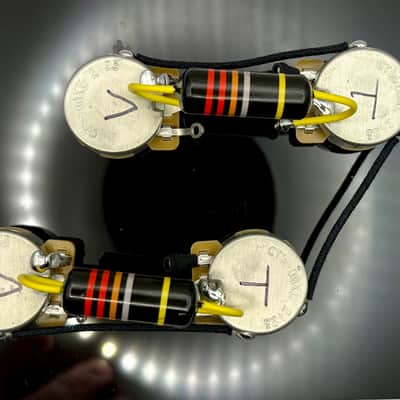

Gibson Les Paul 50s style wiring harness with Bumblebee 0.022uF paper in oil capacitors and matched set CTS split long shaft 550k pots 5% +/- tolerance

Premium hand-wired to order using quality parts. This matched potentiometer harness is for Les Paul's that were manufactured using long shaft potentiometers. For individuals that want true tone from the 1950's and 1960's using premium components which are not found in guitars manufactured today.

Upgrading to a matched set 550k pots with a 5% tolerance in your Gibson Les Paul provides two primary benefits: a guarantee of reaching at least the 500k resistance threshold for a brighter tone and significantly improved consistency across all four controls.

• Guaranteed Brightness: Standard 500k pots often have a 20% tolerance, meaning they can measure as low as 400k. A 400k pot will make humbuckers sound darker or "muddy". Using 550k pots ensures that even at the bottom of a 10% or 5% tolerance window, you are still at or above 500k, preserving the high-end clarity of your pickups.
• Tight Tolerance (±5%): High-quality pots like those from CTS with a 5% tolerance mean your pots will measure between 522.5k and 577.5k. This precision ensures that your bridge and neck pickups respond predictably and that your volume/tone sweeps feel identical across all four knobs.
• Tone Loading: Potentiometers act as a load on your pickups even when turned to 10. Higher resistance (550k vs. 500k or the stock 300k found in some Gibsons) reduces the amount of high-frequency signal bled to ground, resulting in a more "open" and harmonically rich sound.

What’s in your new premium 1950s style Les Paul wiring harness:

• 1950’s style wiring for a vintage tone

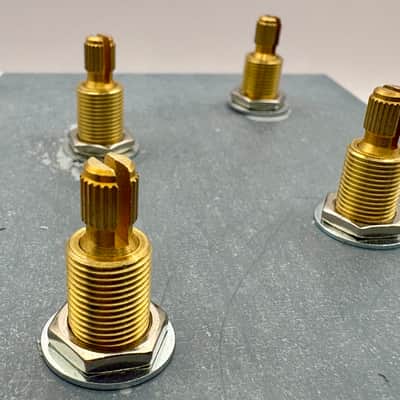

• (4) Matched set CTS 550k potentiometers with a 5% +/- tolerance split long shaft audio taper

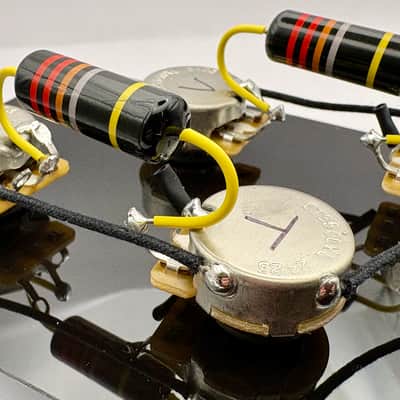

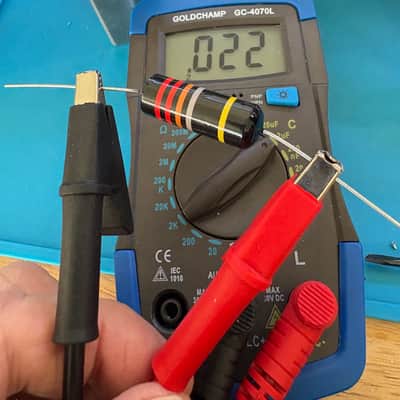

• (2) new 0.022uF Centralab Bumblebee paper in oil capacitors
• Gavitt 22awg vintage cloth push back wire for all the potentiometer and ground connections

*** 50's wiring diagram included
