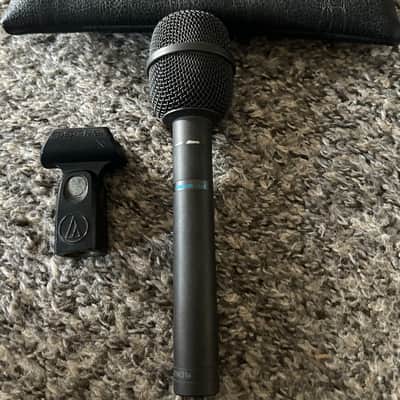

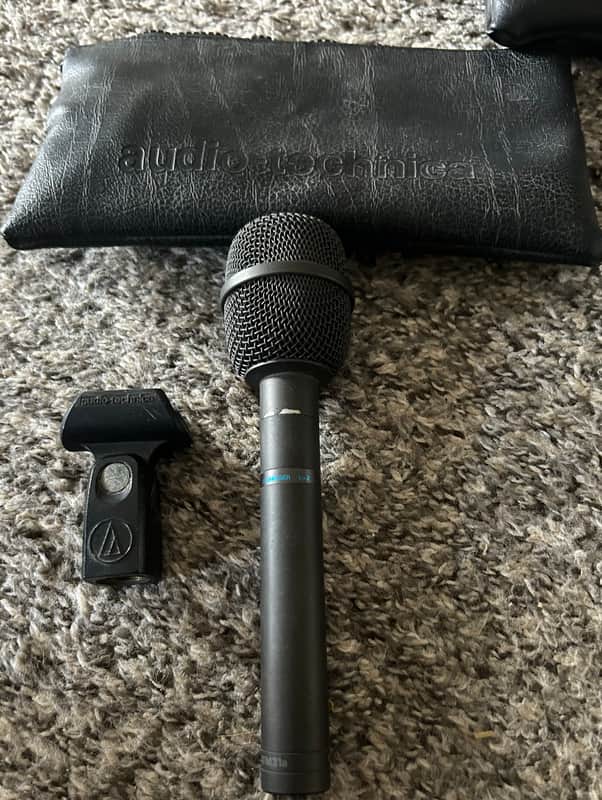

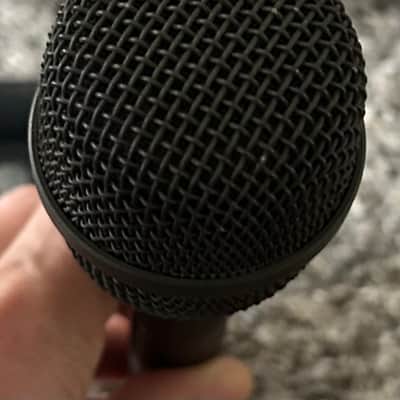

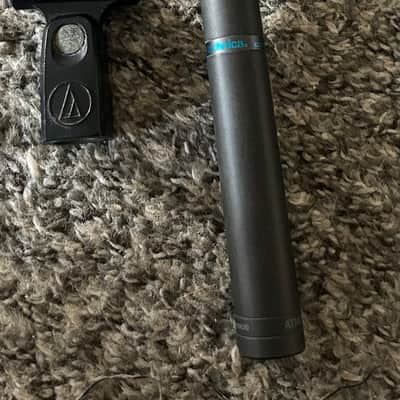

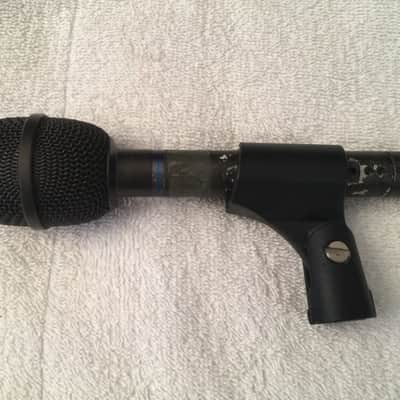

Audio-Technica ATM31 Handheld Small Diaphragm Cardioid Condenser Microphone 1990s - Black
Free Shipping
from Little Rock, AR
Our users rate Reverb
Mic TypeCardioid Condenser MicrophonePolar Pattern(s)Cardioid
Pricing & AvailabilityMSRP$250StreetAvailabilityDiscontinuedPhysical CharacteristicsWeight200g / 7.05ozLength193mm / 7.60''Diameter50mm / 1.97''Interface(s)3-pin XLR male (1)
Electrical CharacteristicsImpedance200 ΩMax SPL137 dBSelf-noise14.0 dB(A)Transducer CharacteristicsTypeCondenserCapsule diameter0mmDiaphragm diam.0mmDiaph. thickness0 micronsFrequency Chart(s)Frequency Response - CardioidDescription
The ATM31a is a cardioid condenser mic with an electret capsule. It was presented as an all-purpose studio or field microphone, and could be powered via phantom power or an AA/UM3 battery.
Note that the specs change if you run the mic from a battery rather than phantom power. Using a battery:
- Impedance changes from 200 ohms to 270 ohms
- Dynamic range drops from 113 dB to 99 dB
- Sensitivity changes from -44dB (6.3 mV) to -45dB (5.6 mV)
The ATM31a is a revision to the original ATM31 (circa 1981). The newer model has a wider frequency response, higher sensitivity, and can be used with phantom power (meaning, the battery is not required). The published polar and frequency-response graphs are different, but Audio-Technica has not described the changes made to the mic’s components.
Reverb Buyer Protection
Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.
| Listed | 3 days ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
| Microphone Type |
|
| Wired/Wireless |
|
| Electronics |
|
| Polar Pattern |
|
