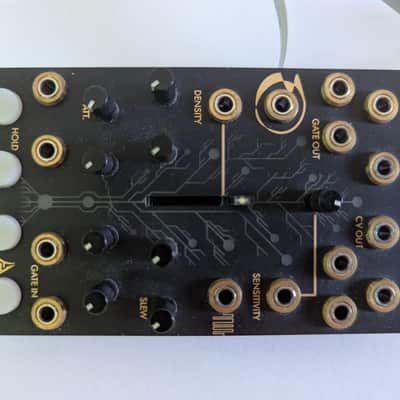

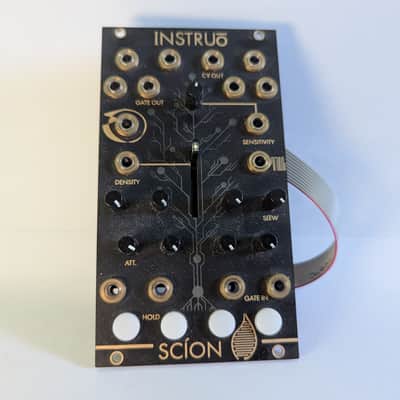

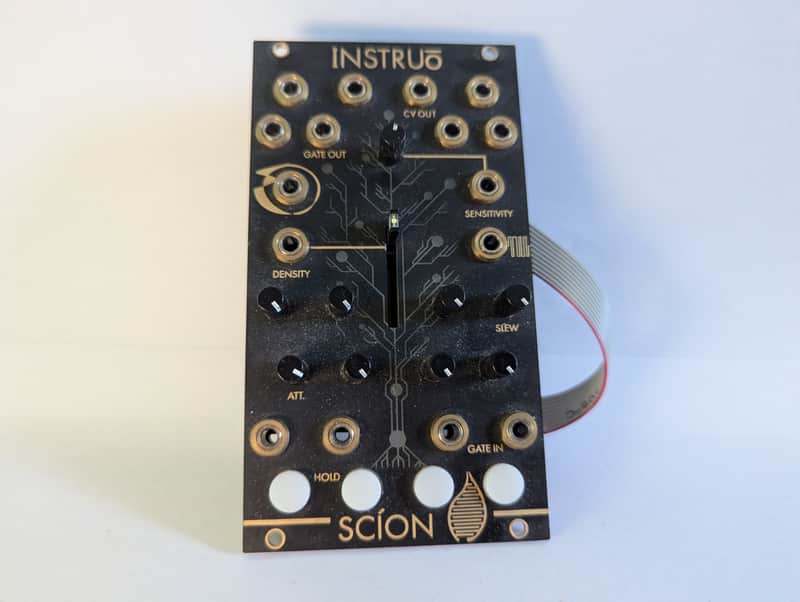

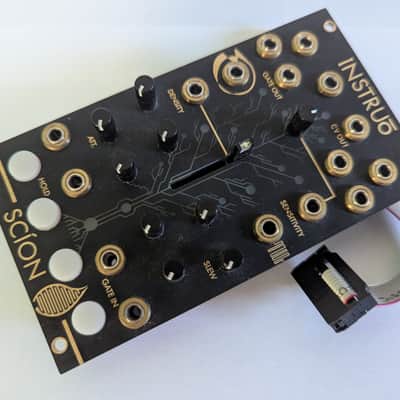

The SCÍON is a biofeedback sensor built into a quad random voltage generator.It translates biofeedback data, sourced from contact with organic surfaces, into musically useful control signals. Tiny fluctuations in surface conductance on organic materials stimulate control voltage and gate signal changes that can be used to modulate and permutate your patch. Dynamic control over biofeedback sensitivity allows you to quickly adapt any input source to a useful range of responsiveness.
Apply the sensor pads to your house plants, your own skin. When no sensor cables are used simply touching the capacitive Leaf electrode with your finger will create random voltages derived from life itself.
Size:
- 14HP
- Depth: 27mm
Power:
- +12V: 70mA
- –12V: 10mA
Features:
- Gold touch plate for direct interface with bio-feedback sensor
- Four 0-5V CV outputs with independent attenuators and slew controls
- Four Gate outputs
- Four Gate inputs for triggering ratcheted subdivisions or S&H style clocking
- Four Hold buttons to freeze each channels current state
- CV controllable SENSITIVITY (0-5V range)
- CV controllable note DENSITY (0-5V range)
What's included:
- The module itself + power cable
What's NOT included:
- Touch pads
