WEIGHT: 7.98 pounds

The Ernie Ball Music Man StingRay HT guitar is the newest edition to the ever-growing family of Ernie Ball Music Man instruments. Featuring the familiar shape and feel of previous StingRay guitar models, the StingRay HT showcases new custom Music Man pickup technology inspired by over a decade of guitar string research delivering an incredibly dynamic and responsive playing experience. The pickups are able to achieve an ultra-high-output, powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels. The StingRay HT (Heat Treated) bridge pickup utilizes patent-pending heat-treated pole pieces with a large ceramic magnet and an overwound coil that gives the pickup higher frequency harmonics and excellent touch sensitivity. The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the StingRay's HT bridge pickup. In addition, the electronics package includes a push-push adjustable 20dB boost function and a transparent buffered output for complete tonal consistency wherever your volume control is set. This StingRay HT is outfitted with a stop tail Tune-o-Matic bridge which sets it apart from the StingRay's vintage style tremolo but shares a number of the standard specifications, including a contoured body, a roasted figured maple neck, 22 stainless frets, and Schaller locking tuners.

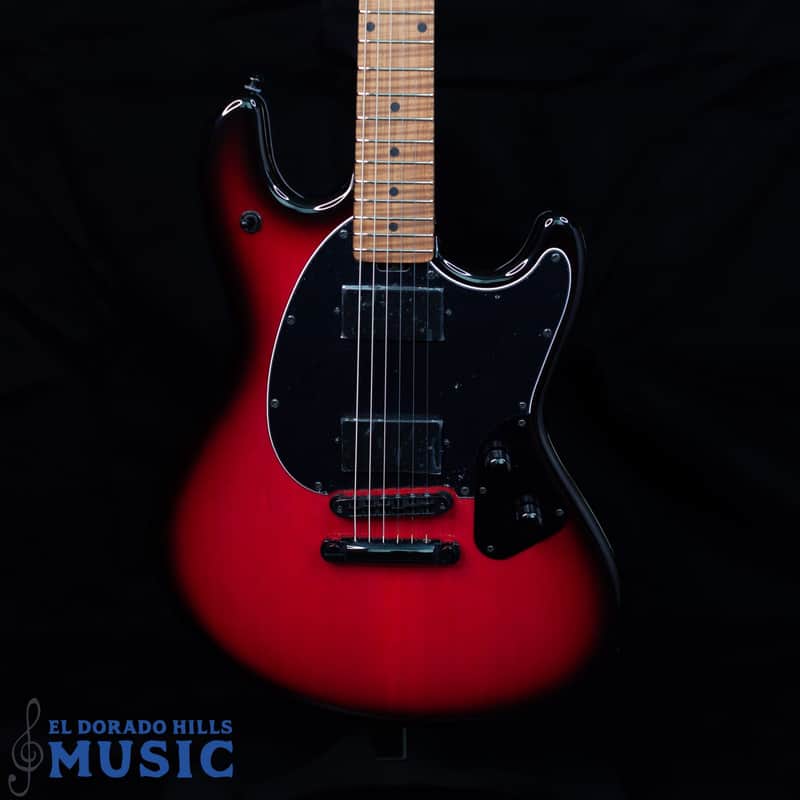

Model: StingRay HT Guitar Color: Raspberry Burst Neck: Figured Roasted Maple w/Maple Fretboard Pickguard: Black Hardware: Matte Black
Build Code 424-PT-R1-01 The Stingray HT bridge humbucker features proprietary Heat Treated pole pieces for increased output and wider frequency response The Stingray HT’s neck humbucker features large ceramic magnets and has been wound specifically to compliment the Stingray's HT bridge pickup The Stingray HT is crafted with a figured roasted maple neck, 22 stainless steel frets and Schaller locking tuners
More Output and Dynamic Range

Outperforms normal spec pickups by providing extra output and excellent touch sensitivity

Stronger Low End and Extended Frequency Response

HT pickups display a more powerful bass response and expansion of higher frequency harmonics

Stingray HT Bridge pickup

The Stingray HT (Heat Treated) bridge pickup outperforms normal spec pickups with more output, dynamic range, and excellent touch sensitivity. The pickup not only achieves ultra-high output but also garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

Stingray HT Neck Pickup

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Stingray's HT bridge pickup.

Push Push Boost Circuit

The Stingray HT preamp boost is activated by a push-push volume knob and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high octane soloing whenever the user chooses.

Transparent Buffered Output

No matter where your volume control is set, the transparent buffered output preserves your signal from high-frequency loss and keeps your tone bright and strong.

Tune-o-Matic Bridge

In use since the early 1950s, this popular bridge option is standard on the new Stingray HT. The Tune-o-Matic bridge is great for players who prefer a hardtail bridge option with great sustain and ease of string replacement.

Specifications SpecificationsStingRay HT Model StingRay HT Size 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long) Body Wood Alder Body Finish High Gloss Polyester Pickguard Black/White/Black Scale Length 25.5" Neck Radius 10" (25.4 cm) Headstock Size 6-3/8" (16.2 cm) long Frets 22 - High Profile, Medium Width, Stainless Steel Neck Width 1-5/8" (41.3 mm) at nut; 2-1/4" (56.9 mm) at last fret Neck Wood Roasted Figured Maple Fingerboard Brulee & Raspberry Burst - Figured Roasted Maple; Midnight Rider - Ebony; Showtime - Rosewood Fret Markers Dot Neck Finish Gunstock oil and hand-rubbed special wax blend Neck Colors Natural Tuning Machines Schaller M6-IND locking Truss Rod Adjustable - no component or string removal Neck Attachment 5 bolt, sculpted neck joint Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard Controls Volume knob with push/push switch for gain boost, tone knob, 3 way pickup selector switch. Switching 3-way toggle pickup selector; Push/push volume pot for boost Pickups Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker Left Handed No Strings 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240)
