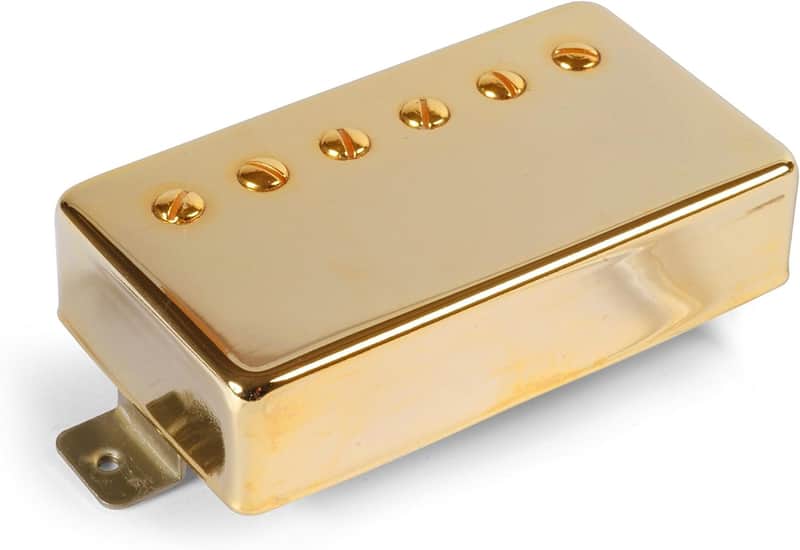

StewMac Humbucker Pickup, Neck Position, Gold Cover

StewMac Humbucker Pickups

Inspired by the 50s but built for today's player. StewMac humbuckers feature Alnico 5 magnets just like the timeless pickups of the past but with the modern features.

The new standard for replacement pickupsThe Alnico 5 magnet produces a clear tone with more pronounced highs and a tighter low end. An ideal balance for beautiful clean tones and overdriven sounds that don't get muddy.

The 6 adjustable screws let you easily dial in the voice of the pickup, while the slugs give you all the punch you need. With four-conductor wiring, you get the modern features you need: coil splitting, phase switching, series/parallel switching, whatever you can dream up!

Custom-wound for neck and bridge positions. The bridge is wound hotter for a more balanced tone and output.

Specifications

Medium output humbucker pickup

Neck polepiece spread: 1.970" (50mm)

Bridge polepiece spread: 2.015" (51mm)

Poly-coated 42 AWG coil wire

Potted to suppress noise

Alnico 5 magnet

Four-conductor insulated lead wires


Output

Neck position: 8K ohm range

Bridge position: 9K ohm range


Dimensions

Length including mouting tabs: 3.307" (84mm)

Length not including mouting tabs: 2.750" (70mm)

Mounting screw spacing: 3.007" (76.4mm)

Width: 1.42" (36mm)

Height including mounting tabs: 0.840" (21.34mm)


Mounting screws, springs and wiring diagrams are included.

Looking for hotter output with more powerful midrange? Check out our StewMac Overwound Humbuckers.
