Woodward Schumacher 1275:1 [10200 Ohms] Webcor 67P080-1 27A14 Vintage Output Transformer OT Tested Tube Amp Audio 1958-1962

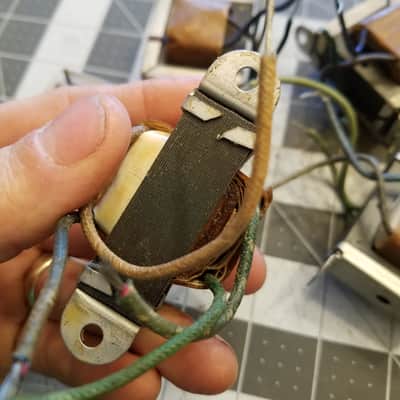

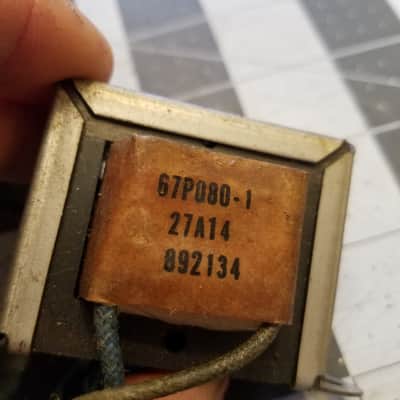

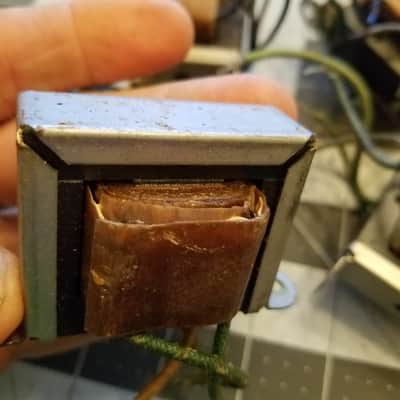

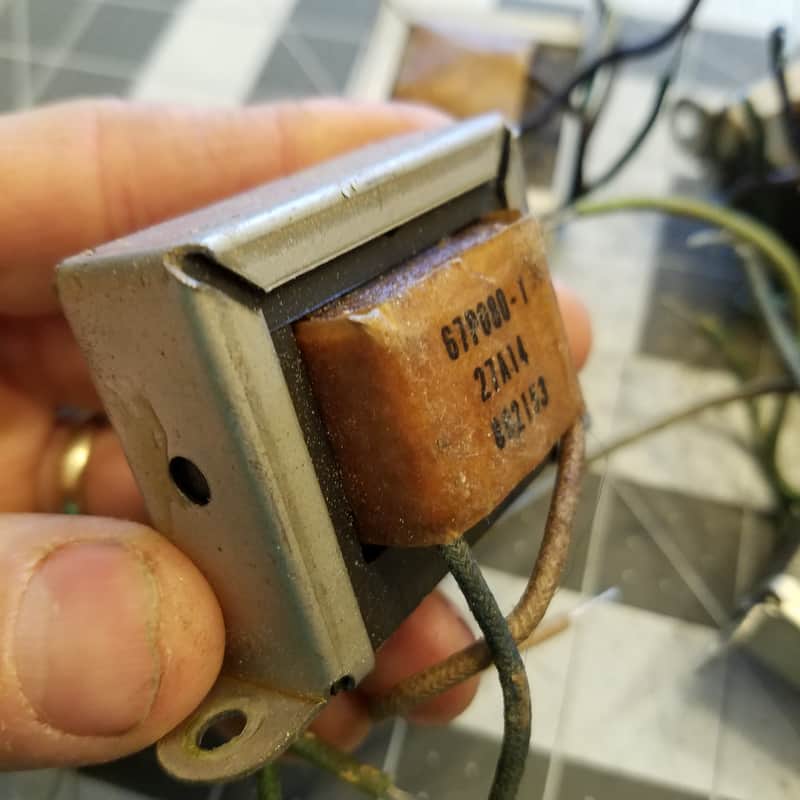

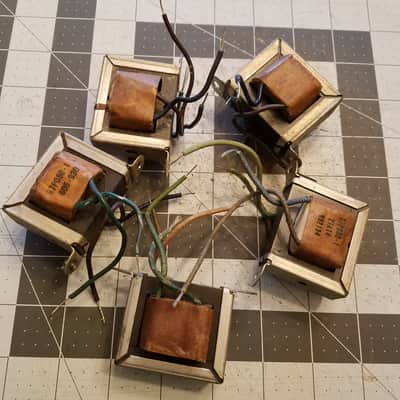

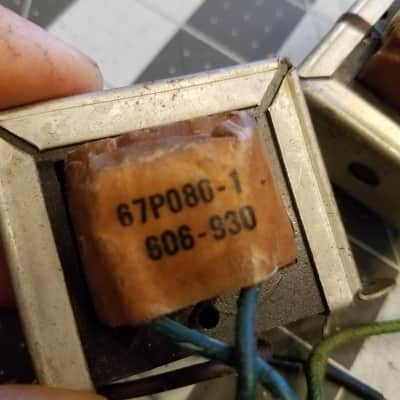

One (1) fully 1.00 kHz AC tested and guaranteed vintage tube amp output transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy outputs, which a simple resistance or continuity test will not reveal. Made in USA in 1958-1962 by Woodward-Schumacher for Webcor. IEA date code may vary, since this is a bulk listing of the OEM specification. Please offer $2 extra if you'd like us to poke through inventory to select a certain manufacturer or year. Otherwise, we'll grab the first one on the shelf. A typical IEA code for this model is 606930. Weighs 0 lbs 10 oz. Center-to-center bolt spacings 61 mm, and height of casing is 41 mm. Quantity sometimes available - please enquire.
This transformer was originally used to connect a 12AB5 output tube to a speaker.

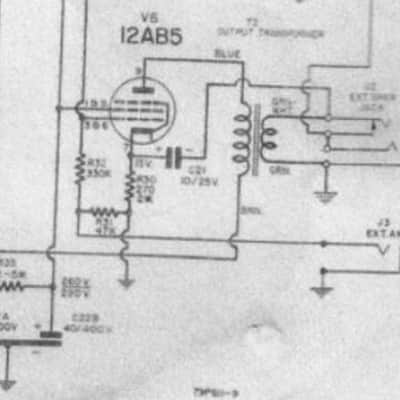

Please see the image of an original schematic using this model, for one possible application!

Using a 10V_pp, 1.00 kHz input to the primary coil, we have verified these connections for this vintage transformer:

The turns ratio (pri:sec) is 36:1, leading to an impedance ratio for the main secondary coil of 1275:1. This winding of the transformer would provide a 10200 ohm load resistance to the tube plate if you hook it to an 8 ohm speaker.

SKU O-W080.
