HIGHLIGHTS

• Fusion Series overdrive pedal with selectable MOSFET and germanium clipping
• From smooth compression to aggressive, dynamic drive textures
• Highly responsive to picking dynamics and guitar volume changes
• Wide ranging tone control shapes lows and highs with precision
• Reimagined clipping stage using MOSFET or Ukrainian germanium diodes
• Hand built in the USA with meticulous attention to detail
• Sturdy all metal enclosure for dependable gigging use
• Distinct Fusion Series artwork with clear, stage friendly layout
• Bright LED indicates active status at a glance
• True bypass switching preserves your core tone when disengaged
• Fully analogue signal path for authentic overdrive response
• Top mounted jacks and DC input for efficient pedalboard layout
• Limited lifetime warranty for long term peace of mind

DESCRIPTION

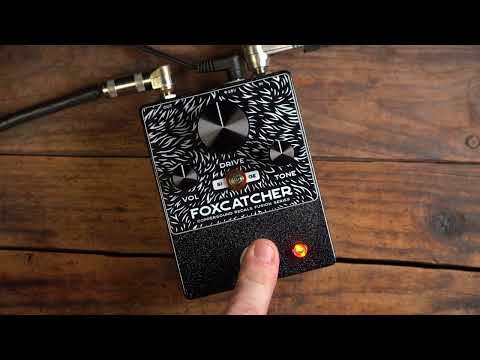

The CopperSound Pedals Foxcatcher Fusion Series is a versatile analogue overdrive built on the original award winning Foxcatcher, now reimagined with dual selectable clipping modes. Designed for guitarists and bass players seeking flexible low to medium gain tones, it delivers everything from edge of breakup warmth to harmonically rich drive and boosted lead sounds.

In the silicon position, four MOSFET transistors are configured as clipping diodes, producing a more aggressive and immediate response with added bite and articulation. Switching to the germanium setting engages four specially sourced Ukrainian made germanium diodes, offering a smoother, more compressed and rounded character. The expanded tone sweep and increased output level provide precise tonal shaping and easy amplifier pushing or pedal stacking.

Responsive to picking dynamics and instrument volume adjustments, the pedal cleans up well and maintains clarity as gain increases. It can be powered at 9V or 18V centre negative, with 18V operation providing additional headroom and improved note definition.

Volume, Drive and Tone controls offer intuitive, wide ranging adjustment, complemented by a clipping toggle for quick changes in feel and texture. Housed in a sturdy all metal enclosure with top mounted jacks, bright LED indicator and true bypass switching, the Foxcatcher Fusion is built for dependable stage and studio use and is backed by a limited lifetime warranty.

CONTROLS

• FOOTSWITCH: Engages effect or true bypass for clean signal routing
• VOLUME: Sets overall output from subtle trim to powerful boost
• DRIVE: Adjusts gain and saturation from light grit to thick overdrive
• TONE: Wide sweep shaping lows and highs to suit guitar or bass
• CLIPPING TOGGLE: Selects MOSFET silicon or Ukrainian germanium diode mode

COMPONENTS AND TECHNICAL SPECIFICATIONS

• All analogue overdrive circuit with selectable clipping modes
• Four MOSFET transistors configured as clipping diodes in SI mode
• Four Ukrainian made germanium diodes in GE mode
• Expanded tone sweep for broader EQ shaping
• Increased output level for boosting amplifiers or stacking pedals
• Operates at 9V or 18V centre negative for flexible headroom
• 18V operation provides greater clarity and dynamic range
• True bypass switching for signal integrity when disengaged
• Top mounted input, output and DC sockets
• No internal battery support reduces maintenance and waste
• Current consumption measured by Truetone: 8 mA bypass, 12 mA engaged

ENCLOSURE DIMENSIONS

• Depth: 116 mm / 4.6 in
• Width: 92 mm / 3.6 in
• Height: 39 mm / 1.5 in

WEIGHT

• 355 g
• 0.78 lbs
