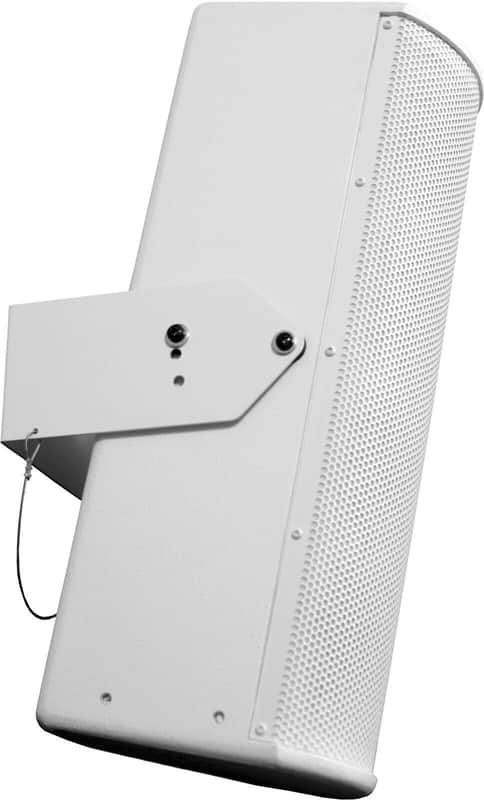

Galaxy Audio LA4DPMW 100 Watt Powered Line Array Speaker - White

Overview

This LA4DPM Series Permanent Mount Powered Line Array speaker is the latest in the line of CORE speakers from Galaxy Audio. With an integrated 100 watt amplifier, the Galaxy Audio LA4DPM Line Array is designed to take advantage of the unique sound dispersion characteristics of multiple stacked drivers. The vertical line array design allows for maximum coverage from a slim, unobtrusive speaker cabinet. The LA4DPM is designed for permanent installation with built in mounting points. Self contained and with a small footprint, the LA4DPM is the perfect solution for hassle free PA installations, even in acoustically challenging rooms.

The LA4DPM has both an XLR input with +48 volt phantom power, a balanced 1/4" input, and a 1/8" TRS summing input for MP3 players etc. With a two band EQ control and built in Compressor/Limiter.

Features

• Multiple mounting provisions
• Internal 100 Watt Amp
• +48V Phantom Power
• XLR, 1/4" and 1/8" Summing Input
• Built-In Compressor
• 2 Band EQ
• Can be Flown or Wall Mounted
• Universal Power Supply
• Vocal Clarity
• Light Weight
• 118 dB Output
• Solid wood construction

Specifications

• Frequency Response: 50Hz - 17kHz (±3 dB)
• Output/Peak: 100 Watts
• Nominal Impedance: 16 Ohms
• Sensitivity: 98dB, 1 W @1 m (1kHz octave band)
• Max SPL: 124dB, 100 W @ 0.5 m
• Speaker Compliment: Four 4.5" Full Range Drivers
• Nominal Coverage Pattern: 120º H x 60º V

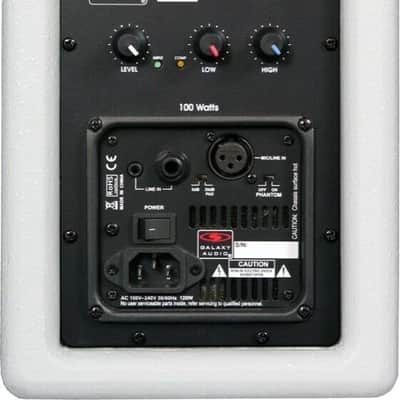

• Input Connections: One Balanced XLR with +48 VDC, One 1/4" Balanced/Unbalanced, One 1/8" Summing
• Controls: Level, High Frequency, Low Frequency, 20dB Pad, Phantom Power
• Indicators: Input, Compression
• Protection: Compressor/Limiter
• Power Supply: 100/240 VAC 50/60 Hz, 1A
• Enclosure Material: 15 mm Plywood, Steel Grill
• Rigging: Fourteen 1/4-20 T-nut Mounting Points
• Color: Black or White
• Dimensions: 21.5" x 7" x 7.5" (546 x 178 x 191 mm)(HxWxD)
• Weight: 14.35 lbs (6.5kg)
