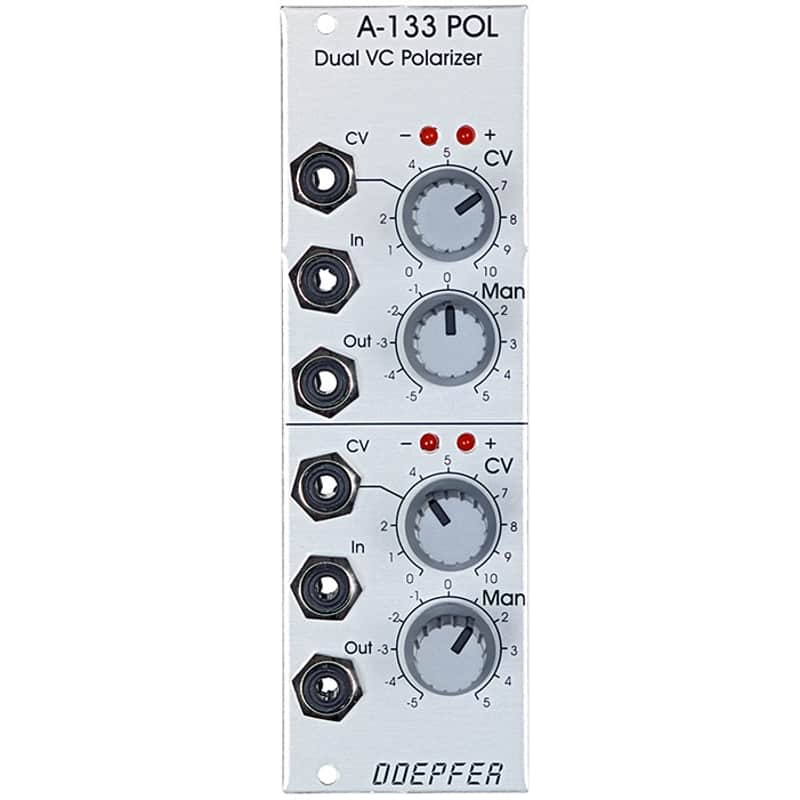

A-133 is a special dual voltage controlled amplifier that enables both positive and negative amplifications. Negative amplification means in this context that the signal is inverted. The main application of the module is the processing of control voltages, e.g. ADSR or LFO. The amplification range is about -2.5....0....+2.5. Amplification can be adjusted manually (Man control) and by an external control voltage with attenuator (CV). The present amplification is displayed with two LEDs: one for positive and one for negative amplifications (not a signal display but amplification diplay, similar to A-134).

Power consumption: 30mA at +12V and 20mA at -12V

Depth: 50mm

HP : 8

ConditionBrand New (New)
