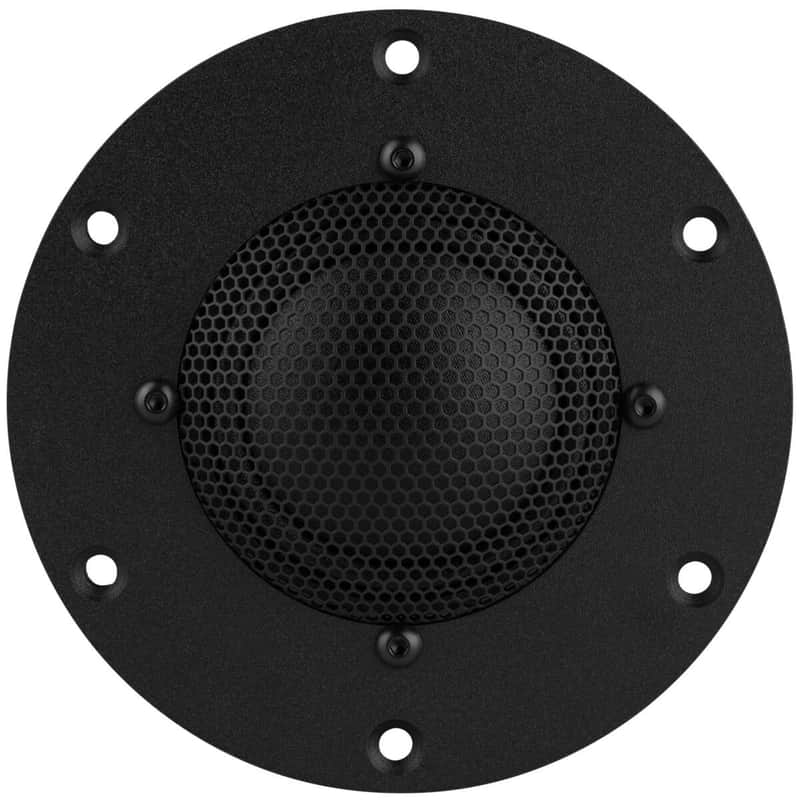

Dayton Audio - RS52FN-8 - 2" Reference Fabric Dome Midrange 8 Ohm
Price$69.95
Free Shipping
Free Shipping
from Chantilly, VA
Only 1 left
Grab it before it's gone
Listed:over a month ago
Views:1,172
Saves:2
Chantilly, VA, United States
30-Day Return Policy
Enjoy peace of mind with your new gear
Brand NEW!
The Dayton Audio Reference Series dome midrange delivers smooth and natural midrange performance with excellent off-axis response. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.
Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm The Dayton Audio Reference Series soft dome midrange delivers excellent off-axis response and midrange performance. Its 2" damped fabric diaphragm is linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical 2-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance drivers.
Product Specifications Nominal Diameter - 2" Power Handling (RMS) - 60 Watts Power Handling (max) - 120 Watts Impedance - 8 ohms Frequency Response - 500 to 8,500 Hz Sensitivity - 90 dB 2.83V/1m Voice Coil Diameter - 2"
Mounting Information Overall Outside Diameter - 5.12" Baffle Cutout Diameter - 3.94" Depth - 2.24" Bolt Circle Diameter - 4.5" # Mounting Holes - 6
Thiele-Small Parameters Resonant Frequency (Fs) - 394.3 Hz DC Resistance (Re) - 5.7 ohms Voice Coil Inductance (Le) - 0.12 mH Mechanical Q (Qms) - 4.27 Electromagnetic Q (Qes) -1.39 Total Q (Qts)1.05 Maximum Linear Excursion (Xmax)-1 mm Surface Area of Cone (Sd) - 26.4 cm²
Materials of Construction Cone Material -Soft Dome Surround Material - Cloth Voice Coil Wire Material - Copper Voice Coil Former - Aluminum Basket / Frame Material - Cast Aluminum Magnet Material - Neodymium
- All international buyers are responsible for all tax, duties and/or customs fees.
The Dayton Audio Reference Series dome midrange delivers smooth and natural midrange performance with excellent off-axis response. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.
Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm The Dayton Audio Reference Series soft dome midrange delivers excellent off-axis response and midrange performance. Its 2" damped fabric diaphragm is linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical 2-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance drivers.
Product Specifications Nominal Diameter - 2" Power Handling (RMS) - 60 Watts Power Handling (max) - 120 Watts Impedance - 8 ohms Frequency Response - 500 to 8,500 Hz Sensitivity - 90 dB 2.83V/1m Voice Coil Diameter - 2"
Mounting Information Overall Outside Diameter - 5.12" Baffle Cutout Diameter - 3.94" Depth - 2.24" Bolt Circle Diameter - 4.5" # Mounting Holes - 6
Thiele-Small Parameters Resonant Frequency (Fs) - 394.3 Hz DC Resistance (Re) - 5.7 ohms Voice Coil Inductance (Le) - 0.12 mH Mechanical Q (Qms) - 4.27 Electromagnetic Q (Qes) -1.39 Total Q (Qts)1.05 Maximum Linear Excursion (Xmax)-1 mm Surface Area of Cone (Sd) - 26.4 cm²
Materials of Construction Cone Material -Soft Dome Surround Material - Cloth Voice Coil Wire Material - Copper Voice Coil Former - Aluminum Basket / Frame Material - Cast Aluminum Magnet Material - Neodymium
- All international buyers are responsible for all tax, duties and/or customs fees.
