Schematic Diagram Package for JMI Era Vox AC-30/4 and AC30/6 Amps - 1960 through 1967

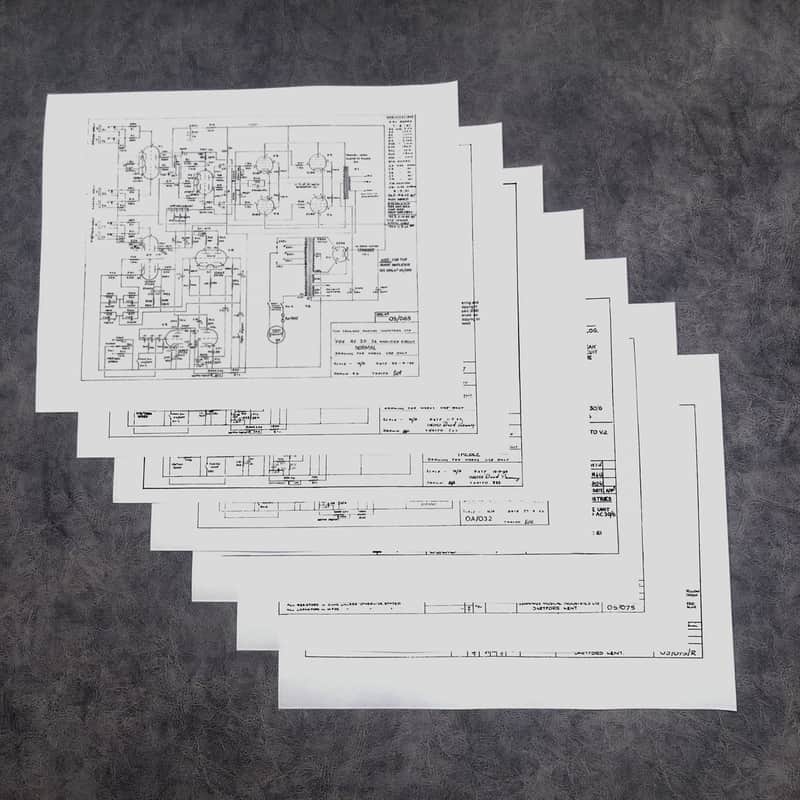

Schematic Diagram Package for JMI Era Vox AC-30/4 and AC-30/6 Amps - 1960 through 1967 - Includes seven 8.5” x 11” first-generation high resolution reprints of the official and original factory schematic diagrams for JMI Vox AC-30 amplifiers. Includes the following schematics:

• OA/032 JMI Vox AC-30/4 Amplifier Circuit Dated 29-4-60
• OS/056 JMI Vox AC-30/6 "Treble" Amplifier Circuit Dated 10-9-64
• OS/057 JMI Vox AC-30/6 "Bass" Amplifier Circuit Dated 11-9-64
• OS/065 JMI Vox AC-30/6 "Normal" Amplifier Circuit Dated 29-4-60
• OS/010 JMI Vox "Optional Brilliance Unit and Connections to AC-30/6" (also known as the "Top Boost" circuit)
• OS/075 JMI Vox Reverb Circuit for AC-30 Amps (add on type) Dated 15-1-65
• OS/075R JMI Vox Reverb Circuit - Revised for AC-30 Amps (add on type) Dated 14-10-1965

Every effort has been given to make each component value and voltage readable on all of these schematics. Most are very clear and readable. However, some of these schematics were hand drawn by the manufacturer and lacked clarity even in the original copies. North Coast Music accepts no responsibility for lack of clarity.

These schematic reprints are only offered in the package shown above and not available separately. The schematics will be mailed unfolded in a large envelope. The $2.99 charge for US postage includes tracking numbers. Sales final, no returns or refunds on schematic diagrams.
