Mutable Instruments Links 2015 - Present - Silver
Price$72
+ $12 Shipping
Listed:14 minutes ago
Views:1
Saves:0
Cocoa, FL, United States
Great Value
Our users rate Reverb

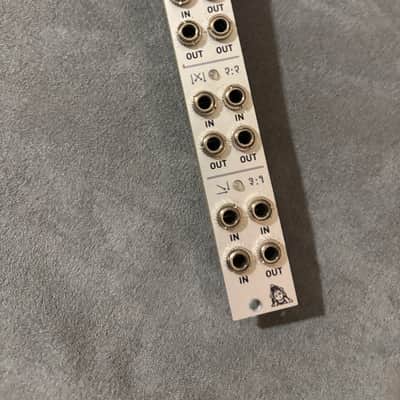

- 1:3 is a 3-output buffered multiple, with an offset error < 0.1%. It is useful for distributing the voltage from a CV output with a large protection resistor to several modules - particularly VCOs.
- 2:2 is a 2-input summer with unity gains. The sum of the two input channels is distributed to 2 outputs.
- 3:1 is a 3-input mixer with a gain of 1/3 for each channel (averager). It is particularly suitable for rapidly mixing audio sources such as oscillators, for which a unity gain mixer would have caused clipping.
- A 2-color output monitoring LED is available for each of these functions.
Product Details
- Eurorack Module
- 4 HP Width
- Input impedance: 1M for the buffered multiple, 100k for the mixers.
- All inputs DC-coupled.
- Buffered multiple with low offset error.
- Current consumption: +/-12V: 15mA.
Reverb Buyer Protection
Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.
| Listed | 14 minutes ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
| Synth Module Function |
|
| Horizontal Pitch |
|
| Modular Synth Format |
|
