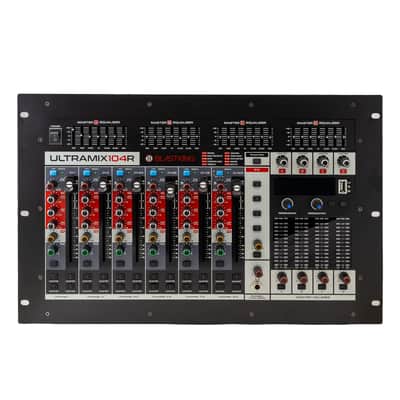

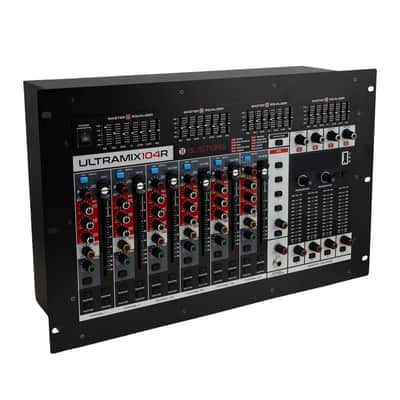

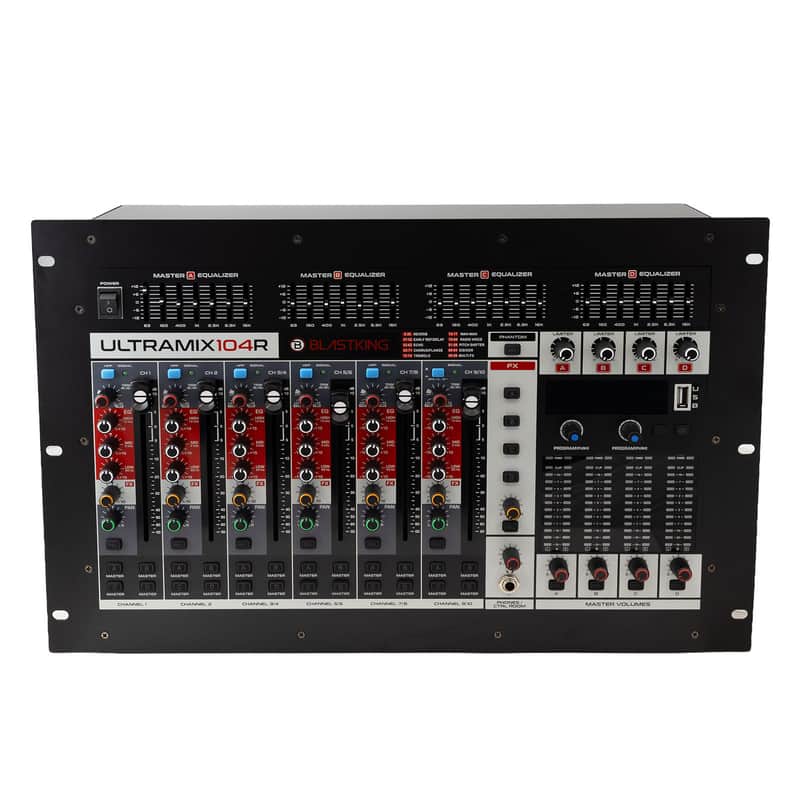

Blastking ULTRAMIX104R 10-Channel 7U Rackmount Multi-Zone Mixer with 99 DSP FX

Brand-new Blastking ULTRAMIX104R commercial-grade multi-zone professional audio mixer.

The ULTRAMIX104R provides flexible audio mixing, routing, and zone control for restaurants, bars, hotels, retail stores, schools, hospitals, conference facilities, event spaces, houses of worship, and live-music applications.

Its ten input channels include two XLR/1/4-inch microphone/line combination inputs and four stereo inputs. The mixer can distribute audio to four independent stereo zones or eight mono zones, making it ideal for commercial installations that require separate audio areas.

Each stereo master includes its own seven-band graphic equalizer and volume limiter. The console also provides low-impedance XLR master outputs and high-impedance 1/4-inch master outputs for flexible integration with professional and commercial audio systems.

Bluetooth® streaming, USB MP3 playback, PC and Mac interface functionality, 99 integrated DSP effects, 48V phantom power, 100 mm faders, PFL monitoring, and control-room and recording outputs make the ULTRAMIX104R a complete solution for installed and professional sound systems.

KEY FEATURES

• Commercial-grade multi-zone audio mixer
• Ten input channels
• Two XLR/1/4-inch microphone/line combination inputs
• Four stereo inputs
• Four independent stereo zones
• Eight mono-zone capability
• Independent seven-band EQ for each stereo master
• Independent volume limiter for each stereo master
• 99 integrated DSP effects
• Three-band channel equalization
• High-pass filter
• PFL monitoring
• Smooth 100 mm faders
• Front and rear input-signal LED monitoring
• Bluetooth® audio streaming
• USB MP3 player
• PC and Mac audio interface
• 48V phantom power
• Low-impedance XLR master outputs
• High-impedance 1/4-inch master outputs
• Control-room output
• Recording output
• Headphone output
• Universal 90–240V power supply
• Professional 7U rackmount design
• Three-year manufacturer warranty

TECHNICAL SPECIFICATIONS

Brand: Blastking
Model: ULTRAMIX104R
Product type: Commercial multi-zone audio mixer
Input channels: 10
Microphone/line inputs: Two XLR/1/4-inch combination inputs
Stereo inputs: 4
Channel EQ: Three-band
High-pass filter: Yes
PFL monitoring: Yes
Channel faders: 100 mm
DSP effects: 99
Phantom power: 48V
Stereo zones: 4
Mono zones: 8
Master EQ: Independent seven-band EQ for each stereo master
Master limiter: Independent volume limiter for each stereo master
Playback: Bluetooth and USB MP3
Computer interface: PC and Mac

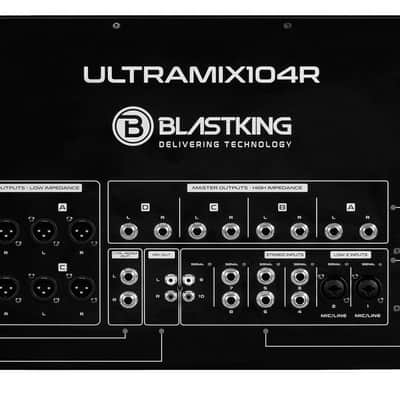

Low-impedance outputs: Four XLR master outputs, A–D
High-impedance outputs: Four 1/4-inch master outputs, A–D
Additional outputs: Control room and recording
Headphone connection: Yes
Input-signal monitoring: Front and rear LED indicators
Power input: AC 90–240V, 50/60Hz
Rack size: 7U
UPC: 686811898595

DSP EFFECT CATEGORIES

• Reverb: Presets 00–26
• Early Reflection and Delay: Presets 27–52
• Echo: Presets 53–62
• Chorus and Flanger: Presets 63–71
• Tremolo: Presets 72–74
• Wah-Wah: Presets 75–77
• Radio Voice: Presets 78–80
• Pitch Shifter: Presets 81–88
• Distortion: Presets 89–94
• Multi-Effects: Presets 95–99

RECOMMENDED APPLICATIONS

• Restaurants and coffee shops
• Bars and entertainment venues
• Retail stores
• Hotels and hospitality facilities
• Hospitals and healthcare facilities
• Schools
• Conference and meeting rooms
• Banquet and party rooms
• Houses of worship
• Multi-room commercial audio systems
• Live-music applications

WHAT IS INCLUDED

• One Blastking ULTRAMIX104R multi-zone mixer
• Power cable
• Original manufacturer packaging

CONDITION

Brand new and unused, supplied by Blastking USA. The mixer includes its original manufacturer packaging and is backed by the manufacturer’s three-year warranty.

This listing is for one ULTRAMIX104R mixer. Microphones, audio cables, amplifiers, speakers, computers, headphones, rack enclosure, and other equipment are not included unless specifically shown and stated as included.
