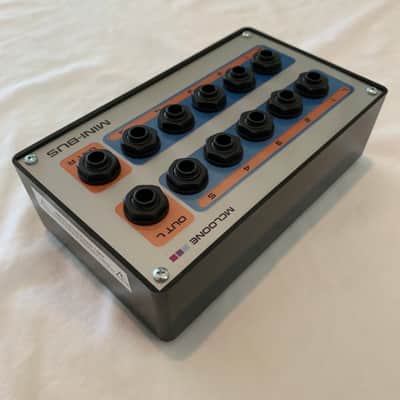

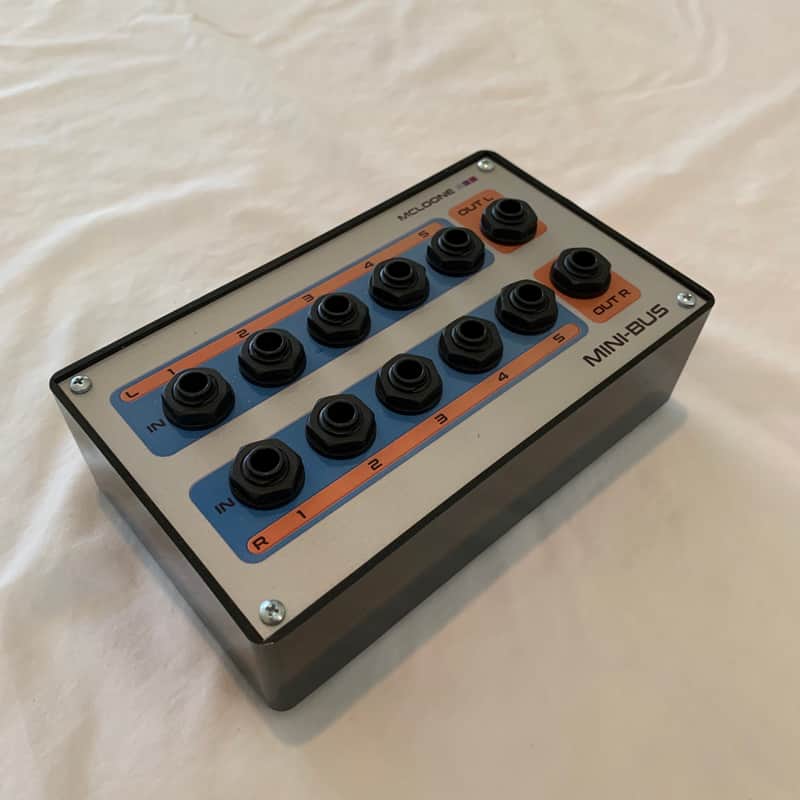

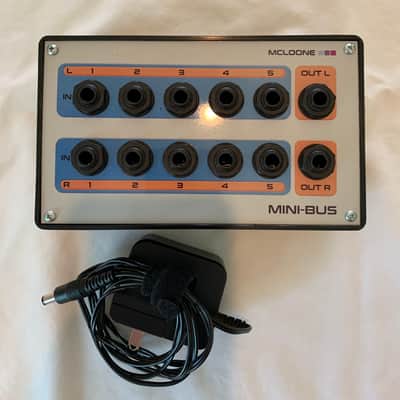

McLoone Mini-Bus 10 - Passive Summing Mixer

This sale is for the item only, it does not include the original box.

PRECISION 10-CHANNEL PASSIVE SUMMING MIXER

Analogue bus summing from 2 to 10 channels

Passive design, preserves the timbre of your recordings

Designed & Manufactured in Berlin, Germany

PRECISION 10-CHANNEL PASSIVE SUMMING MIXER

Analogue bus summing from 2 to 10 channels. Maximum of 5 Stereo Inputs (10-channels) on TRS balanced jacks for simple connection to most audio interfaces. Allows for re-amping of tracks already mixed for added glue and grit.

Fixed load for mix summing applications - The load in this unit creates the analogue dirt effect on the mix. Use a stereo mic pre-amp or Bus Driver to return to line level afterwards (20-30dB gain required). This device is intended to be used for final bus or mix summing applications, during studio recording.

HIGH-END PERFORMANCE

Start summing buses in analogue with mastering grade precision. With up to ten channels of identically matched gain reduction, Mini-Bus brings high-end audio to your desktop. Route buses during mix-down to the five stereo channels for analogue glue and cohesion, or simply re-amp a track which is already bounced for added glue and grit.

AT HOME IN THE MIX OR MASTERING STUDIO

Providing analogue mix summing, analogue mix busing, as well as re-amping of individual instruments or entire mixes during mastering. Not to mention processing of stems during mastering. The Mini-Bus is ultra flexible in it’s design and application.

GET OUT OF THE BOX

If you’ve been working “in the box” for some time, eventually it becomes
clear that not every recording benefits from the absolute clarity offered by today’s DAWs. Being able to dial in a certain amount of dirt can be vital. At times the difference between a “recording” and a “record” might be a single piece of equipment, such as a high-end compressor at the mastering house, which adds the elusive sparkle needed.

Collapsible contentCOMPATIBILITY

Any audio interface with at least 4x balanced single outputs (2x stereo
outputs) and two balanced microphone inputs with at least 20dB of gain.

REQUIREMENTS

Power Requirements: No PSU required, no 48V required

Requires 2x balanced pre-amplifier channels, with a minimum 20dB of gain (e.g. microphone pre-amp)

SPECIFICATION

Inputs: 5x Stereo Balanced 1/4" TRS (10 Channels Total)

Outputs: 2x Balanced 1/4" TRS

Sample Rate: Run your audio interface at any sample rate

Maximum Input Level: Greater than +26dBu

Minimum Input Level: -10dBV (+4dBu or greater recommended)

AUDIO SPEC.

THD+N (10 channels driven): 0.007%

THD+N (2 channels driven): 0.004%

THD (2 channels driven): 0.00061%

Measurement Setup: THD/THDN (1kHz, +18dBu sine tones)

Maximum Input Level: Greater than +26dBu

Minimum Input Level: -10dBV (+4dBu or greater recommended)

Passive design, preserves the timbre of your recordings

Fully balanced from input to output means a high degree of noise immunity

TRS jacks for easy connection to most audio interfaces

Mastering grade 1% metal film resistors throughout

All jacks are manufactured by REAN (subsidiary of Neutrik)

Designed & Manufactured in Berlin, Germany
