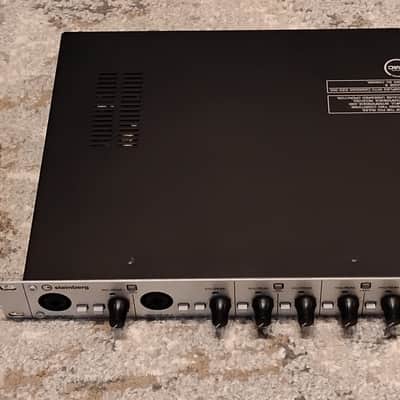

Very good condition Steinberg UR-824 with power supply. Great 8 channel USB interface and was not used often.

Product info:

  • computer audio interface with 24 input and 24 output channels
  • 8 Yamaha D-PRE discrete Class A mic preamps with 48V phantom power offer warm, clean sound even at high input levels
  • accepts mic, instrument, line-level, ADAT, and S/PDIF signals
  • dspMixFx software offers 24-input mixing to 4 stereo outputs with low-latency direct monitoring and effects
  • Download from Steinberg, REV-X reverb, Sweet Spot Morphing (compression and EQ), and Guitar Amp Classics plug-ins (DSP and VST versions for monitoring and recording)
  • optical digital in/out offers up to 16 channels of ADAT signals with external mic preamps and mixers for 24-input recording

Connections:

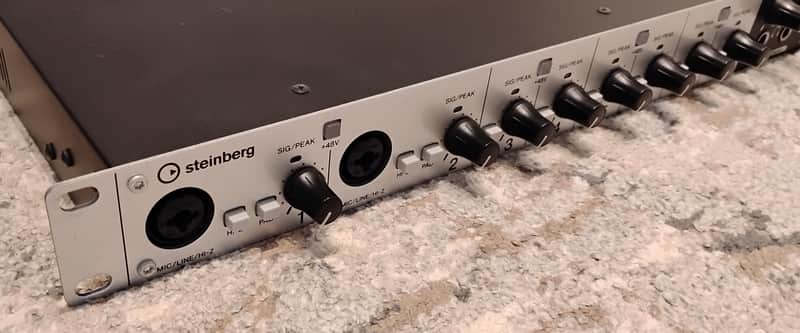

  • 2 front-panel XLR/TRS switchable mic/line/instrument inputs with 26dB pad for use with microphones, electric guitars and basses, and other instruments

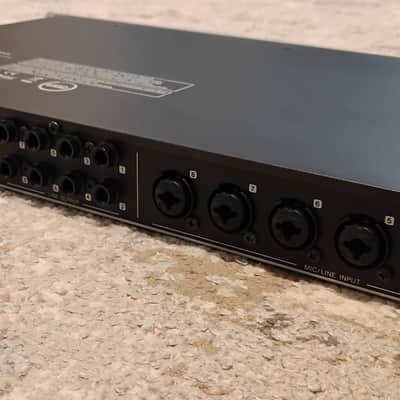

  • 6 rear-panel XLR/TRS balanced mic/line inputs for use with microphones, keyboards, and drum machines

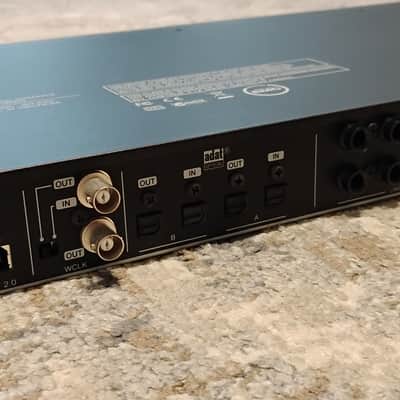

  • 2 ADAT-compatible optical (Toslink) digital inputs/outputs for connection to external devices such as an 8-channel mic preamp or a mixer
    • can be configured to transmit S/PDIF signals
  • eight 1/4" balanced analog outputs for connecting powered studio monitors, mixing boards, or effects processors

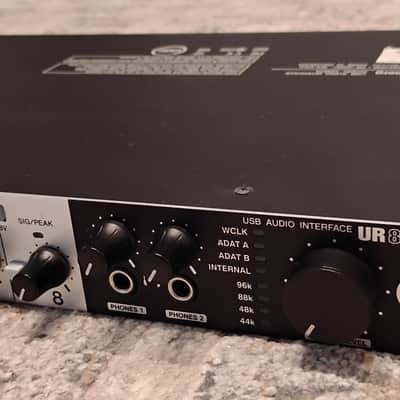

  • two 1/4" headphone outputs with independent volume control for discrete monitor mixes
  • word clock in/out (BNC connector) for synchronizing sampling clock with external digital recording equipment
  • USB 2.0 port for connection to a computer

General Features:

  • 24-bit analog-to-digital/digital-to-analog conversion with sampling rates of 44.1/48/88.2/96/176.4/192kHz
  • full integration of DSP mixing and input/output routing in Cubase for streamlined workflow
  • JetPLL circuitry reduces timing jitter from digital sources, for improved accuracy and sound quality
  • multi-channel mixing capability for creating 7.1-channel surround mixes
  • on-board memory for storing a mix configuration for use as a stand-alone mixer on stage
  • loopback feature returns signals back to the computer for live Internet streaming
  • signal/peak indicators for all 8 analog inputs
  • USB and power cables included (no bus power)
  • system requirements: USB 2.0 port; Windows 7 (SP1), Windows 8, or Mac OS X 10.7 Lion or later; Intel or AMD dual core CPU, 4GB of free hard drive space, DVD-ROM or Internet connection for software installation
  • 18-15/16"W x 1-3/4"H x 10-7/8"D (1U rack space)
  • weight: 6.8 lbs.


Reverb Buyer Protection

Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.

Listed15 minutes ago
ConditionVery Good (Used)
Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more
Brand
Model
  • UR824 USB 2.0 Audio Interface
Finish
  • Silver/Black
Categories
Year
  • 2010s
Computer Connectivity
  • USB
Bus-Powered
  • No
Sample Rate
  • 96 khz
Electronics
  • Digital
  • Analog
  • Solid State
Compatibility
  • macOS
  • Windows
Bit Depth
  • 24-bit
Format
  • 19-inch Rackmount
Number of Headphone Outputs
  • 2
Number of MIDI Outputs
  • 0
Number of MIDI Inputs
  • 0
Number of Digital Outputs
  • 16
Number of Digital Inputs
  • 16
Number of Analog Outputs
  • 8
Number of Analog Inputs
  • 8
Number of Channels
  • 0
Number of Mic Preamps
  • 8
