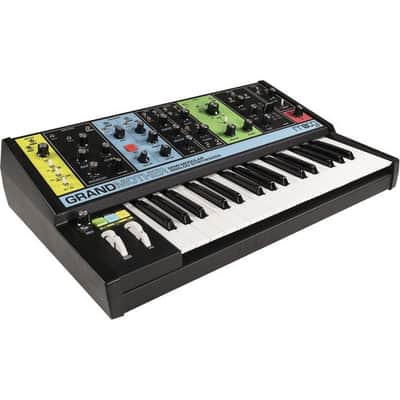

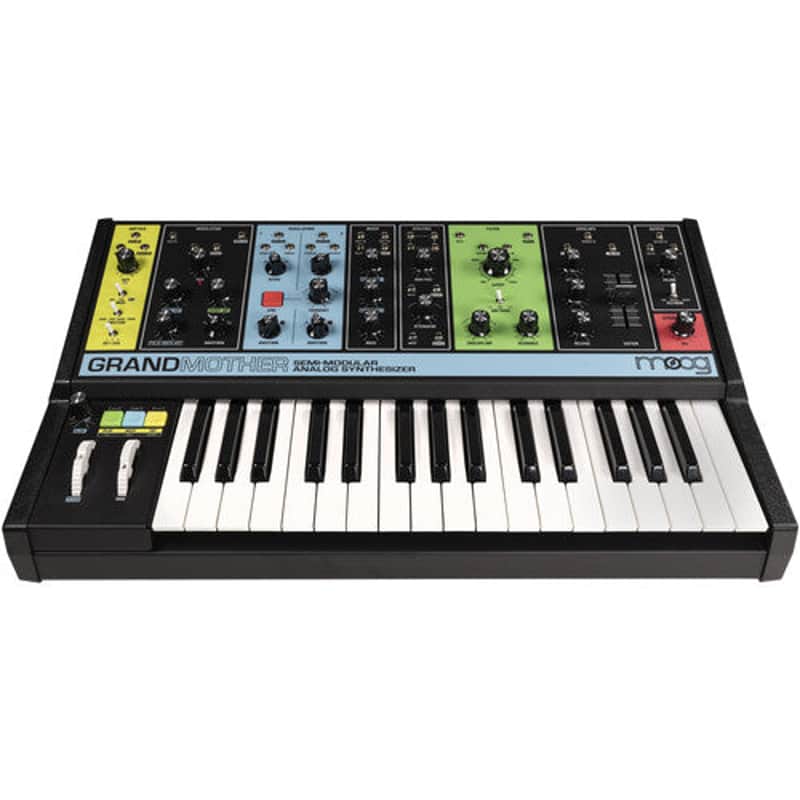

The multicolored Moog Grandmother is a semi-modular analog synthesizer with a 32-note Fatar keyboard, an integrated sequencer/arpeggiator, a spring reverb, and 41 patch points compatible with the Mother-32, DFAM, and other Eurorack modules. The semi-modular design is pre-wired internally for making sounds without patch cables and is fully controllable via MIDI.

Both oscillators offer selectable waveshapes and can be hard-synced, while the dedicated analog LFO features audio-rate capabilities. The classic 24 dB low-pass ladder filter provides a frequency range of 10 Hz to 20 kHz, while the patchable 1-pole high-pass filter offers additional harmonic shaping. Additionally, the Grandmother offers a standard ADSR envelope generator and is complemented by a built-in hardware spring reverb.

The onboard sequencer offers three memory slots and each sequence can retain up to 256 notes. Additional features include USB MIDI, MIDI in/out/thru via 5-pin DIN, a patchable bipolar attenuator, a patchable 4-way mult, and a 1/4" external input for processing guitars, drum machines, and more. The Moog Grandmother ships with a power adapter, a power cord, a drawstring bag, and eight patch cables.

Features

• Modules inspired by those found in Moog's classic large format Legacy Modular systems
• Hardware spring reverb can be used to process external sounds
• 1/4" external audio input for guitars, drum machines, and more.
• Semi-Modular: No patching is required
• Easy to use arpeggiator and sequencer
• Store up to 3 sequences with up to 256 notes each
• Two analog oscillators with selectable waveshape and hard sync
• Classic 4-pole Ladder filter (10 Hz to 20 kHz)
• Patchable 1-pole high-pass filter
• Analog ADSR envelope generator
• Analog LFO with audio-rate capabilities
• 32-note Fatar keyboard with velocity
• All normalized connections can be interrupted for full modularity
• MIDI in/out/thru (5-pin DIN) and USB MIDI
• Patchable bipolar attenuator
• Works with Mother-32, DFAM, Subharmonicon Eurorack modular systems, and more
• 41 patch points with 21 inputs, 16 outputs and a parallel-wired 4-jack mult
• Includes 8 patch cables (2 x 6, 12, 18, 24")

Specifications

• Keyboard: 32-Note Fatar Keyboard with Velocity
• Polyphony: Mono
• Multitimbral: Single
• Synthesis Method: 100% Analog
• Components: Two Analog Oscillators with Selectable Waveshapes and Hard Sync, Classic 4-Pole Ladder Filter: 10 Hz to 20 kHz, Patchable 1-Pole High-Pass Filter, Envelope Generator: ADSR, LFO with Audio-Rate Capabilities, Patchable Bipolar Attenuator, Mult: 4-jack
• Patch Points: 41 Patch Points, Inputs: 21, Output: 16, Parallel-Wired Mult: 4-Jack
• Effects: Spring Reverb with Integrated Reverb Tank
• Sequencer: 3 x Sequences, with Up to 256 Notes Each
• Arpeggiator: Yes
• Inputs: 1/4" / 6.3 mm
• Outputs: 1/4" / 6.3 mm
• MIDI Connectors: In: 5-pin DIN, Out: 5-pin DIN, Thru: 5-pin DIN, USB: Type-B
• Power: Power Adapter: 12 VAC, 2 A, Voltage: 100 to 240 VAC, 50/60 Hz
• Dimensions: 5.5 x 23 x 12.3" / 14 x 58.4 x 31.1 cm
• Weight: 16 lb / 7.3 kg
• Package Weight: 22.4 lb
• Box Dimensions (Lxwxh): 25.8 x 16.4 x 8.8"
