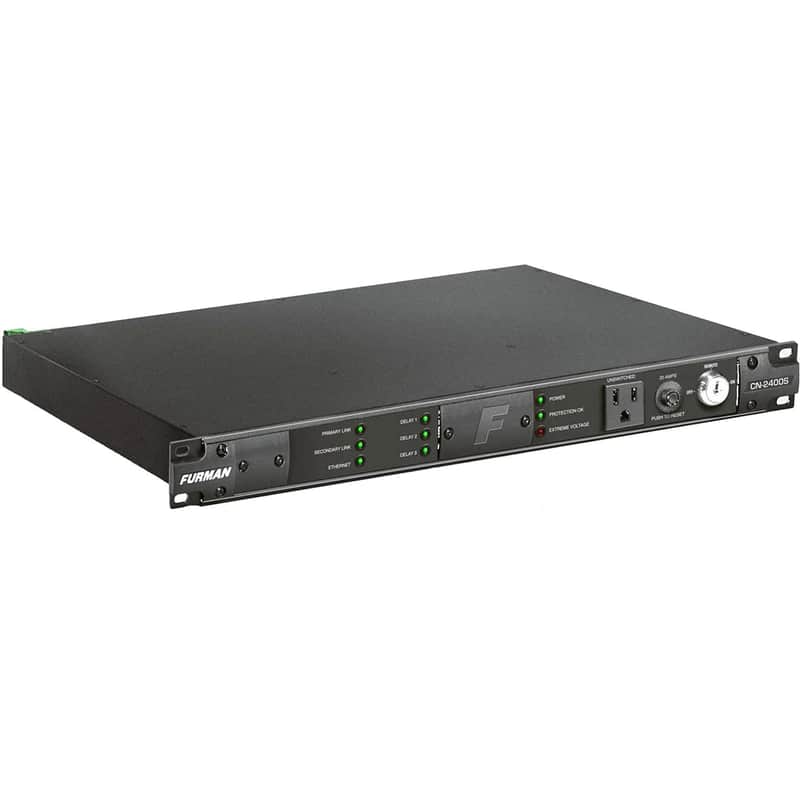

Furman CN-2400S SmartSequencing 20A Power Conditioner

Furman CN-2400S Contractor Series 20A SmartSequencing Power Conditioner

The Furman CN-2400S is a Contractor Series 1U, 20-amp SmartSequencing power conditioner designed for demanding professional A/V installations. It combines advanced surge protection, linear AC noise filtration, and intelligent bidirectional sequencing with robust control options, making it ideal for mission-critical racks in commercial, house-of-worship, education, and corporate environments.

• 20A SmartSequencing power conditioner for high-current A/V systems
• 1U, 19" rackmount design with NEMA 5-20P input and NEMA 5-20R outlets
• Six sequenced rear outlets plus two unswitched rear outlets, all 20A-rated
• Front-panel NEMA 5-15R convenience outlet for quick access
• SmartSequencing™ enables safe, bidirectional, sequenced power up/down across multiple units
• Series Multi-Stage Protection (SMP) delivers industry-leading surge and spike protection
• Extreme Voltage Shutdown (EVS) powers down connected gear during unsafe line conditions
• Linear Filtration Technology (LiFT) provides wide-band AC noise reduction for optimal audio and video clarity
• RS-232 control and command set for integration with external control systems
• Optional BlueBOLT® IP control for remote monitoring and management
• Diagnostic lights provide at-a-glance status for power, protection, and extreme voltage

The CN-2400S simplifies power management in large, multizone A/V installations with Furman’s SmartSequencing™ technology. A single button press or key-turn can safely power entire systems on or off in the proper order, even when multiple CN-2400S units are linked together. Bidirectional communication allows sequencing to be managed from a single point, making it easy for nontechnical users to operate complex systems safely.

Furman’s Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS) provide robust AC protection against surges, spikes, and dangerous overvoltage events, while Linear Filtration Technology (LiFT) reduces AC noise across a wide bandwidth to preserve audio and video fidelity. RS-232 connectivity and an available BlueBOLT® IP interface offer powerful integration and remote management options, while front-panel diagnostic indicators and configurable DIP switches support quick setup and troubleshooting.

Designed for demanding commercial environments, the CN-2400S supports long-distance control wiring runs up to 1,000 feet, making it a flexible core component in modern integrated A/V systems.

Specifications

• Series: Contractor Series
• Type: 20A SmartSequencing power conditioner
• Line Voltage: 120 V AC
• Rack Format: 1U, 19" rackmount
• Maximum Current Rating: 20 A
• Input Connector: NEMA 5-20P
• Rear Outlets: 8 × NEMA 5-20R (6 sequenced, 2 unswitched)
• Front Outlet: 1 × NEMA 5-15R convenience outlet
• Surge Protection: Series Multi-Stage Protection (SMP)
• Voltage Protection: Extreme Voltage Shutdown (EVS)
• Noise Filtration: Linear Filtration Technology (LiFT)
• Sequencing: SmartSequencing™ bidirectional power up/down across multiple units
• Control Interfaces: RS-232 port and command set; optional BlueBOLT® IP control
• Diagnostics: Front-panel diagnostic lights for power quality, Protection OK, and Extreme Voltage
• Configuration: Configurable DIP switches; supports long-distance control wiring up to 1,000 ft
• Typical Applications: Commercial A/V racks, multizone installations, houses of worship, education, corporate, and hospitality systems

Manufacturer: Furman
Model: CN-2400S
SKU: I269760-N-3-WHXE
UPC: 654061028468
