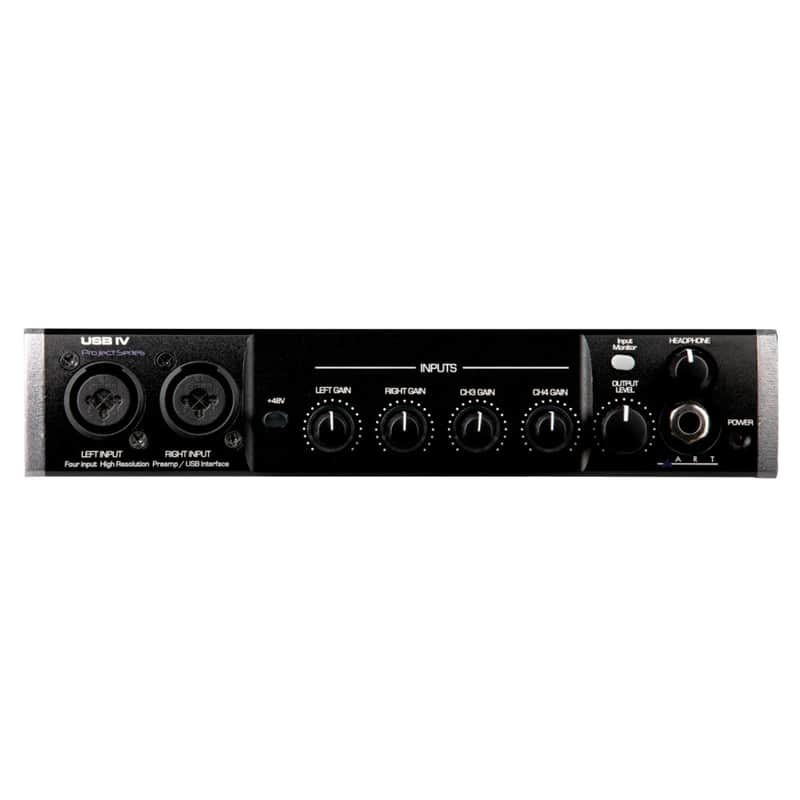

USBIV  ART

 USB MIDI Digital Audio Interface

With four input channels and class-leading 32-bit, 192 kHz conversion, the USB IV is ARTs most advanced digital audio interface.

It has two mic/instrument and two mic / line inputs, all with combo jacks that can accept XLR and 1/4" connections. Indicator rings around the input gain controls turn green to indicate optimum signal levels, and red to indicate peaking. The interface also features switchable phantom power, balanced 1/4" outputs, a dedicated headphone jack, and full-sized MIDI in and out connectors.

The USB IV is bus-powered, class-compliant, and bundled with Cubase LE recording software from Steinberg. It offers extended connectivity and superior fidelity for home and project studios, and its compact size and rugged enclosure make it a convenient tool for mobile recording.

Features:

• High Quality 32-bit converters

• Sample rates from 44.1k to 192kHz

• Low latency ASIO and WDM driver

• Transformer isolated outputs

• Low noise discrete mic preamps

• High Z instrument inputs

• Zero latency monitoring

• Front panel headphone output

• 5-Pin MIDI Connections

• USB cable included

Specifications:

• Inputs: 4x XLR / 1/4” TRS Combo Jacks, (2x Mic / Line, 2x Mic / Instrument)

• Outputs: 2x 1/4” TRS

• Headphones: 1x 1/4"

• Input Impedance: >7 kΩ (XLR),  >1 MΩ (1/4")

• Output Impedance: 300Ω (Main), 32Ω (Headphones)

• Maximum Input Level: +3.5 dBu (Mic), +19 dBu (Line), +15 dBu (Instrument)

• Maximum Output Level: +8 dBu (Main), +6.5 dBu (Headphones)

• Frequency Response: 20 Hz - 20 kHz (+/- 1dB)

• Total Harmonic Distortion: <0.002%

• Equivalent Input Noise: -128 dBu (Typical)

• Signal to Noise Ratio: 115 dB (ADC), 110 dB (DAC)

• CMRR: >87 dB (Mic), 60 dB (Line)

• Channel Separation: >75 dB

• Phantom Power: +48 V DC (Filtered, Current Limited)

• Connectivity: USB 2.0, MIDI 5-Pin DIN (In & Out)

• Resolution: 32-Bit, 44.1 kHz - 192 kHz

• Power Requirements: 500 mA (USB 2.0)

• Note: 0 dBu = 0.775Vrms

• Dimensions (HWD): 8.75" x 1.75" x 6.2" (22.2 cm x 4.4 cm x 15.7 cm)

• Weight: 2.15 lbs / 975 g

SALE: $272.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
