USBIV ART

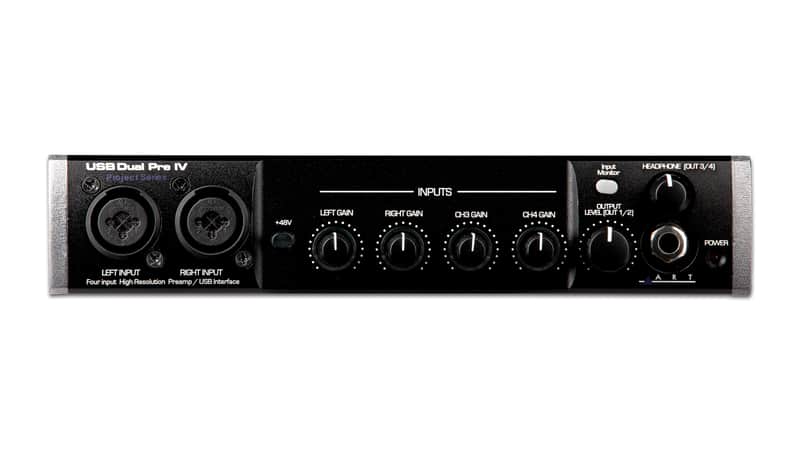

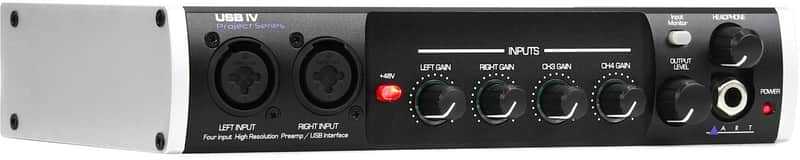

USB MIDI Digital Audio Interface
With four input channels and class-leading 32-bit, 192 kHz conversion, the USB IV is ARTs most advanced digital audio interface.
It has two mic/instrument and two mic / line inputs, all with combo jacks that can accept XLR and 1/4" connections. Indicator rings around the input gain controls turn green to indicate optimum signal levels, and red to indicate peaking. The interface also features switchable phantom power, balanced 1/4" outputs, a dedicated headphone jack, and full-sized MIDI in and out connectors.
The USB IV is bus-powered, class-compliant, and bundled with Cubase LE recording software from Steinberg. It offers extended connectivity and superior fidelity for home and project studios, and its compact size and rugged enclosure make it a convenient tool for mobile recording.
Features:
High Quality 32-bit converters
Sample rates from 44.1k to 192kHz
Low latency ASIO and WDM driver
Transformer isolated outputs
Low noise discrete mic preamps
High Z instrument inputs
Zero latency monitoring
Front panel headphone output
5-Pin MIDI Connections
USB cable included
Specifications:
Inputs: 4x XLR / 1/4” TRS Combo Jacks, (2x Mic / Line, 2x Mic / Instrument)
Outputs: 2x 1/4” TRS
Headphones: 1x 1/4"
Input Impedance: >7 kΩ (XLR), >1 MΩ (1/4")
Output Impedance: 300Ω (Main), 32Ω (Headphones)
Maximum Input Level: +3.5 dBu (Mic), +19 dBu (Line), +15 dBu (Instrument)
Maximum Output Level: +8 dBu (Main), +6.5 dBu (Headphones)
Frequency Response: 20 Hz - 20 kHz (+/- 1dB)
Total Harmonic Distortion: <0.002%
Equivalent Input Noise: -128 dBu (Typical)
Signal to Noise Ratio: 115 dB (ADC), 110 dB (DAC)
CMRR: >87 dB (Mic), 60 dB (Line)
Channel Separation: >75 dB
Phantom Power: +48 V DC (Filtered, Current Limited)
Connectivity: USB 2.0, MIDI 5-Pin DIN (In & Out)
Resolution: 32-Bit, 44.1 kHz - 192 kHz
Power Requirements: 500 mA (USB 2.0)
Note: 0 dBu = 0.775Vrms
Dimensions (HWD): 8.75" x 1.75" x 6.2" (22.2 cm x 4.4 cm x 15.7 cm)
Weight: 2.15 lbs / 975 g
SALE: $272.99
FREE S&H in continental US (e-mail for international / offshore USA rates)
Original Price$272.99
$23 off
New Price$249.99
Free Shipping
Free Shipping
from Palm Coast, FL
14-Day Return Policy
Enjoy peace of mind with your new gear
