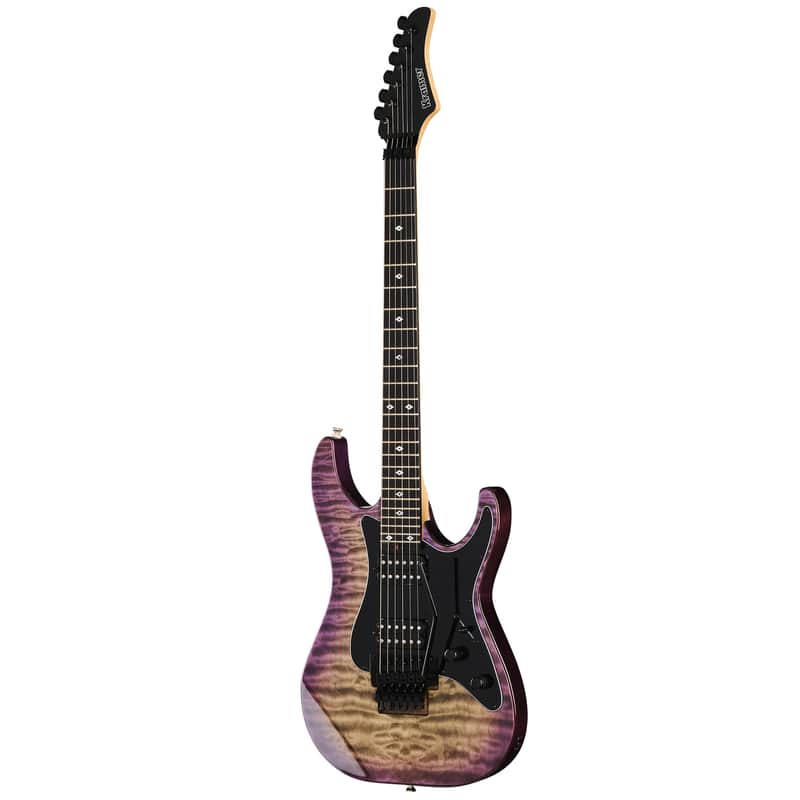

Eye-Catching Quilt Top with Floyd Rose Precision - The Kramer Volante Quilt HHFR Electric Guitar in Ultraviolet Burst

Kramer has long been known as a brand that makes guitars that meet the needs of highly fluid and technical players–a brand for shredders and virtuosos. For nearly 50 years, Kramer has been the guitar choice for legendary trailblazers, but we’re not resting on our laurels. Today, we’re crafting guitars for the next generation of innovators. The new Kramer Volante Quilt HHFR is the proof; it’s a modern instrument with cutting-edge features built to satisfy the needs of contemporary players who demand a high-performance guitar suitable for a variety of styles, including today’s heavier musical genres.

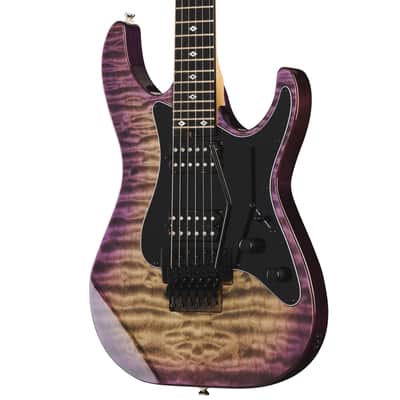

The Italian word “Volante” translates to “flying” or “light” in English and signifies the musical ideas of speed and movement. As a musical direction, it commands playing fast and fluidly. Kramer’s latest platform, the Volante, embodies that spirit of speed and fluidity. The Volante Quilt HHFR offers cutting-edge features, including a lightweight alder body with a gorgeous AAAA quilt maple veneer top and forearm and body comfort carves. The 3-piece, satin-finished maple neck is bolted to the body with five bolts and ferrules and has a sculpted heel for improved upper fret access. It also features the new Kramer KeyLock system. The KeyLock, developed by Senior Product Development Engineer Richard Akers, provides incredible neck stability. Paired with Kramer’s five-bolt neck-to-body joint, it prevents movement in the neck pocket, increasing vibrational tone transfer, sustain, and intonation.

The neck is thermally aged and has a fast-playing Kramer Elliptical C profile. It is capped with an ebony fretboard with 24 jumbo frets, mother-of-pearl diamond inlays, and a compound (10-14”) fretboard radius. The truss rod uses a spoke wheel style adjustment at the body end of the fretboard, making it quick and easy to access. The 25.5” scale length is great for drop tuning. A Floyd Rose® R3 locking nut and 1000 Series tremolo keep the tuning rock-solid no matter how much you use the vibrato bar.

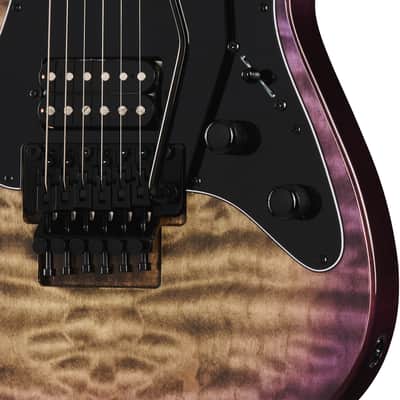

The pickups are a pair of Kramer USA Neptune humbuckers™ wired to master volume and tone controls and a 5-way blade-style pickup selector switch that is wired for maximum tonal versatility. In position 1, the bridge pickup operates alone as a humbucker wired in series. In position 2, the bridge and neck pickups run together, but each is in single-coil mode, with the slug coil of the bridge pickup running with the screw coil of the neck pickup. Position 3 uses both pickups combined, with each running as a series-wired humbucker. Position 4 uses the neck pickup by itself, running as a parallel-wired humbucker, while position 5 gives you the neck humbucker pickup wired in series. The pickups are hum-canceling in all positions.

While this isn’t an 80s design, it’s a Kramer, so like all of our guitars, it still has plenty of in-your-face, Made to Rock Hard attitude and all of the features that today’s virtuoso players demand. A premium gig bag is also included to keep your Volante Quilt HHFR safe when stored or while it’s in transport to your next gig.

SPECIFICATIONS

Body

• Body Style: Double Cut
• Body Shape: Volante
• Body Material: Alder
• Top: AAAA Quilt Maple Veneer
• Body Finish: Gloss Body, Satin Neck

Neck

• Profile: Kramer Elliptical C
• Scale Length: 647.7 mm / 25.5 in
• Fingerboard Material: Ebony
• Fingerboard Radius: Compound
• Neck Material: 3-piece Laminated Maple; Thermally Aged
• Neck Finish: Natural Satin
• Fret Count: 24
• Frets: Jumbo
• Nut Material: Floyd Rose R3 Locking; Rear Mounted
• Nut Width: 42.86 mm / 1.687 in
• Inlays: Mother of Pearl Diamond
• Joint: Bolt On with Ferrules and Kramer Keylock System

Hardware

• Finish: Black
• Bridge: Floyd Rose 1000 Series; Recessed
• Tuning Machines: Mini Die Cast
• Pickguard: 3-Ply Black/White/Black
• Truss Rod: Dual Action
• Control Knobs: Black Knurled Metal Dome
• Switch Tip: Black
• Control Covers: Black
• Strap Buttons: 2 - Black Nickel; Bottom and Upper Horn
• Pickup Covers: None

Electronics

• Neck Pickup: Kramer USA Neptune R Humbucker
• Bridge Pickup: Kramer USA Neptune T Humbucker
• Controls: Master Volume, Master Tone
• Pickup Selector: 5-way Blade Switch
• Output Jack: 1/4" Barrel Jack

Miscellaneous

• Strings Gauge: .009, .011, .016, .024, .032, .042
• Case: Premium Gig Bag
• Accessories: Floyd Rose Wrench Holder on Headstock Rear

Manufacturer: Kramer Guitar By Gibson
Model: KVOQHHUVBBF1
SKU: I794406-N-1-WHXC
UPC: 711106156989
