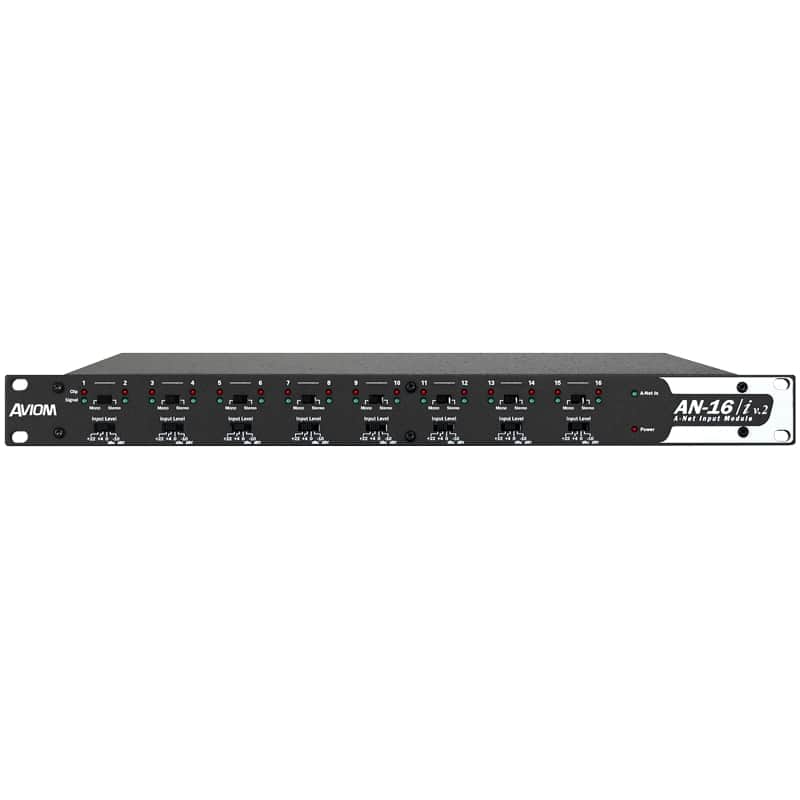

Aviom AN-16/i v.2 16 Channel Input Module

Simple Setup Powerful Performance - The Aviom AN-16/i v.2 16 Channel Input Module

The AN-16/i v.2 Input Module is used to connect up to 16 balanced line-level inputs from a mixing console's direct outputs, insert points, aux sends, and/or submixes to a personal mixing system. When used alone, one AN-16/i v.2 can generate a single 16-channel A-Net signal.

The A-Net In on the AN-16/i v.2 allows multiple Pro16 input devices (including console cards, AN-16/i-M, and the original AN-16/i) to be connected together to generate the higher channel count Pro16e™ version of A-Net used by the A640, A360, and A320 Personal Mixers.

• Sixteen balanced audio inputs (1/4-in TRS connectors)
• Sixteen balanced Thru connectors (TRS)
• A-Net In with four-position slot range selector switch
• Stereo Link switches for each channel pair
• Four-position gain switches (+22, +4, 0, -10dB)
• Signal present and clip LEDs per channel


SPECIFICATIONS

• Audio Inputs: 16, balanced line-level, 1/4-inch TRS connector
• Inputs Configuration: Tip: Audio +; Ring: Audio -; Sleeve: Ground
• TRS Thru: Impedance matched output
• Analog to Digital Conversion: 48kHz sample rate, 24 bit
• Frequency Response: 4Hz-22kHz
• A-Net In: One Category 5 (RJ45 connector), Four-position slot range selector switch for use with Pro16e A-Net
• A-Net Out: One Category 5 (RJ45 connector)
• Gain Settings: Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu
• Channel LED Indicators: Signal Present and Clip, per channel
• Line Inputs Impedance: 48k ohms
• Metering: LEDs; green: Signal Present, red: Clip; per channel
• Stereo Operation: Stereo Link, per channel pair; Two-position switch (Normal, Link)
• Maximum Input Level: +22dBu
• Input Impedance: 17.8k ohm
• Frequency Response: 4Hz-22kHz +0.2dB/-3dB
• THD +N: < 0.003%
• Crosstalk: -90dB
• Bit Error Rate (BER): 10(-12)
• Signal to Noise (unweighted): 90dB typical, A/D to D/A
• Measured from AN-16/i to AN-16/o Output Module
• Digital Outputs: A-Net: 1; RJ45 connector
• Pro16e A-Net: Use unshielded Cat-5e UTP (or better) cable
• Latency: <0.880 msec (measured from analog input to analog output)
• Power Supply: External, DC, universal switching type
• Input Voltage: 100-240 volts, 50/60Hz, 30VA
• Output Voltage: 18-24 VDC, 0.5 amp
• Plug Size: 2 mm
• Dimensions: 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
• Weight: 6.8 lb (3.08 kg)

Manufacturer: AVIOM
Model: AN-16/I V.2
SKU: I463556-N-1-WHXX
UPC: 850007957094
