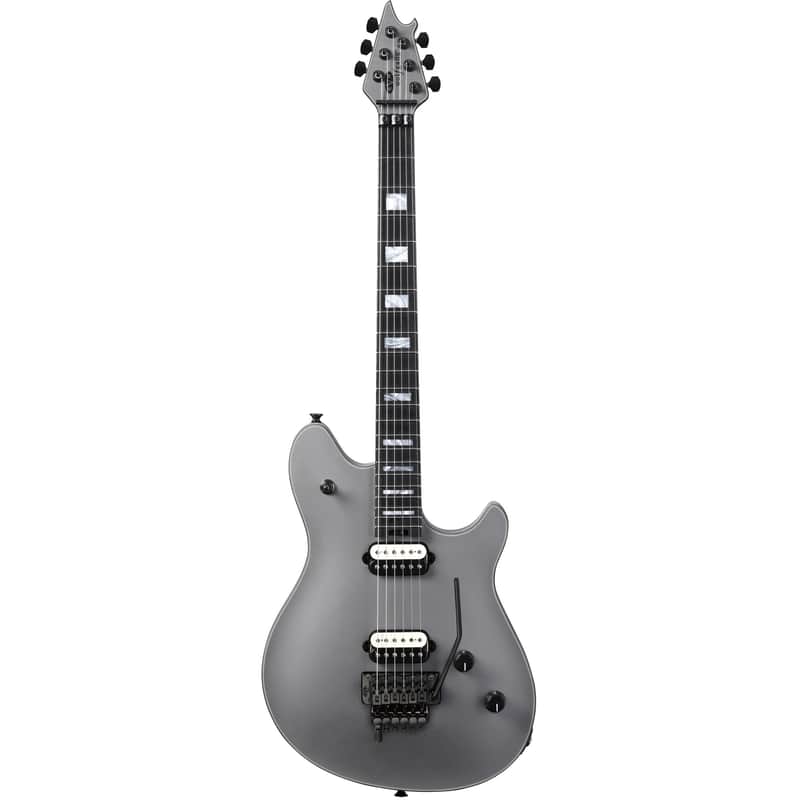

EVH Wolfgang USA, Ebony Fingerboard Electric Guitar - Stealth Grey

Experience Sonic Brilliance with the EVH Wolfgang USA, Ebony Fingerboard Electric Guitar in Stealth Gray

The original guitar that launched the line, the EVH Wolfgang® USA unleashes pure, unadulterated rock 'n' roll power.

Since its launch in 2007, the EVH brand has had one mission - to take the tools Eddie Van Halen uses to create his groundbreaking guitar work and place them in your hands.

Over 35 years of innovation and experience were injected into the creation of the original Wolfgang USA, which continues to unleash pure unadulterated rock 'n' roll power, titanic sound, speedy playability and stunning spotlight-ready style.

"Everything that I've built, destroyed, stumbled onto, learned and experienced is in this guitar," Eddie Van Halen said. "Every aspect and component of this guitar has been examined and upgraded to the highest standards possible: stainless steel frets, double-potted custom-wound pickups, five-piece binding on the matching body and headstock, custom-made signature tuning machines and Floyd Rose® bridge, new low-friction pots, and the list keeps going. We left no stone unturned."

The Wolfgang USA features a basswood body with either an arched big-leaf maple or 5A flame maple top, bolt-on quartersawn maple neck with graphite reinforcement, 12" - 16" compound radius ebony fingerboard with 22 vintage stainless steel frets and mother of pearl block inlays (dot inlays on Stealth), direct mount EVH Wolfgang USA zebra humbucking pickups, three-way toggle switching with reverse wiring, volume control with 500K EVH Bourns® low friction pot with treble bleed circuit, tone control with 250K EVH Bourns high friction pot, EVH-branded Floyd Rose® locking tremolo bridge with EVH D-Tuna® and EVH-branded Gotho® High Ratio die-cast tuners with white pearloid buttons.

SPECIFICATIONS

Body

• Body: Basswood
• Body Finish: Gloss Urethane
• Body Shape: Wolfgang®
• Body Binding: 5-Ply
• Body Material: Basswood

Neck

• Headstock: EVH® Wolfgang®
• Neck Material: Quartersawn Maple
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Wolfgang® Backshape
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Thickness: .805" at 3rd & .890" at 12th Fret
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Ebony
• Position Inlays: Mother of Pearl Block
• Scale Length: 25.5" (64.77 cm)
• Fret Size: Vintage Stainless Steel
• Number of Frets: 22
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• String Nut: Floyd Rose® R2 Locking
• Nut Width: 1.625" (41.3 mm)
• Nut Material: Floyd Rose® R2 Locking

Hardware

• Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
• Tremolo Block: Brass
• Pickup Covers: Zebra
• Control Knobs: Black Knurled with White Indicator
• Switch Tip: Black
• Hardware Finish: Black
• Tuning Machines: EVH®-Branded Gotoh®
• String Trees: Floyd Rose® Retainer Bar
• Tremolo Arms: Floyd Rose® 1000 Series Locking
• Strap Buttons: Oversized

Electronics

• Bridge Pickup: Direct Mount EVH® Wolfgang® USA Humbucking
• Neck Pickup: Direct Mount EVH® Wolfgang® USA Humbucking
• Pickup Configuration: HH
• Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
• Switching: EVH® Reverse-Style 3-Position Switching: Position 1: Neck Pickup, Position 2: Neck and Bridge, Position 3: Bridge

Miscellaneous

• Included Accessories: Tremolo Arm, Hex Keys & User Manual

Manufacturer: EVH
Model: 5107920822
SKU: I356355-N-2-WHXC
UPC: 885978186655
