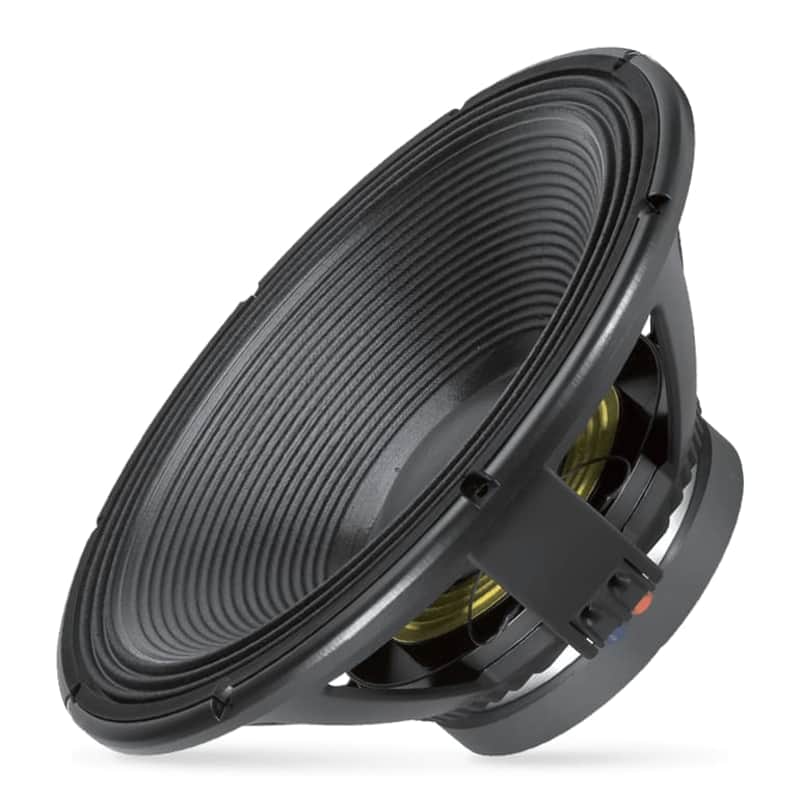

RCF L18P400 18-Inch 2000-Watt Replacement Woofer

Get Low Harmonic Distortion with the RCF L18P400 18-Inch 2000-Watt Replacement Woofer

Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 18-inch transducer within its application range. The L18P400 uses a fiber loaded cone assembly along with a high excursion triple roll, constant geometry surround. A fully optimized T-pole design generate the minimum amount of flux modulation. The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reaches its maximum excursion limits. Forced air venting system.

• 4-inch, fiberglass inside/outside copper voice coil
• 2000 W continuous program power handling
• 97.5 dB Sensitivity
• 25 Hz – 1 kHz Frequency range
• Aluminum demodulation ring
• Forced air ventilation and 15 mm top plate for minimum power compression
• Dual spider design with silicon based dampening control
• Triple-roll surround and corrugated straight cone geometry

SPECIFICATIONS

• Nominal Diameter: 18 inch / 457 mm
• Program Power: 2000 W
• Sensitivity: 97.5 dB
• Effective Piston Diameter: 395 / 15.55
• Minimum Impedance: 6.5 ohms
• Voice Coil Winding Material: Copper
• Number of Layers: 2
• Top Plate Thickness: 15 mm / .59 inch
• Surround Material: Polycotton
• Magnets: Ceramic
• Spider Dual with silicon based damping control
• Rated Impedance: 8 ohm
• Power Handling Capacity: 1000 W
• Frequency Range: 25 - 1000 Hz
• Max. Excursion Before Damage: 50 mm / 1.97 inch
• Voice Coil Diameter: 4 inch / 102 inch
• Voice Coil Length: 25 mm / .98 inch
• Kind of Layers: Inside / outside
• Cone Design: Straight
• Surround Design: Triple roll
• Dual-Force Air Ventilation: Yes

Thiele - Small Parameters

• Resonance Frequency (FS): 29 Hz
• Mechanical Factor: 7.60
• Total Factor: .28 Qts
• Effective Moving Mass (MMS): 200 G
• Effective Piston Area (SD): .12 m2
• Voice Coil Inductance at 1 KHz (LE1K): 1.20 mH
• DC Resistance (RE): 5.1 ohm
• Electrical Factor (QES): .29 Qes
• BL Factor (BL): 24.6 T x m
• Equivalent Cas Air Loaded (VAS): 340 liters
• Max. Linear Excursion (XMAX): 9 mm
• Half-Space Efficiency (EFF): 2.63 %

Mounting Information

• Overall Diameter: 465 mm / 18.31
• Bolt Hole Diameter: 7 mm / .28 inch
• Rear Mount Baffle Cut-Out: 425 mm / 16.73
• Bolt Circle Diameter: 442-447 mm / 17.4-14.6
• Front Mount Baffle Cut-Out: 424 mm / 16.69
• Volume Occupied by the Driver: 6 liters / .24 ft

Standard Compliance

• CE Marking: Yes

Size

• Weight: 13.5 kg / 29.76 pounds
• Diameter: 465 mm / 18.31 inches
• Height: 206 mm / 8.11

Shipping Information

• Package Width: 520 mm / 20.47 inches
• Package Height: 207 mm / 10.63
• Package Weight: 15.5 kg / 34.17
• Package Depth: 500 mm / 10.69

Manufacturer: RCF
Model: L18P400
SKU: I303211-N-3-WHXB
UPC: 701748808223
