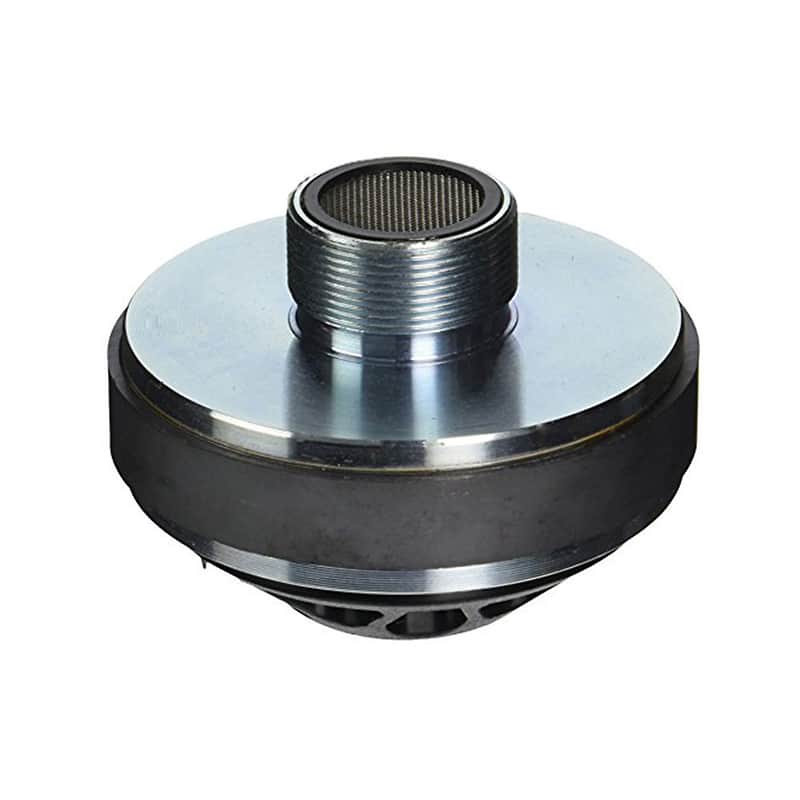

Peavey RX14™ Driver

The RX14 1" compression driver is known for excellent driver performance, reliability, and power handling. The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver. Ferrofluid cooling is used for improved reliability and smoother frequency response.

Features:

• Throat Parameter: .938" / 23.8 mm
• Nominal Impedance: 8 Ohms

• Minimum Impedance: 7.1 Ohms

• DC Resistance: 6.8 Ohms

• Power Capacity: 1000 Hz to 20,000 Hz: 120 W (peak) 60 W (program) 30 W (continuous)

• Sensitivity: 104 dB SPL 1 Watt at 1 meter On-axis on 90º H x 45º V horn

• Nominal Efficiency: 30%

• Frequency Response: 1.5 kHz to 20 kHz

• Recommended Crossover: 1,800 Hz at 12 dB / Octave

• Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave

• Diaphragm: Commercially pure titanium

• Voice Coil Diameter: 1.4" / 34.4 mm

• Voice Coil Material: Edge-wound ribbon with high temp Kapton bobbin

• Flux Density: 11,500 gauss (1.15T)

• Dimensions: 3.54" (90 mm) diameterx 2.40" (61 mm) depth

• Horn Coupling Diameter: .938" (23.8 mm)

• Horn Coupling Threads: Standard 1 3/8" / 18"

• Net Weight: 33.6 oz.

• Shipping Weight: 38 oz.

• Voice Coil Cooling: Ferrofluid

• Weight Unpacked: 2.26 lb (1.024 kg)

• Weight Packed: 2.26 lb (1.024 kg)

• Width Packed: 4.25" (10.795 cm)

• Height Packed: 4.25" (10.795 cm)

• Depth Packed: 3.25" (8.255 cm)
