From Dr. Scientist:


BitQuest

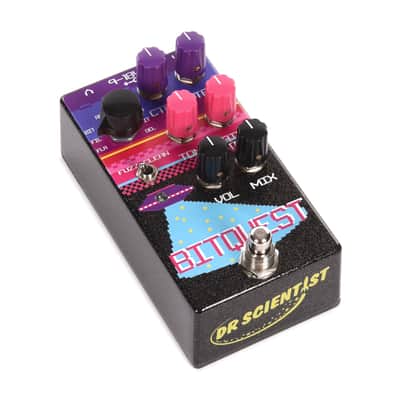

The BitQuest is a compact, multi-effects pedal featuring 8 fun and adventurous patches that can be used with or without a built-in digital fuzz. The patches on hand include a full featured flanger, high pass and low pass filters, a bit crusher with sample rate reducer, an infinite reverb, a deep notch filter, a ring modulator with reverb, a +/- 1 octave pitch shifter, and a wild glitch delay. Like all Dr. Scientist pedals, the BitQuest can be used with guitar, bass, synths, and many other instruments.

Features

• 8 custom programmed digital effects in 1 small box
• 24 Bit A/D conversion at 32kHz sample rate
• High quality analog signal path
• Premium parts and components throughout
• True Bypass with soft touch relay switching
• Full control over wet/dry mix
• Expression pedal control over CTRL1
• Top mounted audio and power jacks
• Designed and handmade in B.C., Canada

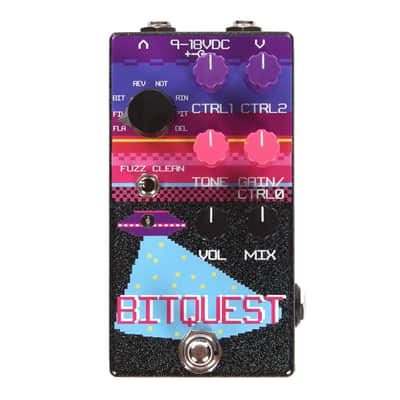

Knobs

• CTRL1 – Controls parameter 1 of the current patch (Also controllable by expression pedal)
• CTRL2 – Controls parameter 2 of the current patch
• TONE – Cuts or Boosts the high frequency content of the Effect (Wet) signal
• GAIN/CTRL0 – Controls parameter 0 of the current clean patch or gain of the current fuzz patch
• MIX – Adjusts the balance between Input (Dry) and Effect (Wet) signals
• VOL – Controls the Effect (Wet) signal level
• FUZZ/CLEAN – Toggles between Fuzz mode or Clean mode
• Patch selector – Choose between 1 of 8 effects
• Bypass – Engage or disengage the effect

Operation

• Input/Output Impedance: 500kΩ/1kΩ
• 100mA @ 9VDC, 200mA @ 18V, 2.1mm centre negative plug
• True Bypass with soft touch relay switching

Additional Specs

• Mono input, Mono output, TRS Expression input
• Tone Control: +/-15dB 2nd Order peaking filter centred at 3kHz
• Exp Input: TRS cable, 10kΩ to 100kΩ resistance
• 24 Bit A/D Converters at 32kHz sample rate
• Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)
