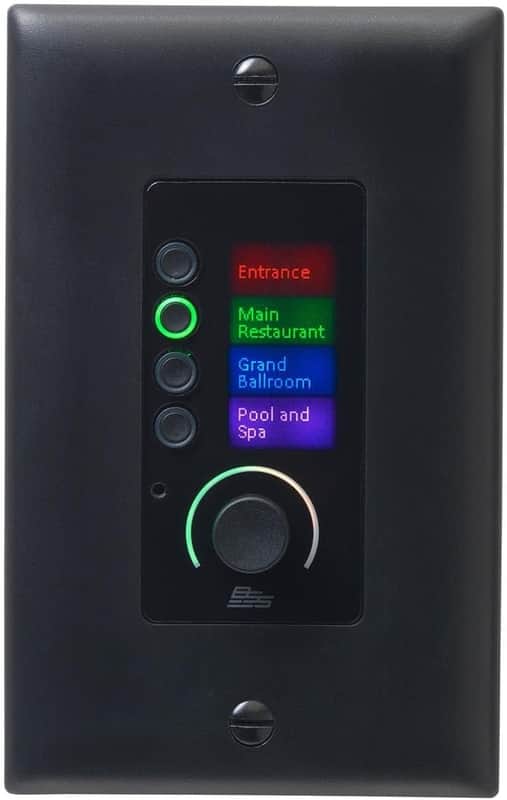

BSS EC-8BV-BLK Ethernet Controller With 8 Buttons and Volume - Black
The Soundweb Contrio EC-8BV is an Ethernet wall controller for use in Harman HiQnet systems. The EC-8BV can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers.
The EC-8BV is available in black or white, and in dual-gang US Decora or dual-gang EU form factor. The EC-8BV contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-8BV is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect.
The EC-8BV contains one push/rotary encoder, one encoder ring, eight buttons, and two LCD screens. The buttons, encoder ring, and LCD screens are multi-color backlit, capable of eight different colors with adjustable intensity.
The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.
The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated, the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed, the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).
The eight buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection.
The two LCD screens each have a screen resolution of 64x128 pixels, and can each display custom text.
The EC-8BV supports ‘sleep’ functionality. After a specified amount of time with no user input, the EC-8BV can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will ‘wake up’ the controller.
The EC-8BV can be remotely locked and unlocked via other control systems. The EC-8BV can be locally unlocked via a four-digit PIN entry on the buttons.
The EC-8BV supports multiple modes of operation. This allows the push/rotary encoder, encoder ring, and certain buttons to be reassigned dynamically to different parameters based on which buttons are selected.
SPECIFICATIONS
Ethernet Wall Controller
Compatible with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices
Available in Black or White
Available in US Decora or EU Version
Dual-Gang Size
PoE (Power Over Ethernet)
Configured within Audio Architect via Drag-and-Drop
1 Programmable Push/Rotary Encoder
1 Programmable Encoder Ring (Multicolored)
8 Programmable Buttons (Multicolored)
2 Programmable 64x128 Pixel LCDs (Multicolored)
Sleep Function
Security: Remote Lock/Unlock and Local Unlock via PIN Entry
Multiple Modes of Operation
Manufacturer: BSS Audio U.S.A.Model: EC-8BV-BLK-USSKU: I468144-GA251006-18-WHXEUPC: 691991600920We are Chuck Levin's Washington Music CenterSince 1958, Chuck Levin’s Washington Music Center has been the trusted destination for musicians and audio professionals across Maryland, Virginia, and Washington, D.C. Family-owned and operated, our legendary music store delivers Everything in Music®—from instruments and recording gear to pro audio, rentals, and repair services.Our team of musicians and industry experts lives and breathes gear, helping you build the perfect setup for your next performance, studio session, or installation. As an authorized dealer for top brands, we also offer our award-winning CHUCKSCLUSIVE line—exclusive, limited-edition instruments and collaborations recognized with the NAMM Top 100 Dealer Innovation Award for redefining what a music retail experience can be.Chuck Levin’s isn’t just a store—it’s a community built by players, engineers, and creators who share a lifelong passion for sound. Stop by our legendary Wheaton, MD showroom or contact us anytime for expert advice, product questions, or the best possible deal on your next piece of gear.
