Yamaha MGX12V W 18-Channel Digital Mixing Console All-White On-Camera Studio Bundle with HDMI 4K Video Capture, 2x DBR15 15-Inch 1,000W Powered Loudspeakers, and HPH-MT5W White Closed-Back Studio Monitor Headphones

Yamaha MGX12V W White Bundle: A Color-Matched HDMI Streaming PA Built Around a Digital Console

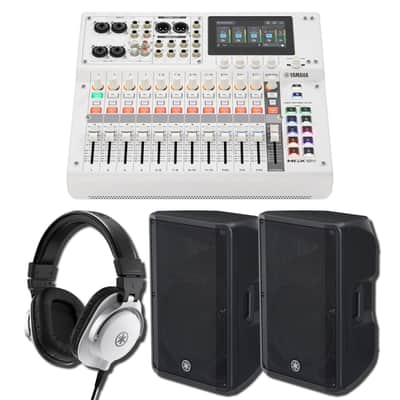

This all-white bundle pairs the Yamaha MGX12V W 18-channel digital mixing console with two DBR15 15-inch 1,000W powered loudspeakers and a set of HPH-MT5W white closed-back studio monitor headphones. It is built for the creator or small venue that runs live sound and a camera feed at the same time: the console captures HDMI video and a full multitrack mix to a PC, the DBR15 pair fills the room as front-of-house mains, and the white headphones give the operator private, accurate monitoring without a black headset breaking the look on camera. Everything in the box shares one white finish, so the rig reads as a deliberate set piece rather than a pile of borrowed gear.

HDMI 4K Capture and Pass-Through Put Mixed Audio and Camera on One PC

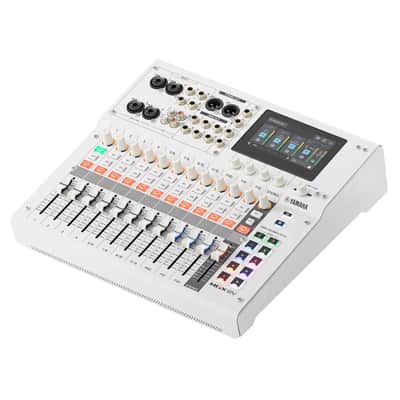

The MGX12V W is a digital console with a built-in HDMI-USB video interface. It captures and passes through HDMI at 4K/60fps and 1080p/240fps, so a camera plugs straight into the console and the PC receives both the video and the mixed audio over USB-C. For a worship stream, a video podcast, or a hybrid event, that removes the separate capture card and the audio-to-video sync headaches that come with wiring those boxes together. One USB-C cable to the computer carries an 18-in/18-out, 32-bit/96 kHz stream, while a second USB SUB port handles a parallel 2-in/2-out connection for control or a backup machine.

4 MGX Preamps, a 4.3-Inch Touchscreen, and Assistive Mixing for Fast Setups

Four MGX mic preamps with an 86 dB gain range and -128 dBu EIN give the console four clean inputs for hosts, singers, or instruments, with +48V phantom power for condensers. The 4.3-inch color touchscreen drives the whole workflow: Auto Gain sets input levels for you, Clip Safe catches overloads before they distort, and Scene Recall stores and restores an entire mix so the same show loads the same way every time. A full onboard DSP suite — gate, compressor, multi-band compression, REV-X reverb, Sweet Spot Morphing channel strip, ducker, and pitch correction — means the processing lives inside the console, not in an outboard rack. Eight customizable Sound Pads fire jingles and stingers on cue, and Bluetooth 5.0 streams backing tracks in wirelessly.

Two DBR15 15-Inch Powered Mains Deliver 1,000W and 132 dB SPL of Full-Range PA

The two DBR15 powered loudspeakers are the room-filling half of the rig. Each is a 2-way bi-amp design with a 15-inch woofer on a 2.5-inch voice coil and a 1.4-inch compression driver, driven by 1,000W of Class-D power for a 132 dB SPL peak and usable low end down to 50 Hz. FIR-X tuning keeps the crossover phase-coherent at 2.1 kHz, and onboard D-CONTOUR DSP offers FOH/MAIN and MONITOR presets, so the same cabinet works as a front-of-house main or, tilted on its 50-degree wedge angle, as a stage floor monitor. A 35 mm pole socket and M8 rigging points cover pole-mount and flown installs. Fed from the MGX12V W stereo XLR outputs, the pair gives a band, a DJ set, or a full-room worship mix the headroom to stay clean.

HPH-MT5W White Closed-Back Headphones for Private On-Camera Monitoring

The HPH-MT5W headphones are the monitoring tool that makes the white aesthetic complete. They use 40 mm dynamic drivers with CCAW voice coils tuned to Yamaha's reference monitor philosophy — a flat, honest 20 Hz - 20 kHz response that reveals problems in a mix instead of flattering it. The closed-back circumaural design isolates the operator from the room and keeps headphone bleed out of open mics during tracking, and the moveable earcups rotate for one-ear cueing. At 8.8 oz with a detachable 9.8 ft cable and a screw-on 1/4-inch adaptor, they stay comfortable across a long session and plug into any of the console's four headphone outputs. In white, they match the console and stay out of the way of the camera framing the operator.

How the White Console, Speakers, and Headphones Work as One Rig

The three pieces split the signal chain cleanly. Mics, instruments, and a camera feed go into the MGX12V W, which mixes the audio, captures the HDMI video, and sends both to a PC over USB-C. The console's stereo XLR outputs drive the two DBR15 mains so the live room hears the same mix. The four headphone outputs feed the HPH-MT5W cans plus up to three more headsets, so the operator and guests monitor privately while the speakers handle the audience. Because the console, speakers, and headphones all wear the same white finish, the rig reads as one intentional system on camera — nothing to source, nothing to color-match later.

Who This All-White Streaming PA Bundle Is For

First-time streamers get a complete hybrid setup in one purchase: a console that captures video and audio together, mains that fill the room, and accurate headphones for monitoring. Engineers upgrading from an analog mixer and a separate capture card gain scene recall, onboard DSP, dual USB-C, and a touchscreen workflow that loads the same show every time. Comparison shoppers who care about the on-camera look get the white-finish console paired with white headphones and the proven DBR15 platform — a color-matched rig where every component earns its place. Set it up, plug in, and go live.
