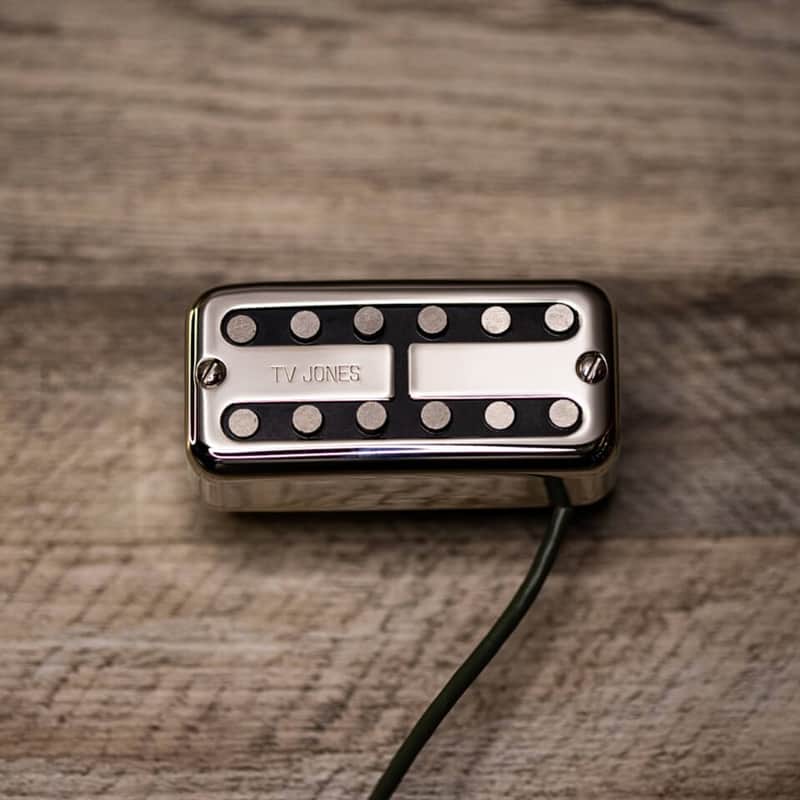

TV Jones Magna Tron Bridge Electric Guitar Pickup - Universal Mount, Nickel

Magna'Tron™ Bridge Pickup Universal Mount™

The Magna'Tron blends single-coil twang with unique Filter'Tron & DeArmond influence. Although it can sound just like a single-coil, it is built with two coils (humbucking). The dual-coils provide a hint of compression on the high-end and no 60-cycle hum. One part of the recipe that makes the Magna'Tron so special is its staggered cylinder Fender-style magnets.

• Position: Bridge
• Resistance: 8.0k
• Inductance: 2.92H
• Pole Spacing E to E: 2.03"
• Pole to Pole Spacing: .406"
• Recommended Pot Value: 500k

Tone/Characteristics

Bright and chirpy with quick attack and exceptional pop and clarity. The Magna'Tron delivers a unique mix of single-coil spank meets Filter'Tron style twang with no hum! Slightly brighter and tighter on the bass than the TV Classic.

Output/Power

DC Resistance is not entirely an indicator of true pickup output, although it can be helpful.

Bridge: DCR - 8.0k / Inductance - 2.92H

Neck: DCR - 4.8k / Inductance - 1.24H

Installation

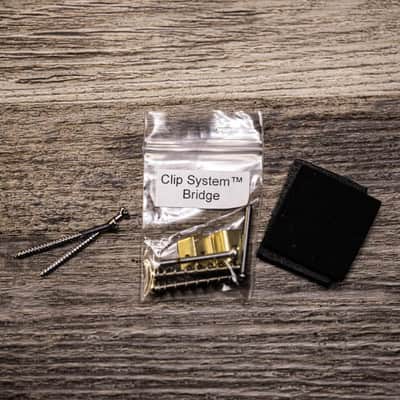

The Universal Mount is a direct drop-in replacement for guitars with standard sized Filter'Trons - with and without "ears" or "clips". This pickup comes standard with two pieces of compression rubber, 2 mounting (wood) screws, and 1 Universal Mount Clip Pack - which includes everything you will need to mount the pickups to a TV Jones ring or pickguard.

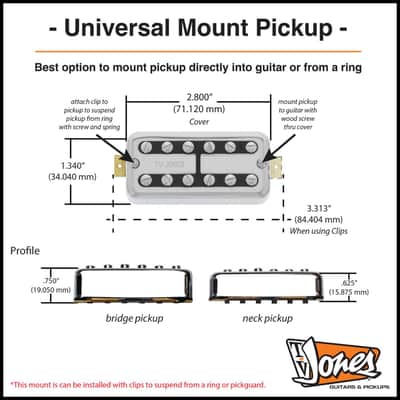

The Universal Mount can be installed two different ways:

• As a direct drop-in replacement for guitars with standard sized Filter'Trons – use wood screws and compression rubber
• As a replacement for a humbucker mount pickup – attach clips before installing pickup to ring or pickguard

NOTE: The Universal Mount requires one of the following TV Jones rings (unless suspending from a pickguard)
