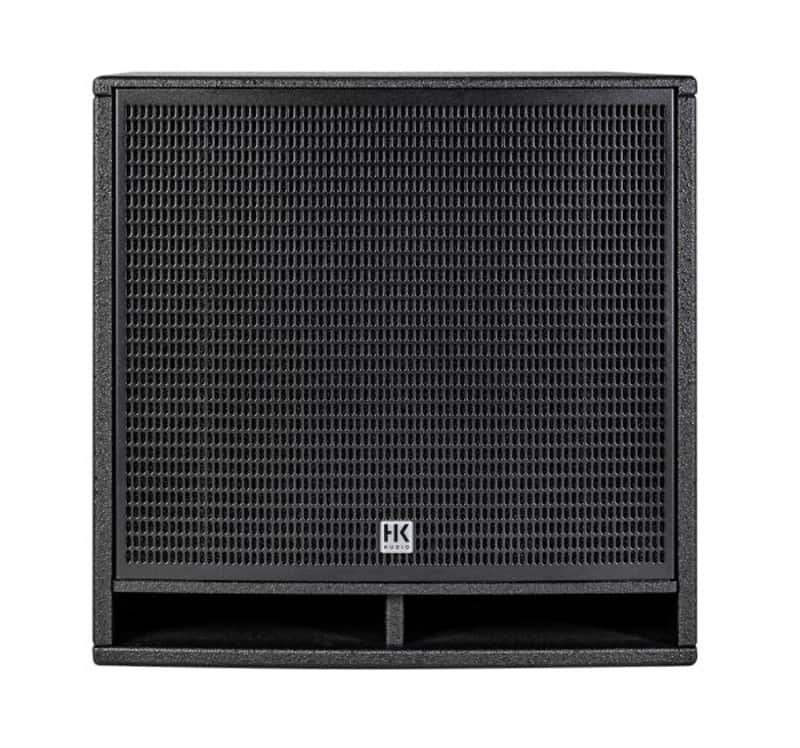

HK Audio FINEO-FO-S112-BLK 1200-Watt 12-Inch Install Sub Blk Reflex 8 Ohm

Very compact subwoofer with 12″ woofer, 2.5″ voice coil and 50 Hz tuning frequency. Ideal low-end support with powerful bass and high sound pressure as a system subwoofer or surround LFE for installations with compact speakers like the FO 5. Easy to integrate in environments with limited space. The cable feed-through on the rear, with cut-outs to the left, right or bottom, allows cables to be routed close to the wall, meaning the subwoofer can be placed against the wall without gaps. A secondary grille protects the bass reflex port from accidental or deliberate insertion of foreign objects. A ball-impact resistance certificate in line with DIN 18032-3 is provided for installations in sports facilities.

Technical Data

Characteristics:

• Concept: Passive subwoofer.
• Cabinet Principle: Bass reflex.
• Power Handling:
• • RMS: 600 W.
  • Program: 1200 W.
  • Peak: 2400 W.
• Nominal Impedance: 8 ohms (per EN 60268-5 standard).
• Max SPL:
• • Average: 116 dB (1 m, 10 % THD, 40 Hz - 100 Hz, full space).
  • Peak: 120 dB (1 m, 10 % THD, 65 Hz, full space).
• Sensitivity: 91 dB (1 W/1 m, 40 Hz - 100 Hz, full space).
• Frequency Range:
• • -6 dB: 61 Hz - crossover frequency.
  • -10 dB: 42 Hz - crossover frequency.
• Dispersion Angle: Omnidirectional.

Certifications:

• Ball Impact Resistance: Certified per DIN 18032-3 (MPA University Stuttgart).
• IP Protection Class: Not specified.

Components:

• Low-Frequency Driver: 1x 12" Sica cone speaker with ferrite magnet and 2.5" voice coil.
• Crossover: No internal crossover.

Connections:

• Input: 1 x NL4 Speakon.
• Output/Parallel Output: 1 x NL4 Speakon.
• Pin Assignment: 2+/- (input/parallel output), 1+/- (wired through).

Amping/DSP Presets:

• Supported Brands: Lab.Gruppen IPX, LEA Professional Sharkware.
• Filter Specifications: Available for Biamp Tesira, BSS, Lab.gruppen Lake, Linea Research, Marani, Powersoft, QSC Q-SYS, Symetrix.

Mechanical Data:

• Cabinet Material: MDF.
• Surface Finish: 1-component acrylic enamel.
• Color Options: Jet black (RAL 9005), signal white (RAL 9003), or special colors (per catalog).
• Front Grille: Steel front grille with anticorrosive coating, backed by acoustic foam and additional steel reinforcements.
• Secondary Grille: Insertion protection of the bass reflex port made of coated expanded metal.

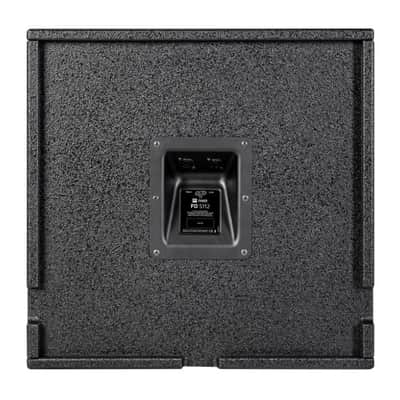

• Cable Routing: Cutouts on the back for cable routing close to a wall to the left, right, or below.
• Feet: 4 x rubber feet on the bottom.
• Dimensions (WxHxD): 474 x 478 x 506 mm (18.66" x 18.82" x 19.92").
• Weight: 24.5 kg (54.01 lbs).

Special Note B-Stock:

• This item is considered "B-Stock."
• B-Stock items are new instruments that did not get an A+ in QC.
• B-Stock is the closest to a new condition. There are very small blemishes categorized as “an inch or less”. Many times, these instruments are like new.
• They usually have minor cosmetic blemishes; none of these issues will affect overall playability.
