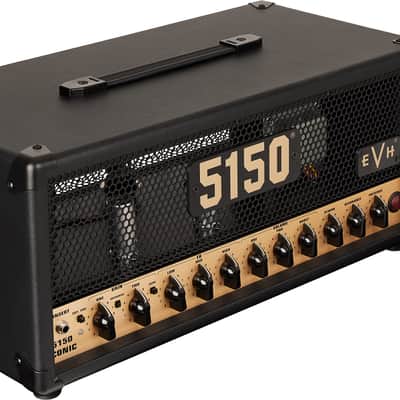

EVH 5150® Iconic® Series 15W EL34 Head, Black Model #: 2258200000

The EVH® 5150® Iconic® Series satisfies the needs of gigging and recording guitarists craving that powerful EVH tube tone, but at a more affordable price. Evolving from the revered EVH 5150III® amplifiers, the Iconic Series delivers the signature sound and growling gain that Eddie Van Halen made famous throughout his groundbreaking career.

Designed by renowned amp engineer, James Brown, the 5150® Iconic® Series 15-watt Head is powered by one EL34 power tube and voiced by a complex, multi-stage hybrid preamp section anchored by a duet of ECC83 tubes providing all the fire power the modern guitarist needs.

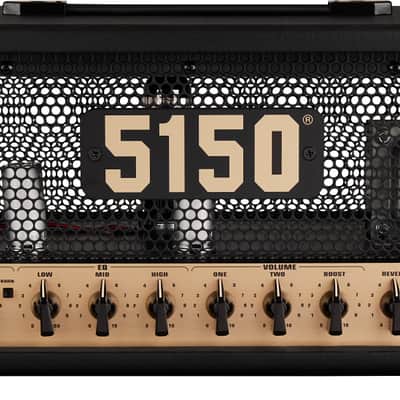

Punching above its weight, this head features two channels with an extra voicing on each for even more versatility. The Green channel boasts an overdrive button to run from clean tones to increased gain, while the Red channel’s burn button adds fiery crunch that’s ideal for blistering leads. Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The Boost control allows you to add another 10Db of foot-switchable volume to your tone - perfect for ensuring your solos cut through the mix.The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb to add the perfect amount of bounce and decay for any room.

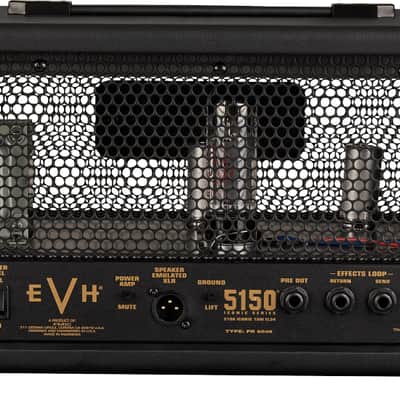

Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks, ¼ power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without destroying your neighbor’s solitude, and a speaker-emulated DI XLR with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system. Sporting sophisticated and distinctive EVH style, the 5150 Iconic Series 15-watt Head is wrapped in Black textured vinyl with a brushed gold anodized aluminum front panel and black steel grille featuring gold and black 5150 and EVH logo badges. This This tube head is finished off with a brushed gold anodized aluminum control panel, vintage-style chicken-head knobs and molded black plastic top handle.

General

Series

Iconic®

Color

Black

Amplifier Type

Tube

Country Of Origin

ID

Electronics

Control Panel

Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Shared Low, Mid, High EQ; Channel 1/Channel 2 Volumes; Global Master Boost; Global Reverb, Resonance and Presence

Inputs

One - 1/4"

Auxiliary Input

1/8 in (3.5 mm) Stereo

Headphone Jack

1/8” Stereo Speaker Emulated Headphone Output

Line Out

One - (1/8" Stereo)

Channels

Two - Clean/Overdrive and Lead/Burn

Effects

Reverb

Effects Loop

1/4" (Send/Return)

Connection Type

1/4"

Voltage

120V

Wattage

15 Watts

Hardware

Control Knobs

Black Chicken-Head Style Pointer

Amplifier Covering

Blonde Textured Vinyl

Cabinet Material

MDF

Grille Cloth

NA

Handle

Molded Plastic Strap with Black Powder Coated Caps

Amplifier Jewel

Red LED

Speaker Jack

Two - 1/4" Parallel

Front Panel

Gold Anodized

Speakers

Total Impedance

4, 8, or 16 ohms

Tubes

Power Tubes

1 X EL34

Preamp Tubes

2 x ECC83S

Measurements

Shipping Dimensions

14.10x14.10x24.00 IN

Shipping Weight

30.15 LB

Shipping Length

24.00 IN

Shipping Height

14.10 IN

Shipping Width

14.10 IN

Accessories

Included Accessories

2-Button Footswitch, IEC Power Cable, Owner's Manual

Footswitch

2-Button Footswitch Included
