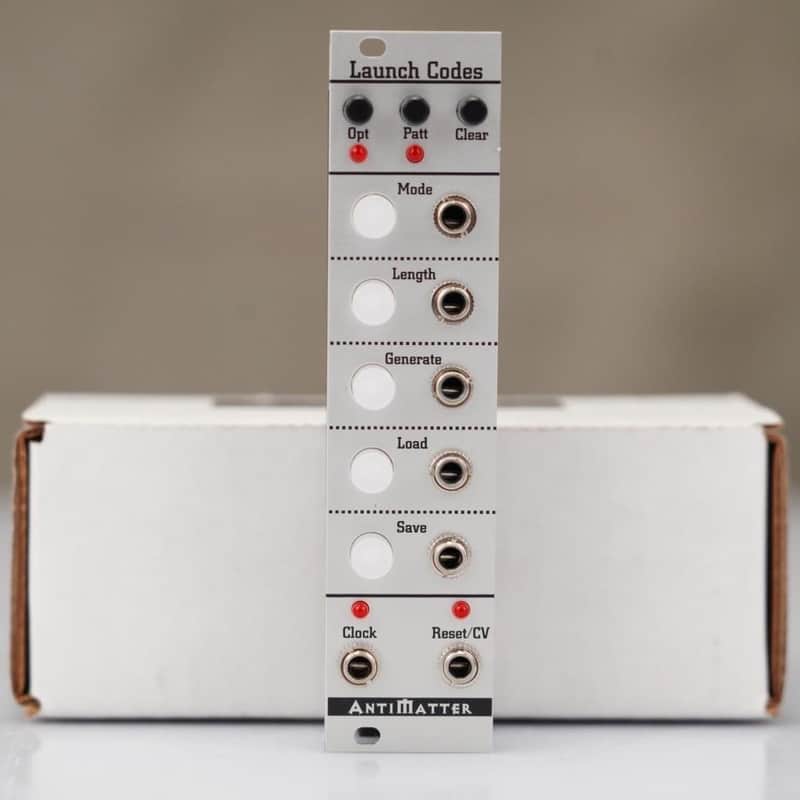

Antimatter Audio Launch Codes Eurorack Module w/ Tiptop Stackable #58535

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58535

BRAND: Antimatter Audio

MODEL:  Launch Codes

FUNCTION: Eurorack Synthesizer Module

PRODUCT DESCRIPTION: This listing is for an Antimatter Audio Launch Codes Expander Eurorack Synthesizer Module. The Antimatter Audio Launch Codes Expander (also known as the Antimatter Audio Code Switch) is a 4HP Eurorack expansion module designed to add switching and multiplying capabilities to the main Antimatter Audio Launch Codes sequencer. It allows users to sequence complex signal switching for audio, triggers, or clocks using the five gate outputs of the parent module.

SPECS:

• Switching/Multing: Provides 8 in/out switches that can also function as multiples (mults) for the designated Launch Codes channels when the switch is not active.
• Control Integration: These switches are directly controlled by the five channels of the Antimatter Audio Launch Codes module, specifically when they are in gate mode.
• Form Factor: The module is 4HP wide and skiff-friendly in depth.
• Power Consumption: It draws 10mA at both +12V and -12V.
• Connectivity: It uses standard 3.5 mm connectors and includes a 6-pin connector cable for linking to the main sequencer.
• Gating Streams: Rhythmically gate chaotic trigger or clock streams to create complex logic or timing patterns without needing multiple external modules.
• Signal Routing: Sequence the switching of different outputs from a single module, such as various waveforms from an oscillator or different modes of a filter.
• Modulation Control: Route an LFO or FM source through the switches to sequence when modulation is applied to another module.
• Effect Sends: Use the switches to create sequenced sends to external effects such as delay or distortion.

ACCESSORIES INCLUDED: This item comes as seen in photos and includes the original Antimattter box and..

• Eurorack Power Cable

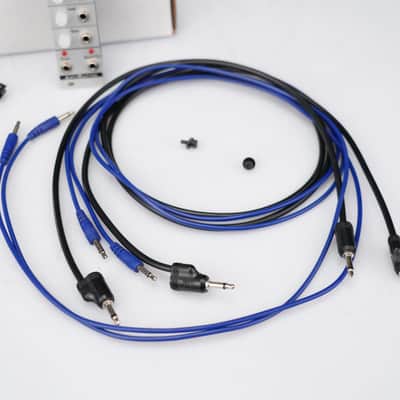

• (4) Eurorack Patch Cables
• (2) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 9" x 4" x 9"
