Malekko DIN Sync Expander Euro Module w/ 3.5mm TRS to 5-Pin MIDI Cables #58532

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58532

BRAND: Malekko Heavy Industry

MODEL:  DIN Sync Expander

FUNCTION: Eurorack Synthesizer Module

PRODUCT DESCRIPTION: This listing is for a Malekko Heavy Industry DIN Sync Expander Eurorack Synthesizer Module. The Malekko Heavy Industry DIN Sync Expander is a 4HP Eurorack module designed specifically as an add-on for the Malekko Heavy Industry Sync USB/MIDI interface. It provides four dedicated DIN Sync outputs to synchronize external vintage hardware or other modular gear with your main system.

SPECS:

• Four Output Channels: Provides four independent DIN Sync outputs for interfacing with external hardware.
• Selectable Clock Division: Each output features a dedicated switch to divide the incoming clock by 1, 2, or 4.
• Host Connectivity: It must be used with the Malekko Heavy Industry Sync module and connects via an included 6-pin expansion cable.
• Clock Source: Incoming clock data from a computer or external MIDI device connected to the main Sync module is distributed to the DIN outputs.
• Width: 4HP.
• Depth: 35mm.
• Current Draw: 9mA at +12V and 2mA at -12V.
• Signal Level: 0-5V Logic I/O for internal and external signals.

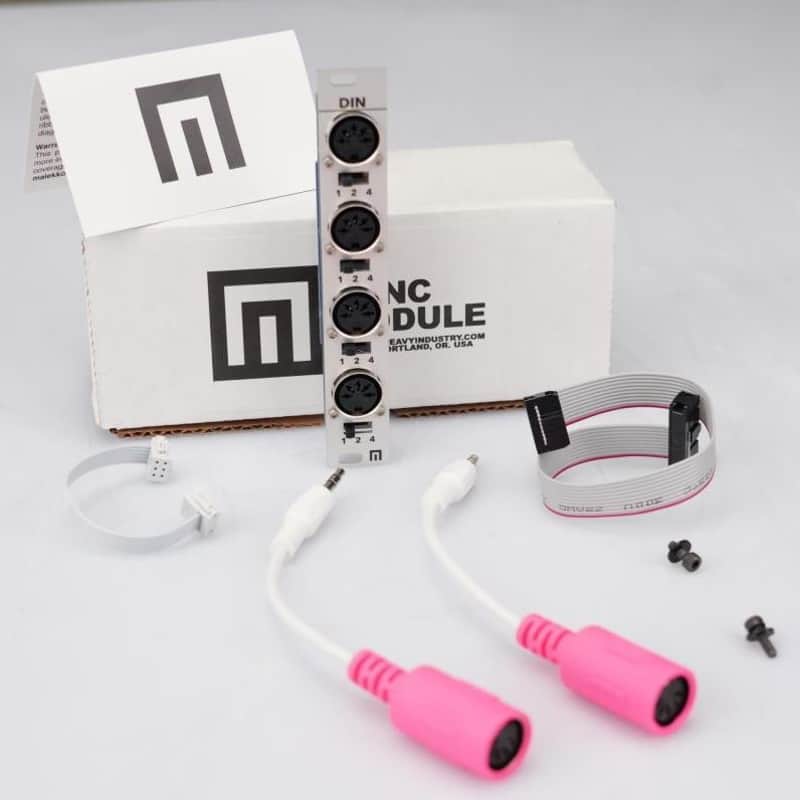

ACCESSORIES INCLUDED: This item comes as seen in photos and includes the original Malekko box and...

• (1) Eurorack Power Cable

• (1) 6-PIN Eurorack SYNC Connector
• (2) 3.5mm TRS to 5-Pin MIDI DIN Adapter Cables
• (2) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 7" x 3" x 3"
