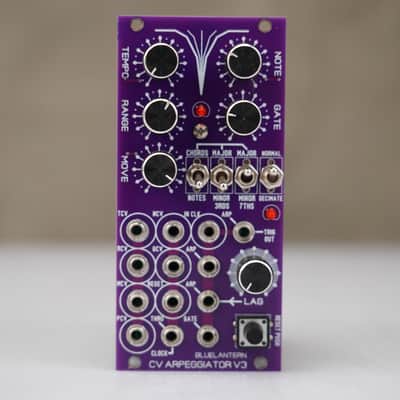

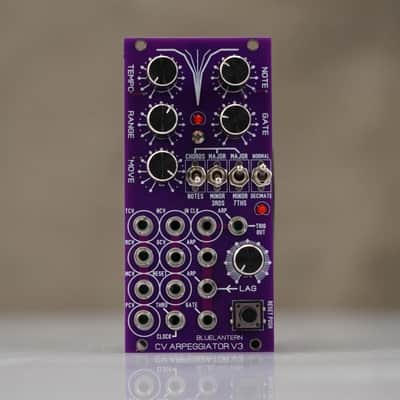

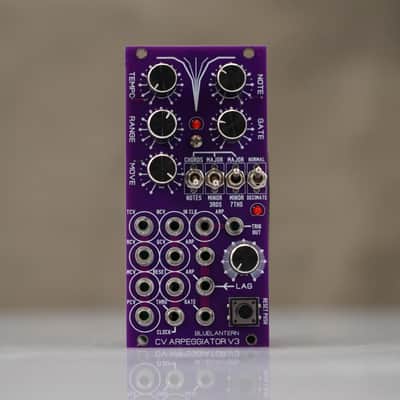

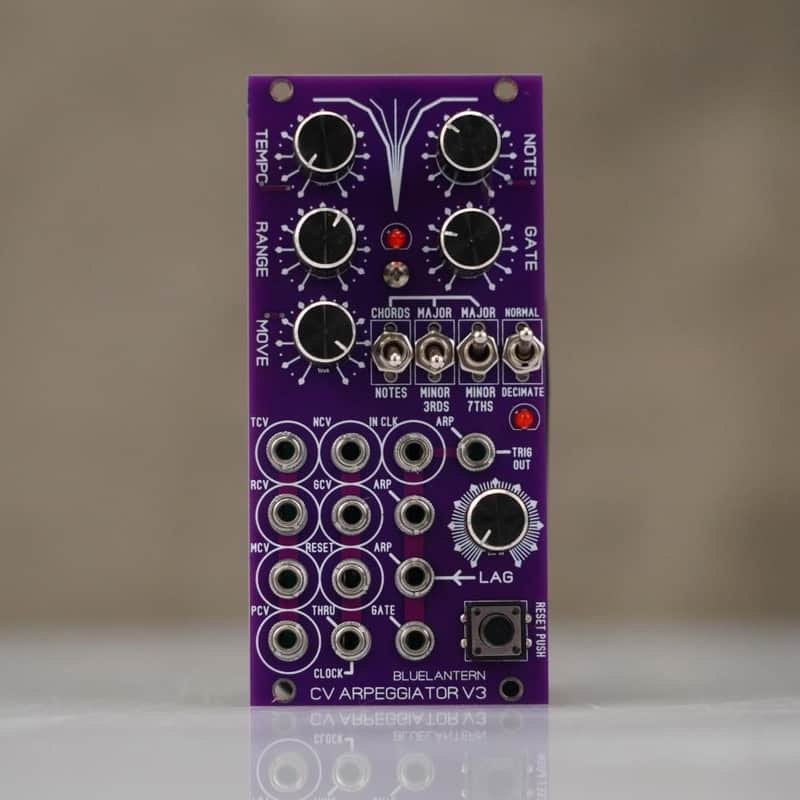

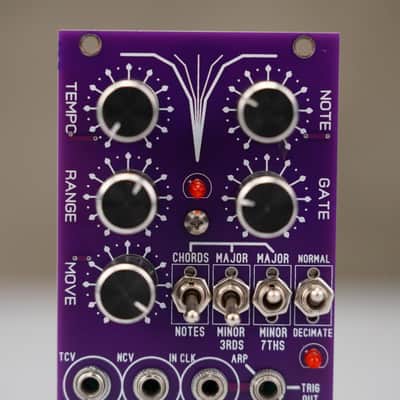

Blue Lantern CV Arpeggiator V3 Eurorack Synthesizer Module #58466

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent. All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58466

BRAND: Blue Lantern

MODEL: CV Arpeggiator V3

FUNCTION: Eurorack Synthesizer Module

PRODUCT DESCRIPTION: This listing is for a Blue Lantern CV Arpeggiator V3 Eurorack Synthesizer Module. The Blue Lantern CV Arpeggiator V3 is a digital-based Eurorack module, often based on Barton Musical Circuits code, designed to create looping arpeggio patterns from incoming CV, supporting major, minor, and 7th chord types. It features voltage-controlled parameters, including movement modes (up, down, random) and a dedicated lag/portamento function on the second output.

SPECS:

• Arpeggio Modes: Offers classic movements including up, down, alternating, pendulum (reverses direction), and a random function that moves through note sets unpredictably.

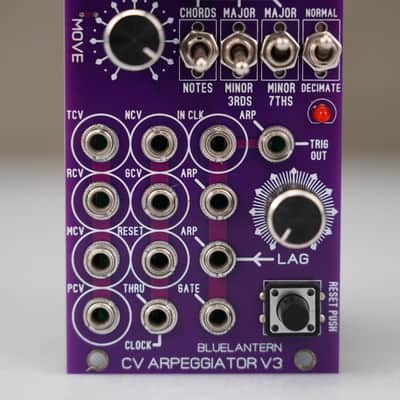

• Dual Arpeggio Outputs: Features two distinct CV outputs. Output one includes a lag (portamento) circuit for smooth note transitions, while output two features a digital aliasing/decimator effect that can be toggled on to create metallic, ring-mod-like tones.
• Note and Chord Selection: Includes switches to control each note in a pattern, with options for major/minor triads and 7ths.
• Voltage Control: Every knob parameter—including Tempo, Range, Movement, Note, and Gate length—is CV controllable via -5V to +5V signals, with the exception of the lag knob.
• Internal/External Clock: Features an internal clock with a dedicated LED and a clock input that allows the Tempo knob to act as a clock divider when an external signal is patched.
• Width: 12 HP.

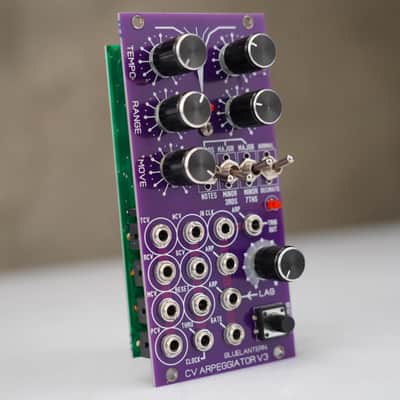

• Depth: 1.5 inches (approx. 38mm), making it skiff-compatible.
• Current Draw: Typically 37–38 mA on the +12V rail and 32 mA on the -12V rail; it does not require a +5V power supply.

ACCESSORIES INCLUDED:

• Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 5" x 2" x 3"
