WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58533

BRAND: Malekko Heavy Industry

MODEL:  SND/RTN

FUNCTION: Eurorack Synthesizer Module

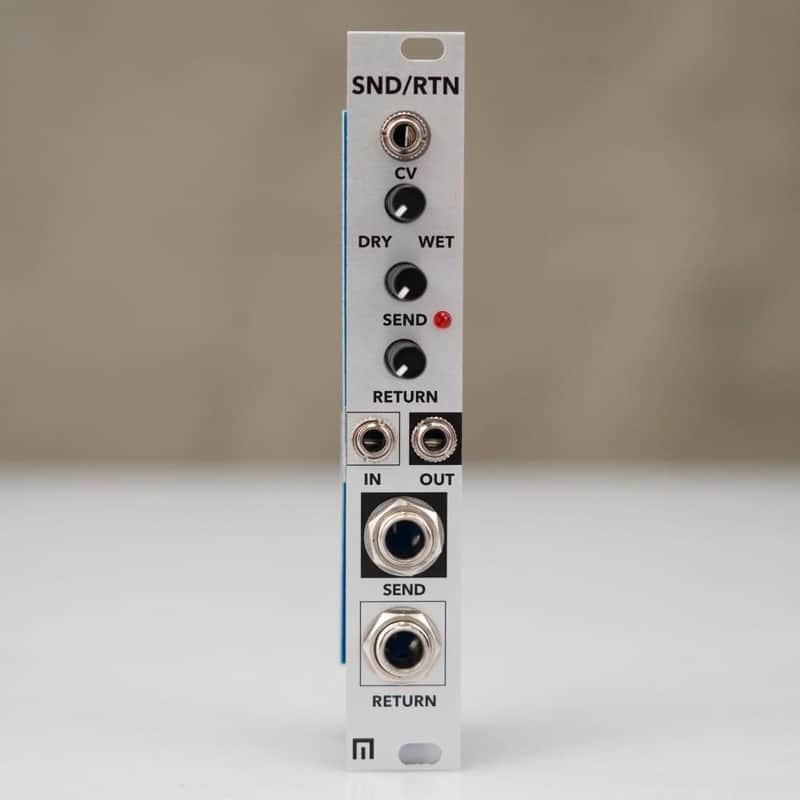

PRODUCT DESCRIPTION: This listing is for a Malekko Heavy Industry SND/RTN Eurorack Synthesizer Module. The Malekko Heavy Industry SND/RTN is a compact 4HP Eurorack module designed to interface external effects pedals or pro-audio gear with a modular synthesizer system. It provides 1/4" jacks for send and return routing, allowing you to easily incorporate instrument or line-level hardware into your signal path.

SPECS:

• The module is primarily used as an external FX loop with dedicated controls for gain staging and blending.
• Audio Connectivity: Features standard 3.5mm Eurorack I/O for the internal signal and 1/4" TRS jacks for external connections.
• Control Parameters: Includes manual knobs for Send level, Return level, and a Dry/Wet mix.
• Voltage Control: The Dry/Wet mix is voltage controllable via a dedicated CV input, allowing for dynamic effect blending.
• Visual Indicators: Equipped with a Clip LED to help monitor input levels and prevent unwanted distortion.
• Physical Dimensions: According to ModularGrid and the product manual, the module is 4HP wide and 30mm deep.
• Power Consumption: Draws 21mA from the +12V rail and 19mA from the -12V rail.

ACCESSORIES INCLUDED: This item comes as seen in photos and includes a module box.

EXTRAS INCLUDED:

• (1) Eurorack Power Cable

• (2) Tiptop Stacking Patch Cables
• 1-1/8" to 1/4" Patch Cable
• (2) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 6" x 3" x 4"
