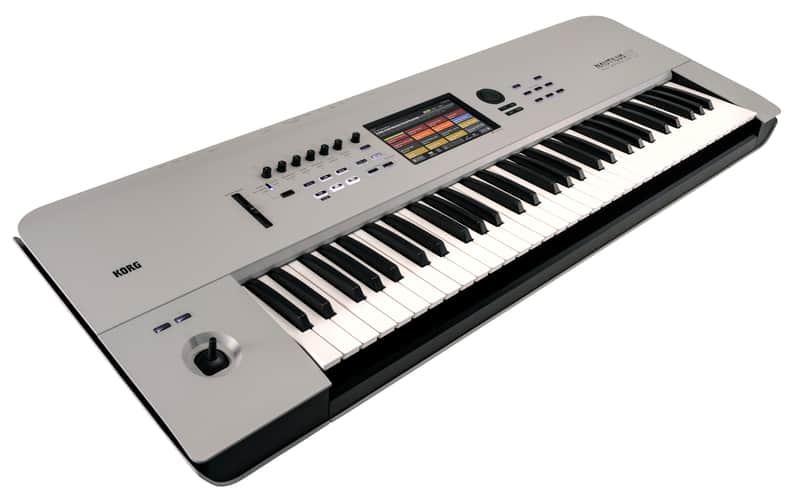

Korg NAUTILUS AT Music Workstation - 61-Key (B-Stock)

Powering new heights of musical expression

NAUTILUS is KORG’s flagship workstation. The successor to the wildly popular KRONOS, the range now includes two new AT models. Available in 61 and 88-key versions, NAUTILUS AT introduces Aftertouch to the lineup, putting new heights of musical expression at your fingertips.

NAUTILUS AT features an expertly-tuned sound library that brings exciting aftertouch-controlled effects to the existing programs, meaning you can fully embrace the expressive capabilities of Aftertouch right out of the box.

Aftertouch, in combination with initial touch and the DYNAMICS knob (giving instant control over the changes in sound) opens a wide range of musical expression in just one instrument. Combined, these features truly unlock the full potential of nine powerful sound engines, and a vast array of other features on NAUTILUS.

NAUTILUS AT comes in two versions: an 88-key model with a premium weighted RH3 keyboard for an incredible piano feel, and a 61-key model with a light, responsive and smooth synthesizer keyboard feel.

(*) NAUTILUS-73 does not have an AT version.

Flagship model, Premium quality

NAUTILUS is manufactured in Japan to the highest levels of quality. The 88-key model uses the critically acclaimed RH-3 piano keyboard, a four-stage weighted hammer action keybed that provides an extremely realistic piano feel for even the most discerning of players. RH-3 keyboards are gradually weighted, meaning that the lower notes are heavier, and the higher notes lighter for superb playability. The 61-key NAUTILUS AT features a synthesizer keyboard with a light touch able to reproduce the most complex of performances reliably and with the smoothest feel.

As part of the wider NAUTILUS range, it’s easy to identify aftertouch-equipped models thanks to the AT mark above the NAUTILUS logo on the front panel.

SPECIFICATIONS:

KEYBOARD:

88 key: RH3 (Real Weighted Hammer Action 3)*

61 key: Natural Touch Semi Weighted*

*Supports Velocity sensitive and aftertouch.

* Difference is only aftertouch, specifications are exactly the same as the standard model.

SYNTHESIS TYPES:

- SGX-2: Premium Piano (Acoustic Piano)

- EP-1: MDS Electric Piano (Electric Piano)

- HD-1: High Definition Synthesizer (PCM)

- AL-1: Analog Synthesizer (Analog Modeling)

- CX-3: Tonewheel Organ (Tonewheel Organ Modeling)

- STR-1: Plucked String (Physical Modeling)

- MOD-7: Waveshaping VPM Synthesizer (VPM Synthesis)

- MS-20EX: Component Modeling Technology (Analog Modeling)

- PolysixEX: Component Modeling Technology (CMT Analog Modeling)

MAXIMUM POLYPHONY:

- SGX-2: 100 voices (100 dual-stereo notes)

- EP-1: 104 voices

- HD-1: 140 voices

- AL-1: 80 voices

- CX-3: 200 voices

- STR-1: 40 voices

- MOD-7: 52 voices

- MS-20EX: 40 voices

- PolysixEX: 180 voices

PRESET PCM RAM:

- RAM: 496 MB

- DISK: 2.3G (ROM 1,771 Multisamples, 3,955 Drumsamples)

BUILT-IN EXPANSION PCM LIBRARIES:

- EXs301: German2 D Piano

- EXs302: Italian F Piano

- EXs303: Japanese Upright U Piano

- EXs304: Prepared Piano

- EXs305: Historical Keyboards

- EXs306: Vintage Keyboards 2

- EXs307: Strings & Synths

- EXs308: Guitar Collection

- EXs309: Bass Collection

- EXs310: World Essence

- EXs311: Background Loops

- EXs312: SFX & Hits

- EXs313: Found Percussions

- EXs314: Expansion Drums

PCM RAM CAPACITY: Approximately 2GB

WAVE SEQUENCES:

- 598 User memory

- 377 Preload

- Support for stereo multisamples, synchronization of individual notes, and tempo-based settings.

SGX-2 PROGRAM - PREMIUM PIANO:

- Full key stereo sampling, Chromatically sampled at up to 12 velocity levels, no looping.

- Damper resonance and mechanical noise are reproduced.

- Una Corda sample support

EP-1 PROGRAM - MDS ELECTRIC PIANO:

- Tine and reed-type electric pianos powered by Multi-Dimensional Synthesis (MDS), and vintage effects.

- Electric Piano Model Types: 7

- Oscillator Control: Harmonic Sound Level, Attack Noise, Level, Release Noise Level, Attack Brightness, Hammer Width

- Panel Control: Tine Type, Preamp Volume, Tone (Treble, Bass), Vibrate (On/Off, Intensity, Speed), Amp/Cabinet (On/Off, Drive), Reed Type, Preamp Volume, Tone (Treble, Bass), Vibrate (Intensity, Speed), Amp/Cabinet (On/Off, Drive)

- Effect Types: 9

HD-1 PROGRAM - HIGH DEFINITION SYNTHESIZER:

- Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.

- Structure: Single, Double, Drums, Double Drums

- Oscillators: 8 velocity zones per oscillator, with switching, crossfades and layering

- Filters: Two multi-mode filters per voice

- Driver: Per voice non-linear driver and low boost circuit

- EQ: Three bands, with sweep-able mid

AL-1 PROGRAM - ANALOG SYNTHESIZER:

- Ultra-low-aliasing oscillators, VCO1, VCO2, Ring Mod, Pink and White Noise Generator

- Audio Input: Run real-time audio through the synthesis engine and ESP (External Signal Processor)

- Filters: 12dB/octave High Pass and Low Pass self-resonant filters

CX-3 PROGRAM - TONEWHEEL ORGAN:

- Phase-synchronous tonewheels (clean and vintage modes), percussion, key click, wheel brake

- EX Mode: Four additional, user-specified drawbars, and expanded percussion

- Internal Effects: Rotary speaker, vibrato/chorus, amp modeling with overdrive, 3-band EQ

STR-1 PROGRAM - PLUCKED STRING:

- Includes physically modeled damping, decay, dispersion, nonlinearity, harmonics, dual pickups, and more.

- Most string parameters can be controlled in realtime

- String Excitation: Three independent excitation sources can be used simultaneously - Pluck, Noise, and PCM.

MOD-7 PROGRAM - WAVESHAPING VPM SYNTHESIZER:

- Combines Variable Phase Modulation (VPM), Waveshaping ring modulation, PCM sample playback, and subtractive synthesis.

- Oscillators: 6 VPM/Waveshaper/Ring Modulation Oscillators

- PCM Oscillator: KORG’s ultra-low-aliasing technology, 4 velocity zones per oscillator

- Audio Input: Run real-time audio through the VPM Oscillators and filters.

MS-20EX PROGRAM - COMPONENT MODELING TECHNOLOGY:

- Ultra-low-aliasing oscillators: VCO1, VCO2, Ring Mod, Pink and White Noise Generator

- Audio Input: Run real-time audio through the synthesis engine and ESP (External Signal Processor)

- Filters: 12dB/octave High Pass and Low Pass self-resonant filters

POLYSIXEX PROGRAM - COMPONENT MODELING TECHNOLOGY:

- Oscillators: VCO (Saw, Pulse, PWM) and Sub Oscillator

- Filter: 24dB(4-Pole) Octave Low Pass self-resonant filter

- Effects: Integrated Polysix Chorus, Phaser, and Ensemble

- Arpeggiator: Integrated MIDI-synced arpeggiator

NUMBER OF TIMBRES, MASTER KEYBOARD FUNCTIONALITY: 16 Maximum

SAMPlING:

- Bit Depth/Sampling Frequency: RAM - 16-bit/48 kHz stereo/mono sampling, DISK - 16 or 24-bit/48 kHz

- Sampling Time: RAM - Depends on the amount of available PCM RAM, DISK - Maximum 80 minutes stereo (879MB: 16bit)

- Sample Locations: 16,000 samples/4,000 multisamples (128 indexes per multisample)

EFFECTS:

- Insert Effects: 12

- Master Effects: 2

- Total Effects: 2

- Effect Types: 197

- Modulation: Dynamic Modulation and Common LFO

- Effects

Control Busses: Stereo side-chaining for compressors, gates, vocoders, etc

- Effect Presets: Total 783 preset, Maximum 32 per 1 effect (Preset User)

ARPEGGIATOR:

- Arpeggiator Modules: One module in Program mode, two modules in Combination and Sequencer modes

- Arpeggio Pattern: 5 presets + ARP A 2,048 slots + ARP B 128 slots

- Controllers: On/Off, Latch, Gate, Velocity, Length, Swing, Tempo

SEQUENCER / HDR:

- Tracks: 16-track MIDI sequencer + 16-track hard disk recorder + 1 master track

- Number of Songs: 200

- Resolution: 1/480

- Tempo: 40.00 – 300.00 (1/100 BPM resolution)

- Maximum Memory: 400,000 MIDI events or 300,000 audio events

- Audio Tracks: 16-track playback, 4-track simultaneous recording, WAV file format 16bit/24bit

GENERAL:

- Outputs: L/MONO, R, Individual 1-4, Headphones

- Inputs: Audio Inputs 1 and 2, USB-B

- Control Inputs: Damper pedal (half damper supported), Assignable switch, Assignable pedal

- MIDI: In, Out, Thru

- USB: USB A (TYPE A), USB B (TYPE B)

- Disk Drives: 60 GB SSD (2.5”)

- Power Supply: AC power supply terminal, Power switch

- Power Consumption: 40 W

- Accessories: AC cord, Quick Start Guide

- Options: XVP-20: Expression/Volume Pedal, EXP-2: Foot Controller, DS-1H: Damper Pedal, PS-1: Pedal Switch, PS-3: Pedal Switch
