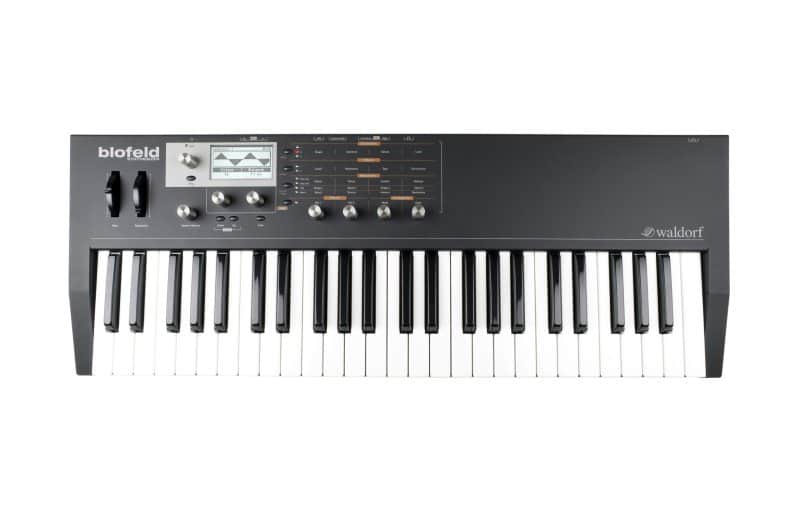

The Waldorf Blofeld Keyboard is a 49-key digital synthesizer with the Blofeld engine (virtual analog, wavetable, and sample oscillators) in a metal chassis with an internal power supply (Black). Compared with the desktop module, it adds a playable keyboard, aftertouch, and 60 MB of non-volatile sample memory you can blend into synthesis.

Sound engine

Three oscillators per voice cover Q-style VA models, Microwave wavetables, and sample playback. Two multimode filters, drive stages, LFOs, envelopes, and a strong arpeggiator match the Blofeld module's architecture, while sample memory lets you add attacks, noise, or other layers that stay stored in the instrument.

Performance

The 49-key board is velocity- and aftertouch-sensitive, with pitch bend and mod wheels, octave buttons, a sustain pedal jack, and a freely programmable button. Stainless endless dials and a graphic display support live tweaks; MIDI In/Out and USB MIDI connect to the rest of the rig.

Specifications

• Type: 49-key digital synthesizer
• Keys: 49, velocity and aftertouch
• Polyphony: Up to 25 voices
• Multitimbral: 16 parts
• Oscillators: 3 per voice (VA, Microwave wavetables, sample playback)
• Sample memory: 60 MB non-volatile
• Filters: 2 independent multimode filters per voice
• Controllers: Pitch bend, mod wheel, sustain pedal jack
• I/O: Stereo out, headphone, MIDI In/Out, USB MIDI
• Power: Internal PSU (100 to 240 V)
• Finish: Black
• Dimensions: 740 × 275 × 100 mm (29.13" × 10.83" × 3.94"), including knobs
• Weight: 8 kg (17.6 lb)

In the Box

• Blofeld Keyboard synthesizer
• Power cable
