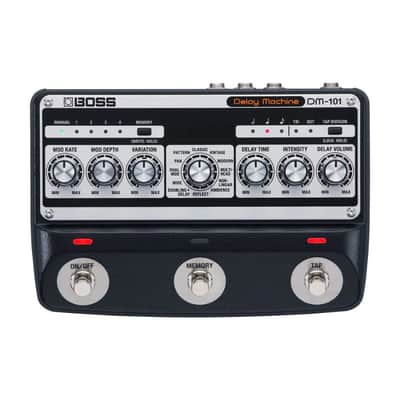

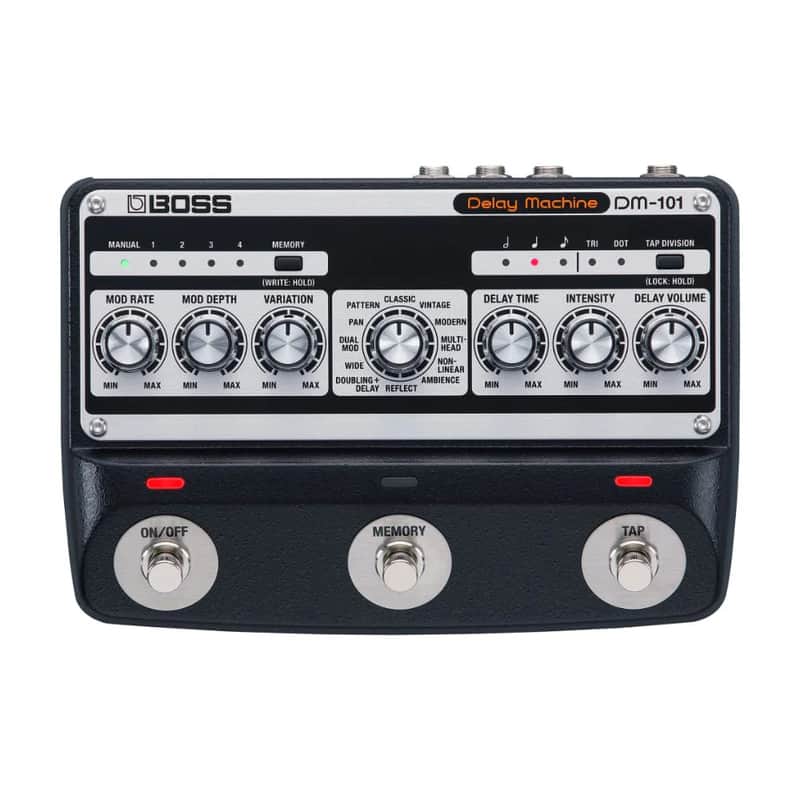

Boss - DM-101 - Delay Machine Pedal

Meet the Ultimate Analog Delay

Classic sound meets modern power with the DM-101 Delay Machine, the ultimate analog delay. Driven by eight BBDs under smart CPU control, this inspiring pedal delivers 12 unique modes, stereo operation, and a wide array of tonal colors, all while maintaining 100 percent analog signal processing throughout. And with 127 user memories, tap tempo, carryover, MIDI, and more, the DM-101 brings you the features and versatility of an advanced digital pedal—but with the vibrant, characterful sound that’s only possible with authentic analog BBD circuitry.

Features:

• The ultimate analog delay pedal realized with advanced BOSS technology
• Fully analog BBD audio circuitry shaped by precision digital CPU control
• Warm, saturated, and highly musical tone
• Twelve modes deliver a wide range of mono and stereo delay textures, created using up to eight internal BBDs
• Stereo output with flexible signal routing options
• Adjustable modulation rate and depth with dedicated knobs
• Variation knob for controlling multiple parameters that are unique to each mode
• Selectable carryover for maintaining delay trails when the effect is bypassed
• MIDI I/O on mini TRS connectors
• Tap tempo function and tap division switch for creating rhythmic delays
• Four onboard memories plus the current panel settings
• 127 user memories accessible via MIDI program change
• Expandable control via external footswitches, an expression pedal, or MIDI

Specifications:

• Pedal Type: Delay
• Analog/Digital: Analog (delay), Digital (control)
• Presets: 4 Onboard Presets, 127 Midi Presets
• Effects: Classic, Vintage, Modern, Multi-head, Non-linear, Ambience, Reflect, Doubling+Delay, Wide, Dual Mod, Pan, Pattern
• Max Delay Time: 1200ms (Mode Dependant)
• Tap Tempo: Yes
• Inputs: 1 x 1/4"
• Outputs: 2 x 1/4" (A/Mono, B)
• MIDI I/O: 2 x 1/8" TRS (In, Out)
• Other I/O: 1 x 1/4" TRS (Ctl 1, 2/expression)
• USB: 1 x Micro-B (program updates)
• Bypass Switching: Buffered Bypass
• Power Source: 9V DC Power Supply (included)
• Power Usage: 260 mA
• Height: 2.04"
• Width: 7.56"
• Depth: 5.23"
• Weight: 1.87 lbs.
• Manufacturer Part Number: DM-101
