Used RADIAL Relay XO Remote Output Switcher

Radial Engineering -Relay Xo - Active Output Switcher

Balanced Remote Output Switcher
The Relay Xo is an audio switcher designed to route balanced mic or line-level signals between two separate destinations, with the ability to be operated remotely with an optional JR-1 footswitch.

Features:

• Balanced audio output switcher
• Perfect for rerouting a vocalist's mic between main PA and monitor systems without pops or clicks
• Link port for using multiple Relay Xo switchers simultaneously
• Add hands-free control with a Radial JR-1 footswitch (sold separately)
• Handles mic- or line-level signals with no loss of sound quality

Specifications:

• Type: Active Output Switcher
• Input Channels: 1 x Mono
• Output Channels: 2 x Mono

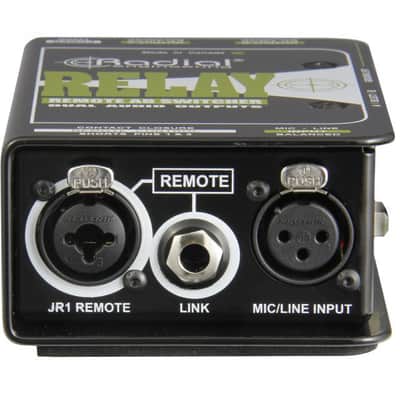

• Inputs: 2 x XLR-1/4" combo (mic/line), 1 x XLR (mic/line)
• Outputs: 2 x XLR (main)

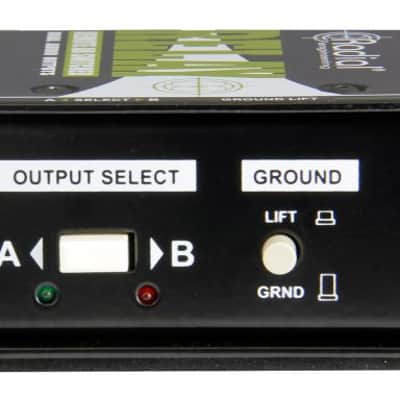

• Features: Output Select Switch, Ground Lift
• Power Source: 15V DC, 400mA Power Supply (included)
• Height: 3"
• Width: 4"
• Depth: 6.5"
• Weight: 1.4 lbs.
• Manufacturer Part Number: R800 8030
