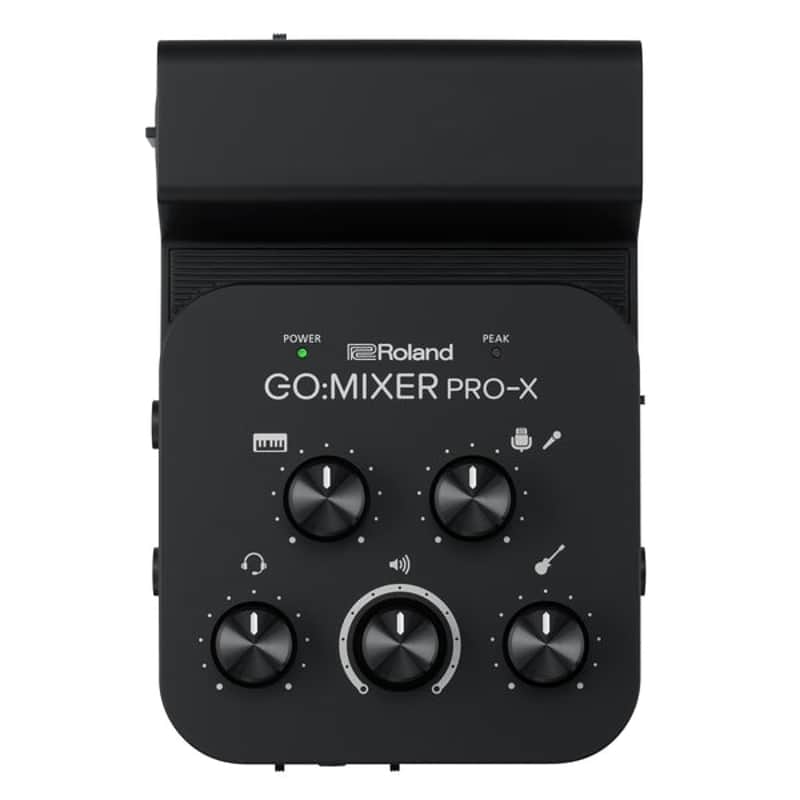

The Roland GO:MIXER PRO-X is a palm-sized audio mixer that lets you connect and mix up to seven sources into your smartphone or tablet for music videos, livestreams, and podcasts. It features an XLR combo input with 48V phantom power, a dedicated high-impedance guitar/bass input with pad switch, stereo instrument inputs, and two stereo line inputs.

Features

• 11 input channels, 3 output channels
• Combo XLR/TRS mic input with 48V phantom power
• Dedicated guitar/bass input (high impedance) with input attenuator switch
• Stereo instrument inputs (1/4" L/Mono, R)
• Two stereo line inputs (3.5mm TRS)
• Headphone/headset output with headset mic support
• Loop Back function for mixing backing tracks from your device
• Works as an audio interface for mobile music apps (Zenbeats, GarageBand)
• Supports Roland 4XCAMERA and Virtual Stage Camera apps

Connectivity

• MIC jack: Combo XLR / 1/4" TRS (phantom 48V, 6 mA max)
• GUITAR/BASS jack: 1/4" (high impedance)
• INSTRUMENT jacks: 1/4" L/Mono, R
• LINE IN 1 and LINE IN 2: 3.5mm stereo
• SMARTPHONE IN/OUT: 3.5mm TRRS (CTIA)
• HEADPHONE/HEADSET: 3.5mm stereo (CTIA)
• USB port: Micro-B

Specifications

• Power: USB bus power or 4x AAA batteries (approx. 4 hours)
• Current draw: 170 mA
• Dimensions: 104 x 155 x 41 mm (4-1/8" x 6-1/8" x 1-5/8")
• Weight (excluding batteries/cables): 215 g (8 oz)

In the Box

• GO:MIXER PRO-X unit
• Lightning to USB Micro-B cable
• USB Type-C to USB Micro-B cable
• 3.5mm TRRS audio cable
