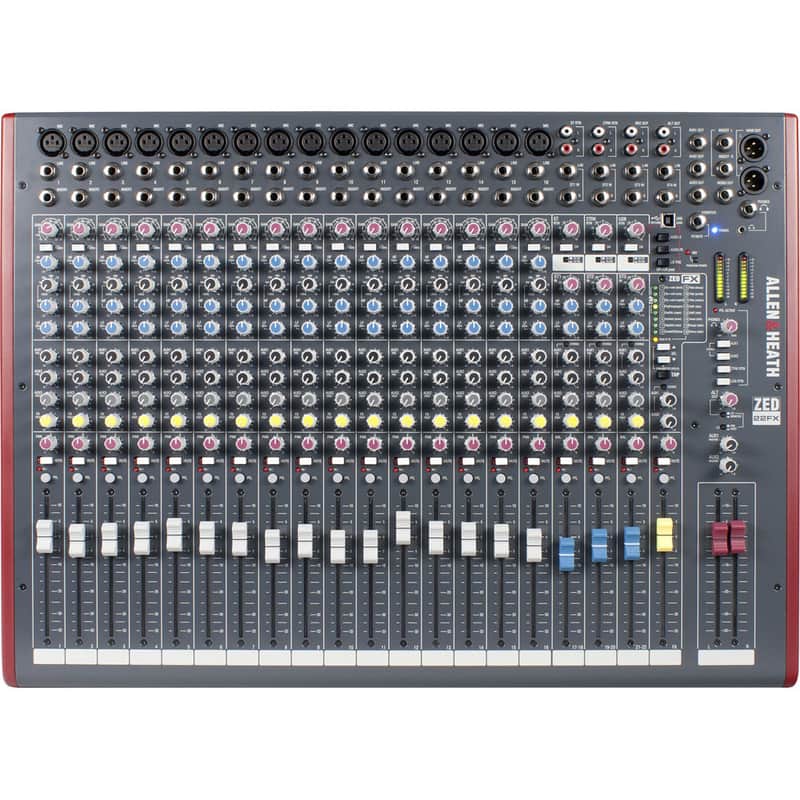

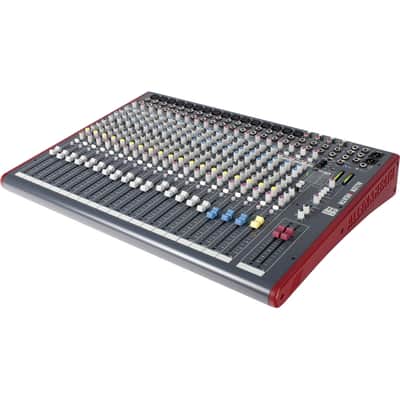

The Allen & Heath ZED-22FX is a large-format 2-bus live sound mixer with 16 mono mic/line channels, 3 stereo line channels, 16 built-in effects, and 22 x 100mm ALPS faders. Featuring DuoPre preamps with 69dB gain range, 3-band EQ with sweepable MusiQ mid, 4 aux sends (including a dedicated internal FX send, with aux 1&2 configurable as stereo), channel inserts on all 16 mono channels, and stereo USB, the ZED-22FX is built for live events requiring substantial channel count with onboard processing.

Inputs and Outputs

• 16 mono mic/line channels with XLR inputs (DuoPre, 69dB gain)
• 3 stereo line channels (1/4" TRS, some with RCA)
• 4 aux sends (2 pre-fade, 1 post-fade, 1 internal FX post-fade; aux 1&2 configurable as stereo)
• Channel inserts on all 16 mono channels and main stereo bus
• Main stereo XLR L/R, 1/4" mono output
• RCA alt outputs, RCA record outputs
• 1/4" + 3.5mm headphone outputs
• +48V global phantom power

EQ and Processing

• 3-band EQ with sweepable mid (MusiQ) on mono channels 1-16
• 2-band EQ on stereo channels
• 16 built-in effects: reverbs, delays, chorus, flange

Recording

• 2-in / 2-out USB 1.1 audio interface
• 16-bit resolution, 32/44.1/48 kHz sample rate
• Sonar LE included

Specifications

• Faders: 22 x 100mm ALPS faders
• Metering: 12-segment L/R peak meters
• Dimensions: 645 x 98 x 465 mm (25.4" x 3.9" x 18.3") W x H x D
• Weight: 10.5 kg / 23.1 lbs
• Rack Mount: Rack ears available separately

In the Box

• ZED-22FX Mixer
• Mains Lead
• Type A-B USB Lead
• User Guide
• Sonar LE Install CD
