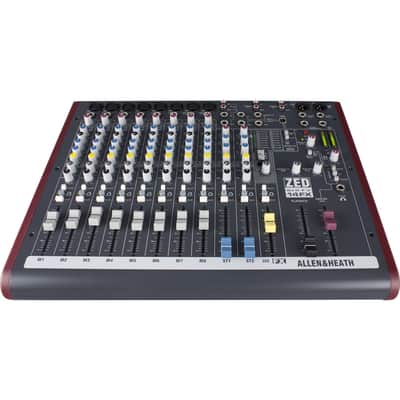

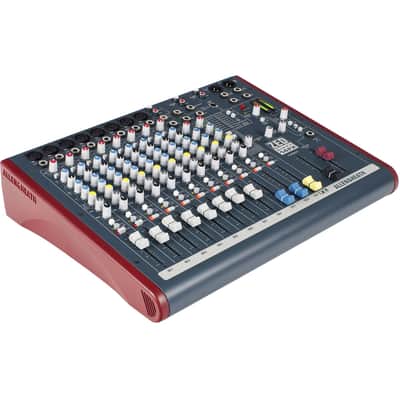

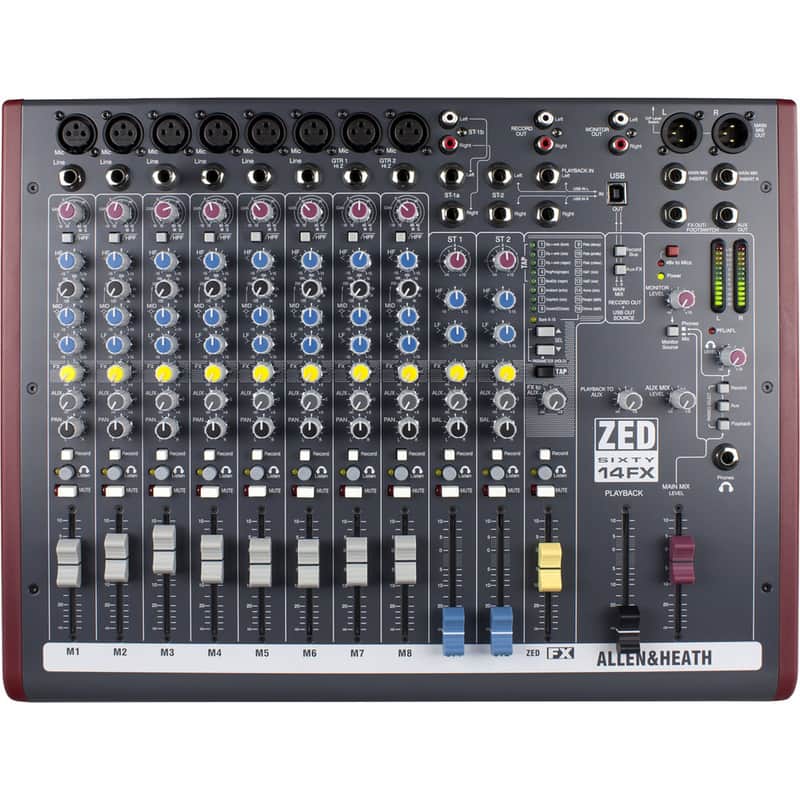

The Allen & Heath ZED60-14FX expands the 60mm-fader ZED60 platform to 8 mono mic/line channels and 2 stereo line channels. With DuoPre preamps on all 8 mono inputs, Hi-Z guitar inputs on channels 7-8, 3-band EQ with sweepable MusiQ mid, 16 built-in effects, 13 x 60mm faders, and a stereo USB interface, the ZED60-14FX provides substantial channel count with professional fader control in a rack-mountable format.

Inputs and Outputs

• 8 mono mic/line channels with XLR inputs (DuoPre preamps)
• 2 stereo line channels (ST1: 1/4" TRS + RCA, ST2: 1/4" TRS)
• Hi-Z instrument inputs on channels 7-8 (Class A FET high impedance)
• USB stereo return channel
• 2 aux sends (1 pre-fade AUX, 1 post-fade FX)
• Main stereo output on XLR L/R with insert point
• RCA record outputs, RCA monitor outputs
• 1/4" FX output, 1/4" AUX output
• Stereo bus insert (send/return)
• 1/4" headphone output
• +48V global phantom power

EQ and Processing

• 3-band EQ with sweepable mid (MusiQ) on mono channels
• 2-band EQ on stereo channels
• 16 built-in effects: reverbs, delays, chorus, flange, doubler

Recording

• 2-in / 2-out USB 1.1 audio interface
• 16-bit resolution, 32/44.1/48 kHz sample rate

Specifications

• Faders: 13 x 60mm professional faders
• Metering: 12-segment L/R peak meters
• Dimensions: 440 x 95 x 346 mm (17.3" x 3.7" x 13.6") W x H x D
• Weight: 6.2 kg / 13.6 lbs
• Rack Mount: Optional (ZED60-14FX-RK19)

In the Box

• ZED60-14FX Mixer
• Power Cable
• USB Cable
• User Guide
