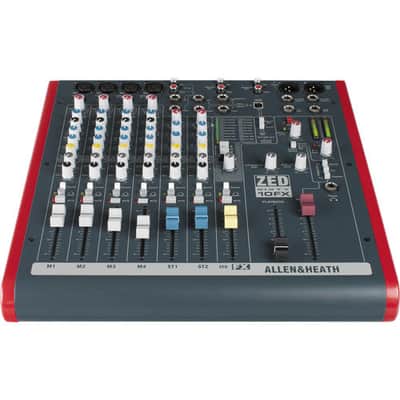

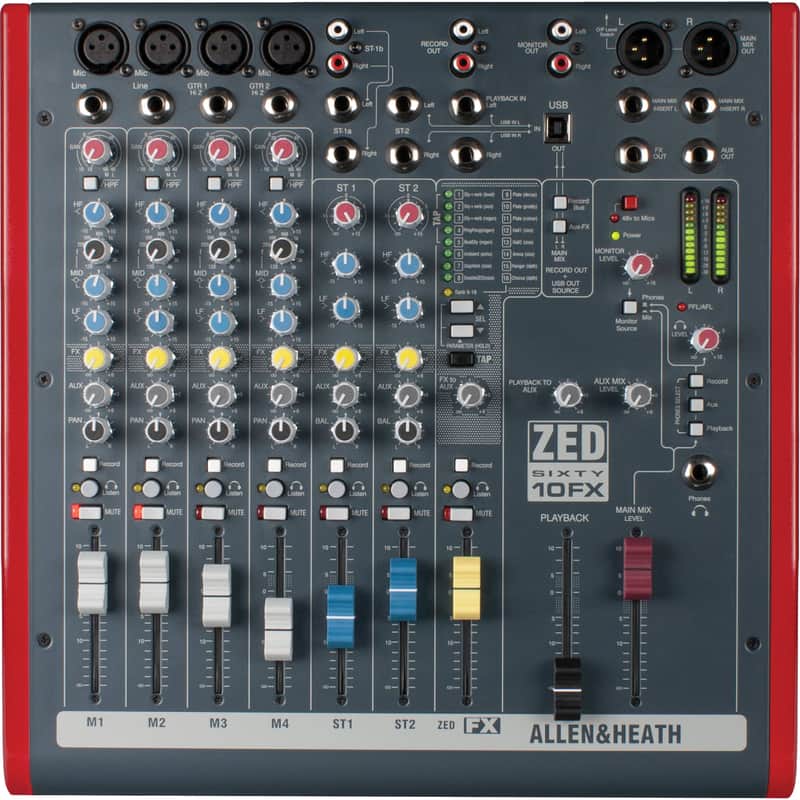

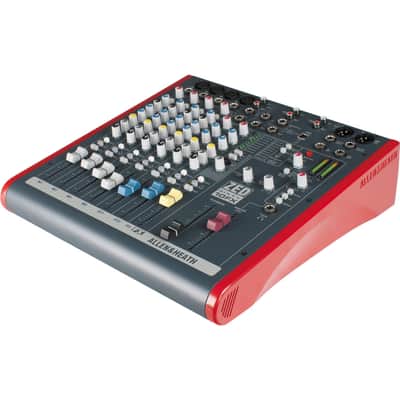

The Allen & Heath ZED60-10FX delivers the same audio specifications as the ZED-10FX but replaces rotary level controls with professional 60mm faders for more precise and intuitive level management. With 4 mono mic/line DuoPre channels, 2 stereo line channels, Hi-Z guitar inputs, 3-band EQ with sweepable MusiQ mid, 16 built-in effects, and a stereo USB interface, the ZED60-10FX bridges the gap between compact portability and fader-based workflow.

Inputs and Outputs

• 4 mono mic/line channels with XLR inputs (DuoPre preamps)
• 2 stereo line channels (1/4" TRS, ST1 also accepts RCA)
• Hi-Z instrument inputs on channels 3-4 (Class A FET high impedance)
• USB stereo return channel
• 2 aux sends (1 pre-fade AUX, 1 post-fade FX)
• Main stereo output on XLR L/R with insert point
• RCA record outputs, RCA monitor outputs
• 1/4" FX output, 1/4" AUX output
• Stereo bus insert (send/return)
• 1/4" headphone output
• +48V global phantom power

EQ and Processing

• 3-band EQ with sweepable mid (MusiQ) on mono channels
• 2-band EQ on stereo channels
• 16 built-in effects: reverbs, delays, chorus, flange, doubler

Recording

• 2-in / 2-out USB 1.1 audio interface
• 16-bit resolution, 32/44.1/48 kHz sample rate

Specifications

• Faders: 60 mm professional faders on all channels
• Metering: 12-segment L/R peak meters
• Dimensions: 336 x 95 x 346 mm (13.2" x 3.7" x 13.6") W x H x D
• Weight: 3.8 kg / 8.4 lbs
• Rack Mount: Optional (ZED60-10FX-RK19)

In the Box

• ZED60-10FX Mixer
• Power Cable
• USB Cable
• User Guide
