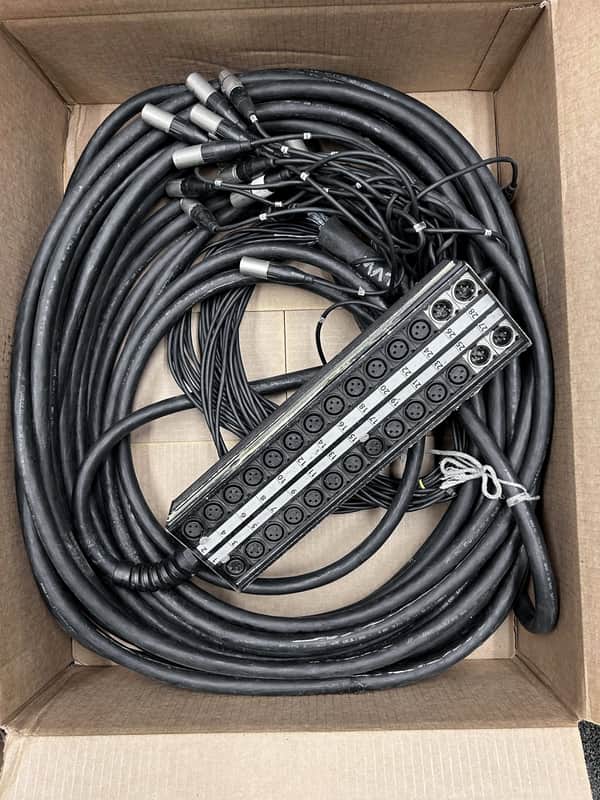

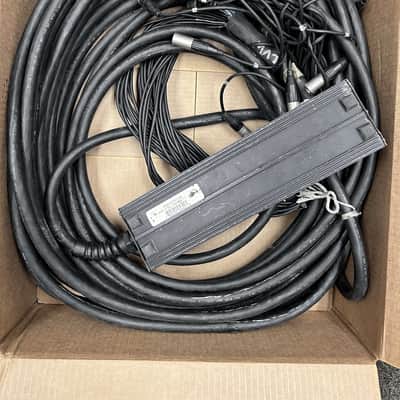

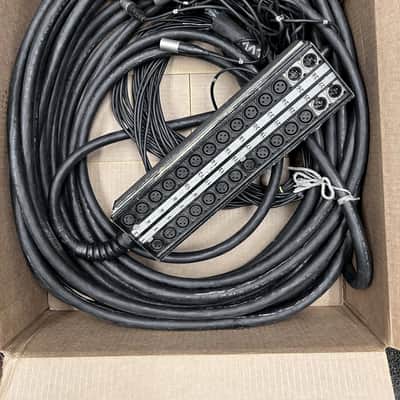

Pro Co SMA2404FBQ-100 StageMaster 24x4 Stage Snake with 1/4 Inches Returns - 100 Feet - m3mg

Signs of heavy use. Selling as is. Still in good working condition.

Pro Co StageMaster SMA2404FBQ-100 – 24×4 Channel Stage Snake, 100’

Model: SMA2404FBQ-100

Brand: Pro Co

This StageMaster stage snake is a professional multipair audio cable assembly designed for fixed installations or light touring and stage use. The SMA2404FBQ-100 features 24 mic (XLR) channels for sends and 4 stereo (¼″ TRS) returns, housed in a rugged aluminum stage box and built with high-durability shielded cable. The 100 ft (30.48 m) trunk length allows it to serve as a central hub between stage boxes and mixing locations, providing a flexible and reliable multi-channel signal path for live sound, production rigs, houses of worship, theaters, and installation use.

The unit includes a low-profile, extruded aluminum stage box designed to protect connectors and provide excellent shielding. Each fan-out is color coded and individually wrapped for clarity, and the cable jacket is tough yet flexible for ease of handling on stage or in installation runs. The design incorporates full foil/ drain shielding per conductor pair and 24 AWG cabling for optimized audio performance and long-term reliability.

Key Specifications

• Channels: 24 mic sends + 4 dedicated returns (¼″ TRS)
• Cable length: 100’ (30.48 m) trunk + fan-out tails of 3–4’ each
• Send connectors (stagebox end): 24 × XLR 3-pin Female + 4 × ¼″ TRS Female (returns)
• Fan-out end: 24 × XLR 3-pin Male (sends) + 4 × ¼″ TRS Male (returns)
• Cable construction: Individually shielded pairs (100% foil + drain) in Duralink® cable system
• Conductor gauge: 24 AWG
• Stage box construction: Extruded aluminum 16-gauge connector plate, low-profile design
• Jacket: Durable PVC outer jacket, flexible for coiling and deployment
• Intended use: Stage snake / multipair audio distribution for live sound, fixed install, portable stage rigs
• Package shipping weight: ~32.5 lb; box dimensions approx. 20.5″ × 20.38″ × 8″
