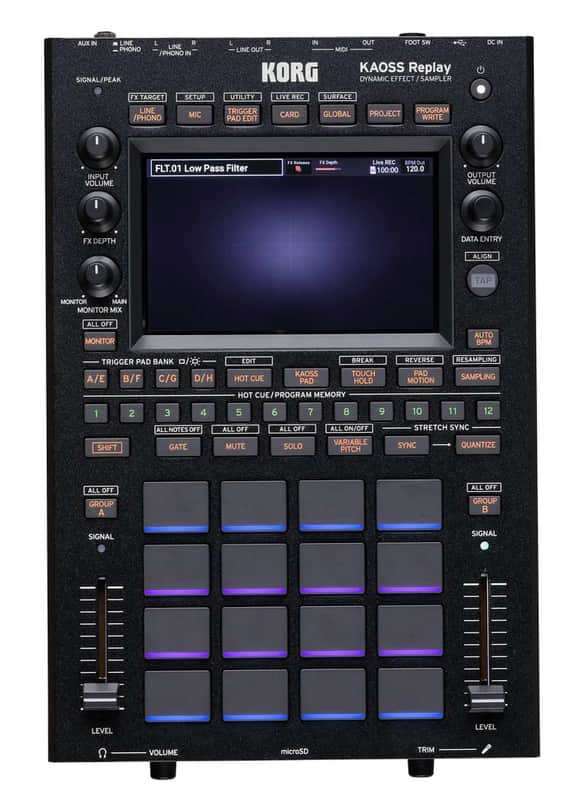

KAOSS Replay is a versatile performance tool with KAOSS Pad, advanced sample playback, and 128 FX. It simplifies live performances with 16 pads, BPM detection, and a 5-inch touchscreen. This allows KAOSS Replay to function as a portable DJ rig, MIDI controller, and even a USB audio interface in the studio or while live streaming.

SPECIFICATIONS:

Kaoss Pad Effect
128 Types

Effects Exclusive For Microphone
TONE, DELAY, REVERB

Max. number of projects
100

Trigger pad
16 (supports velocity) × eight banks

Hot cue
Max. 12 (per trigger pad)

Number of simultaneous plays
16

Audio Specifications
Linear PCM (48 kHz/16 bits)

Recording Functions
Sampling, resampling
* Max. 30 min.
LIVE REC
* Max. 100 min.

Audio Input
LINE/PHONO IN jack: RCA pin jack (Select LINE or PHONO.)
PHONO GAIN switch (LO/HI)
MIC IN jack: Standard phone jack (φ 6.3 mm, monaural TS)
* Exclusive for Dynamic Microphone
AUX IN jack: Stereo mini jack (φ 3.5 mm)
* Mix directly to LINE OUT.

Audio Output
LINE OUT jack: RCA pin jack
HEADPHONES jack: Standard stereo phone jack (φ 6.3 mm)

Controller Input
FOOT SW jack: Standard phone jack (φ 6.3 mm, TS)
* Connect the optional PS-1 or PS-3.

USB Jack
microB (MIDI, Audio (IN x 2ch, OUT x 34ch (48 kHz/16 bits, You need to install the KORG KaossReplay Audio Driver in the Windows environment.)))

MIDI Jack
IN/OUT (DIN 5pin) and the MIDI function are exclusive to the USB jack (IN x 1 port, OUT x 1 port).

External Storage
microSD card, microSDHC card (32GB Max)
* Class10 or higher, UHS-I (U1) recommended (However, this does not guarantee operations with all cards.)

Power Supply
DC 5V/3A

Accessories
Owner's manual (Quick Start Guide)
AC adapter
USB cable (Type A to microB, 1 m)
microSDHC Card (inserted into the microSD card slot of the main body at time of shipment.)

B-stock products sold by Korg USA may have minor cosmetic imperfections and may show slight signs of use but are in perfect working condition. The product will be packaged with all factory-included accessories/power supplies. B-stock products have been repaired, if necessary, and QC’d to manufacturers specifications and carry the same manufacturer’s warranty as a new product. B-stock products may not include owner’s manuals (downloadable on-line) and may not be in the original packaging. We do not offer specific notes or images on our B-stock products as they are packaged before they are available in our inventory, as mentioned. Our B-stock items come with a 7-day return period (beginning on the respective item's date of delivery) which should provide ample time to check out the product. Additional details regarding our returns/refund policy are linked in the product listing.
