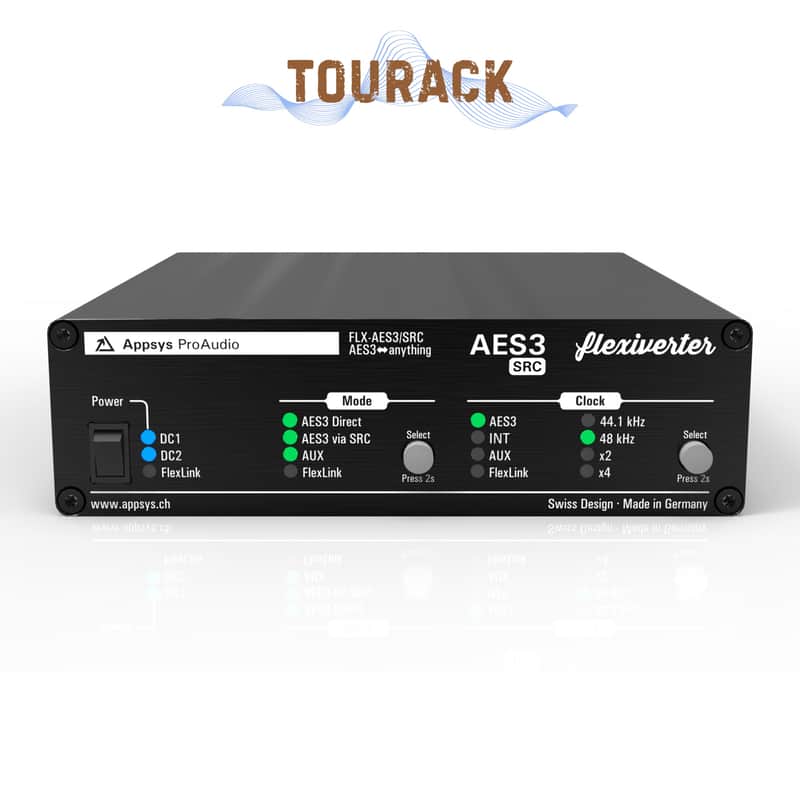

Appsys FLX-AES3/SRC – 16×16 AES3 Converter with Built-In Sample Rate Conversion

The Appsys FLX-AES3/SRC is a high-performance 16×16-channel AES/EBU digital audio converter designed for uncompromising audio quality and integration flexibility. Featuring individual sample rate converters (SRCs) on every input and full FlexLink connectivity, it provides the perfect bridge between multiple digital clock domains and networked systems such as the Appsys MVR-MKII.

Built with Swiss precision and German engineering, the FLX-AES3/SRC ensures pristine signal integrity, seamless interoperability, and unmatched reliability for professional studios, broadcasters, and live-sound infrastructures.

Flexible, High-Precision AES3 Conversion

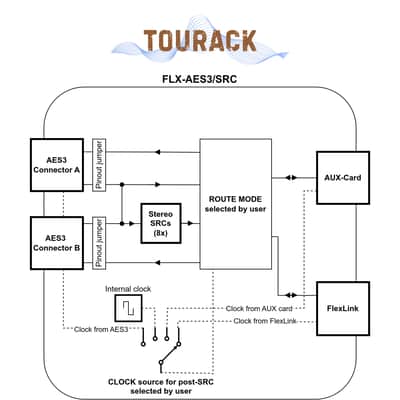

Each of the 16 AES/EBU inputs can be routed through dedicated SRCs, converting up to 8 independent clock domains into a unified house clock. These ultra-high-performance SRCs achieve >120 dB THD+N and >134 dB dynamic range, ensuring transparent conversion and exceptional sonic purity.

The unit supports arbitrary sample rates from 44.1 kHz to 192 kHz, and each DB25 connector can be configured individually for Tascam or Yamaha pinouts, providing total integration flexibility.

Advanced Connectivity

• 16×16 AES3 I/O, transformer-isolated
• AUX expansion slot for additional format conversion (e.g., MADI, Dante, ADAT)
• FlexLink port for ultra-low-latency, bi-directional 192-channel audio, clock, and power transfer
• Web-based control interface (no software required) or UART command line for remote configuration
• Triple-redundant power supply for uninterrupted operation

Expanded Capability with the MVR-MKII

When connected to the Appsys MVR-MKII Multiverter, the FLX-AES3/SRC becomes part of a powerful routing ecosystem, offering:

• True channel-by-channel routing between all connected interfaces
• Real-time sample rate conversion across multiple digital formats
• AES3-to-anything / anything-to-AES3 functionality with complete format flexibility

Key Features

• 16×16 channels of AES/EBU, fully transformer-isolated
• 8 individual high-end SRCs for independent input clocks
• Converts multiple clock domains to a unified master clock
• Supports 44.1–192 kHz operation
• AUX port for additional format expansion
• FlexLink port for 192-channel interconnection
• Selectable DB25 pinouts (Tascam / Yamaha) per connector
• Triple-redundant PSU design
• Web or UART remote control interface

Compact, Reliable, and Future-Ready

The Appsys FLX-AES3/SRC is more than just an AES/EBU converter, it’s a flexible sample rate and format bridge built for the next generation of digital infrastructures. Whether used standalone or as part of a larger MVR system, it guarantees seamless digital integration, total control, and bulletproof reliability in every professional environment.
