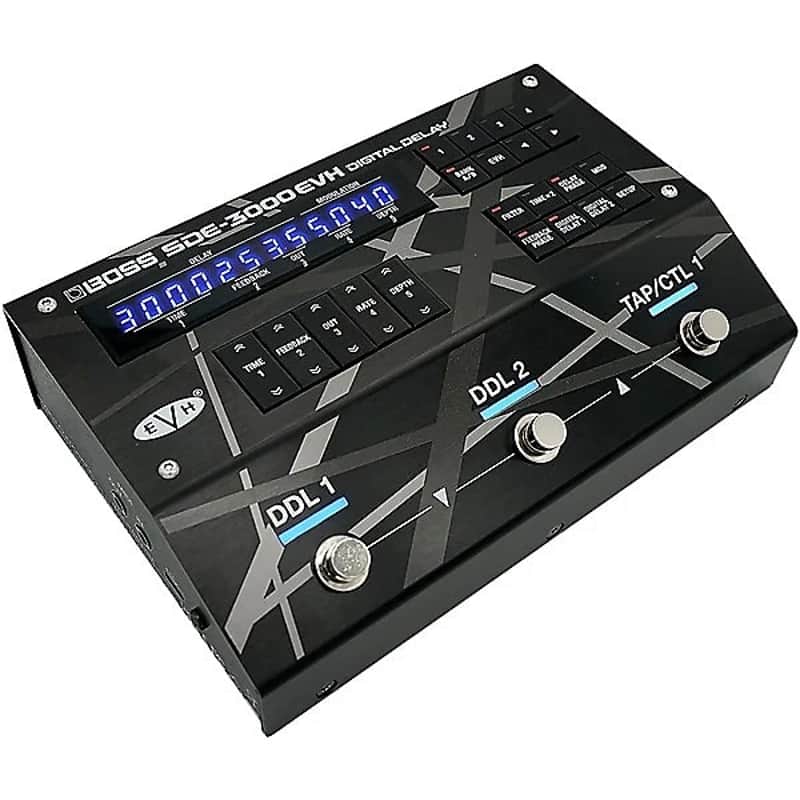

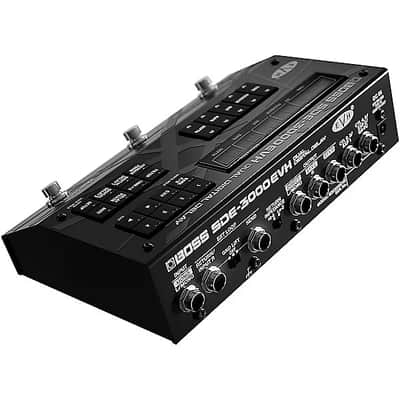

The BOSS SDE-3000 EVH Digital Delay effects pedal is a faithful reproduction of the late Eddie Van Halen’s unique dual Roland SDE-3000 setup. The BOSS SDE-3000 EVH is complete with iconic EVH stripes and loaded with his presets. Features include one input and three outputs for a unique three-amp setup and selectable Return Impedance for adequate matching.

It also comes with all the features of the SDE-3000D, including two legendary stereo SDE-3000s in a compact floor pedal format. The BOSS SDE-3000 EVH also features widely adjustable delay time (0–3,000ms), characteristic modulation, and phase switches for Delay and Delay feedback sound. A stereo in/out configuration is also possible, plus TRS MIDI in/out. Additional features include switchable internal series, and parallel chains and 100 memories to save and quickly recall, plus a unique EVH button to recall the EVH memories. The CTL1 footswitch works as Tap Tempo, Hold, Momentary and more. You can also connect up to four footswitches, two Expression pedals or GA-FC foot controller (sold separately).

The SDE-3000 EVH digital delay includes an AC adapter (PSB-1U + AC Cord Set), startup guide, leaflet on how to use the unit safely and four rubber feet.

Features

• Faithful reproduction of Eddie Van Halen’s unique dual Roland SDE-3000 setup
• One input and three outputs for unique three-amp setup
• Selectable Return Impedance for adequate matching
• All the features of the SDE-3000D

• Sampling Frequency: 48kHz
• AD Conversion: 24 bits + AF (Adaptive Focus) method—a proprietary method from Roland and BOSS that improves the signal-to-noise (SN) ratio of the AD and DA converters.
• DA Conversion: 32 bits
• Processing: 32-bit floating point
• Effects: SDE-3000 Stereo Delay x2, Noise Suppressor, Foot Volume
• Memories: 100
• Nominal Input Level: NPUT MONO: -10 dBu, INPUT L/MONO: -10 dBu, RETURN/INPUT R: -10 dBu
• Maximum Input Level: INPUT MONO: +12 dBu, INPUT L/MONO: +12 dBu, RETURN/INPUT R: +12 dBu
• Input Impedance: INPUT MONO: 1 mohm, INPUT L/MONO: 1 mohm, RETURN/INPUT R: 1 mohm or 180 kohm (switching)
• Nominal Output Level: OUTPUT (DIRECT, EFX L, EFX R): -10 dBu, OUTPUT (L/MONO, R): -10 dBu, SEND: -10 dBu
• Output Impedance: OUTPUT (DIRECT, EFX L, EFX R): 1 kohm, OUTPUT (L/MONO, R): 1 kohm, SEND: 1 kohm
• Recommended Load Impedance: OUTPUT (DIRECT, EFX L, EFX R): 10 kohms or greater, OUTPUT (L/MONO, R): 10 kohms or greater, SEND: 10 kohms or greater
• Controls: TIME button, FEEDBACK button, OUT button, RATE button, DEPTH button, 1–4 buttons, BANK A/B button, EVH button, LEFT button, RIGHT button, FILTER button, TIMEx2 button, DELAY PHASE button, MOD button, FEEDBACK PHASE button, DIGITAL DELAY1 button, DIGITAL DELAY2 button, SETUP button, DDL1 switch, DDL2 switch, TAP/CTL1 switch, GND LIFT switch, RETURN IMPEDANCE switch
• Display: 7 segments, 12 digits LED
• Connectors: INPUT MONO jack, INPUT L/MONO jack, OUTPUT (DIRECT, EFX L, EFX R) jacks, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN/INPUT R jack: 1/4" phone type,
• CTL2,3/EXP1 jack, CTL4,5/EXP2/GA-FC jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: Stereo miniature phone type, USB port: USB Type-C(R), DC IN jack
• Power Supply: AC adapter included
• Current Draw: 450 mA
